Product Descriptions

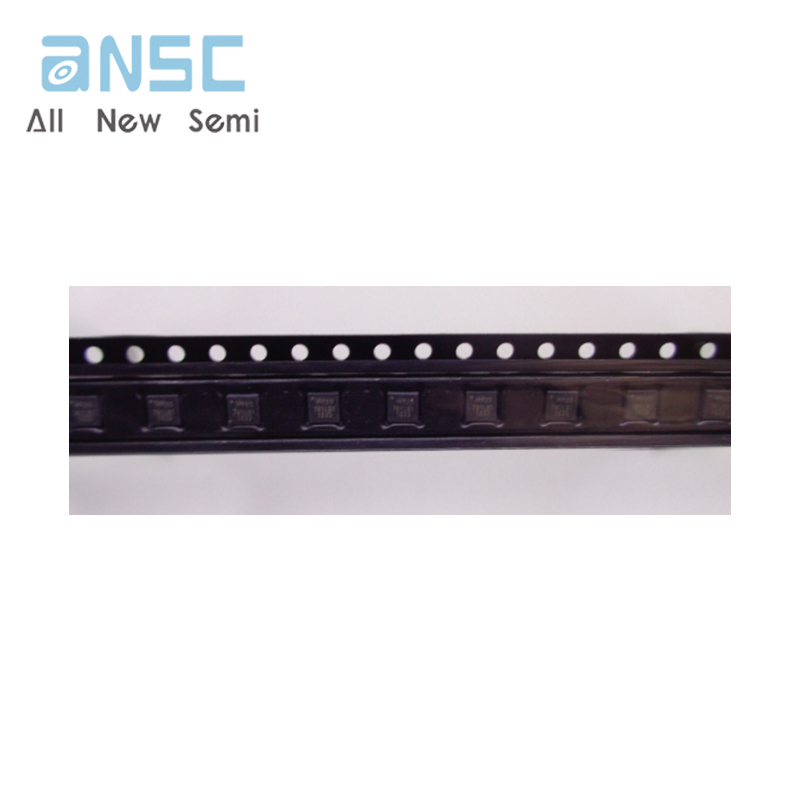

MPU-9250 is a multi-chip module (MCM) consisting of two dies integrated into a single QFN package. One die houses the 3-Axis gyroscope

and the 3-Axis accelerometer. The other die houses the AK8963 3-Axis magnetometer from Asahi Kasei Microdevices Corporation. Hence, the

MPU-9250 is a 9-axis MotionTracking device that combines a 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer and a Digital Motion

Processor? (DMP) all in a small 3x3x1mm package available as a pin-compatible upgrade from the MPU6515. With its dedicated I2C sensor

bus, the MPU-9250 directly provides complete 9-axis MotionFusion?output.

The MPU-9250 MotionTracking device, with its 9-axis integration, on-chip MotionFusion?, and runtime calibration firmware, enables

manufacturers to eliminate the costly and complex selection, qualification, and system level integration of discrete devices, guaranteeing

optimal motion performance for consumers.

MPU-9250 is also designed to interface with multiple non-inertial digital sensors, such as pressure sensors, on its auxiliary I2C port.

MPU-9250 features three 16-bit analog-to-digital converters (ADCs) for digitizing the gyroscope outputs, three 16-bit ADCs for digitizing the

accelerometer outputs, and three 16-bit ADCs for digitizing the magnetometer outputs. For precision tracking of both fast and slow motions,

the parts feature a user-programmable gyroscope full-scale range of ±250, ±500, ±1000, and ±2000°/sec (dps), a user-programmable

accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g, and a magnetometer full-scale range of ±4800μT.

Other industry-leading features include programmable digital filters, a precision clock with 1% drift from -40°C to 85°C, an embedded

temperature sensor, and programmable interrupts. The device features I2C and SPI serial interfaces, a VDD operating range of 2.4V to 3.6V, and

a separate digital IO supply, VDDIO from 1.71V to VDD.

Communication with all registers of the device is performed using either I2C at 400kHz or SPI at 1MHz. For applications requiring faster

communications, the sensor and interrupt registers may be read using SPI at 20MHz.

By leveraging its patented and volume-proven CMOS-MEMS fabrication platform, which integrates MEMS wafers with companion CMOS

electronics through wafer-level bonding, InvenSense has driven the package size down to a footprint and thickness of 3x3x1mm, to provide a

very small yet high performance low cost package. The device provides high robustness by supporting 10,000g shock reliability.

? Location based services, points of interest, and dead reckoning

? Handset and portable gaming

? Motion-based game controllers

? 3D remote controls for Internet connected DTVs and set top boxes, 3D mice

? Wearable sensors for health, fitness and sports

MPU-9250 2
