Product Descriptions

The BMI160 is a highly integrated, low power inertial measurement unit (IMU) that provides precise acceleration and angular rate (gyroscopic) measurement.

The BMI160 integrates:

? 16 bit digital, triaxial accelerometer

? 16 bit digital, triaxial gyroscope

Product Features

? High performance accelerometer and gyroscope (hardware synchronized)

? Very low power consumption: typ. 925 μA (accelerometer and gyroscope in full operation)

? Android Lollipop compatible: significant motion and step detector / step counter (5 μA each)

? Very small 2.5 x 3.0 mm2 footprint, height 0.83 mm

? Built-in power management unit (PMU) for advanced power management

? Power saving with fast start-up mode of gyroscope

? Wide power supply range: 1.71V … 3.6V

? Allocatable FIFO buffer of 1024 bytes (capable of handling external sensor data)

? Hardware sensor time-stamps for accurate sensor data fusion

? Integrated interrupts for enhanced autonomous motion detection

? Flexible digital primary interface to connect to host over I2C or SPI

? Extended I2C mode with clock frequencies up to 1 MHz

? Additional secondary high speed interface for OIS application

? Capable of handling external sensor data (e.g. geomagnetic or barometric pressure sensors by Bosch Sensortec)

Product Applications

? Augmented Reality

? Indoor navigation

? 3D scanning / indoor mapping

? Advanced gesture recognition

? Immersive gaming

? 9-axis motion detection

? Air mouse applications and pointers

? Pedometer / step counting

? Advanced system power management for mobile applications

? Optical image stabilization of camera modules

? Free-fall detection and warranty logging

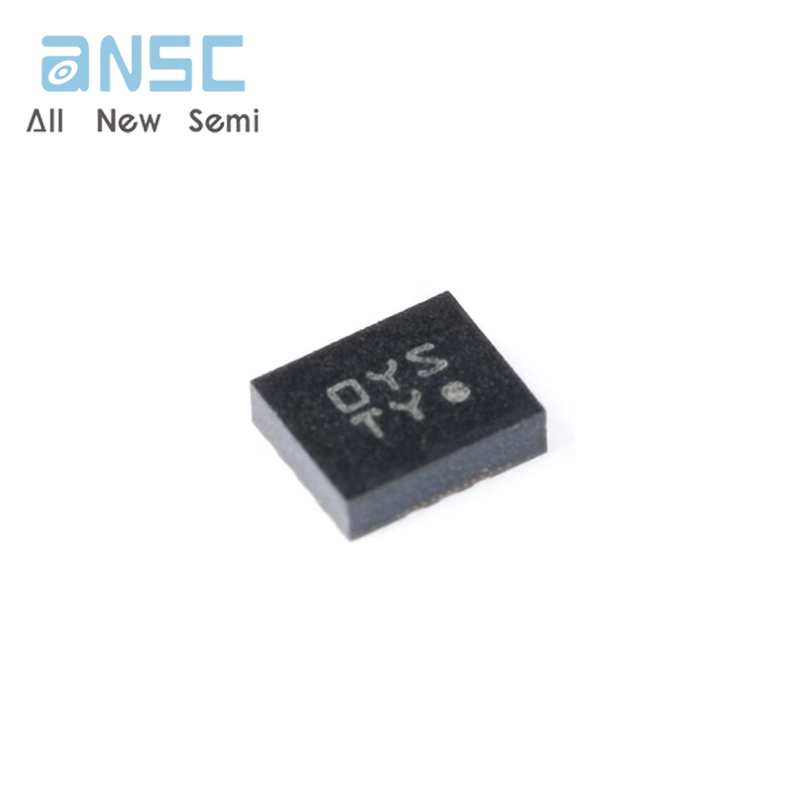

Product Images
