Product Details
|

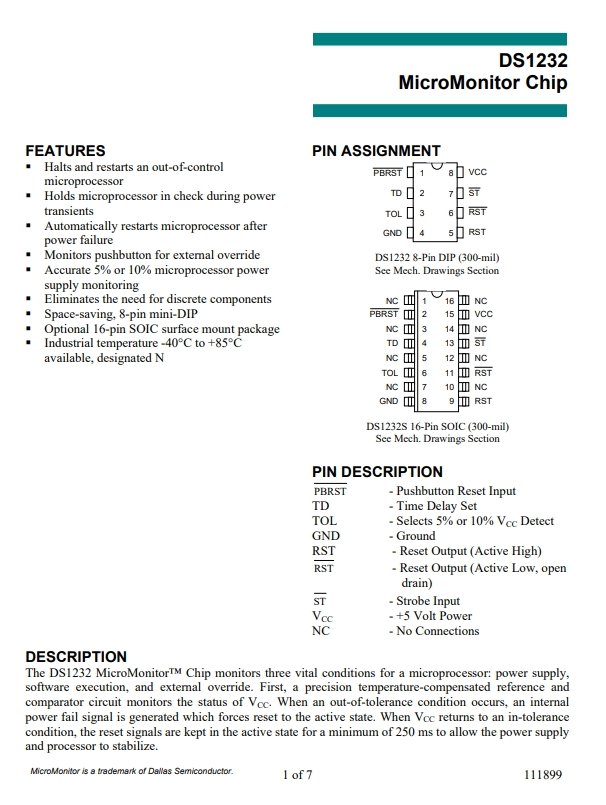

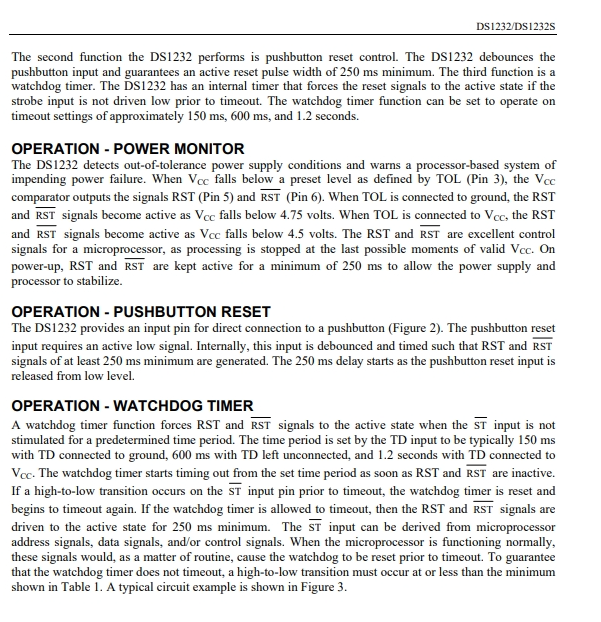

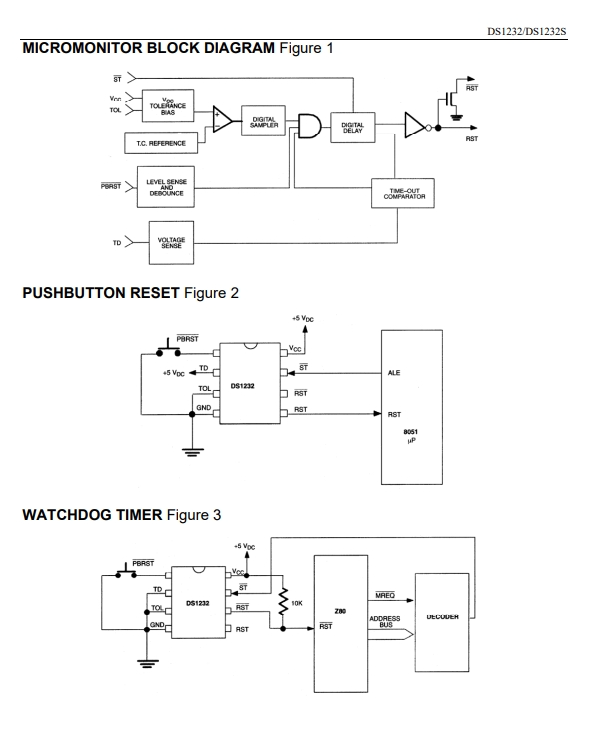

DESCRIPTION The DS1232 MicroMonitor Chip monitors three vital conditions for a microprocessor: power supply, software execution, and external override. First, a precision temperature-compensated reference and comparator circuit monitors the status of VCC. When an out-of-tolerance condition occurs, an internal power fail signal is generated which forces reset to the active state. FEATURES ■ Halts and restarts an out-of-control microprocessor ■ Holds microprocessor in check during power transients ■ Automatically restarts microprocessor after power failure ■ Monitors pushbutton for external override ■ Accurate 5% or 10% microprocessor power supply monitoring ■ Eliminates the need for discrete components ■ Space-saving, 8-pin mini-DIP ■ Optional 16-pin SOIC surface mount package ■ Industrial temperature -40°C to +85°C available, designated N |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- DS1232N+ |
| Ihs Manufacturer | Original |
| Part Package Code | 8-PDIP-300_MIL |
| Package Description | DIP, DIP8,.3 |
| Pin Count | 8 |
| Manufacturer Package Code | 8-PDIP-300_MIL |
| Additional Feature | PUSHBUTTON RESET OPTION |
| Adjustable Threshold | NO |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC |
| Length | 9.375 mm |
| Moisture Sensitivity Level | 1 |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.572 mm |
| Supply Current-Max (Isup) | 2 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Threshold Voltage-Nom | +4.37V |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 7.62 mm |

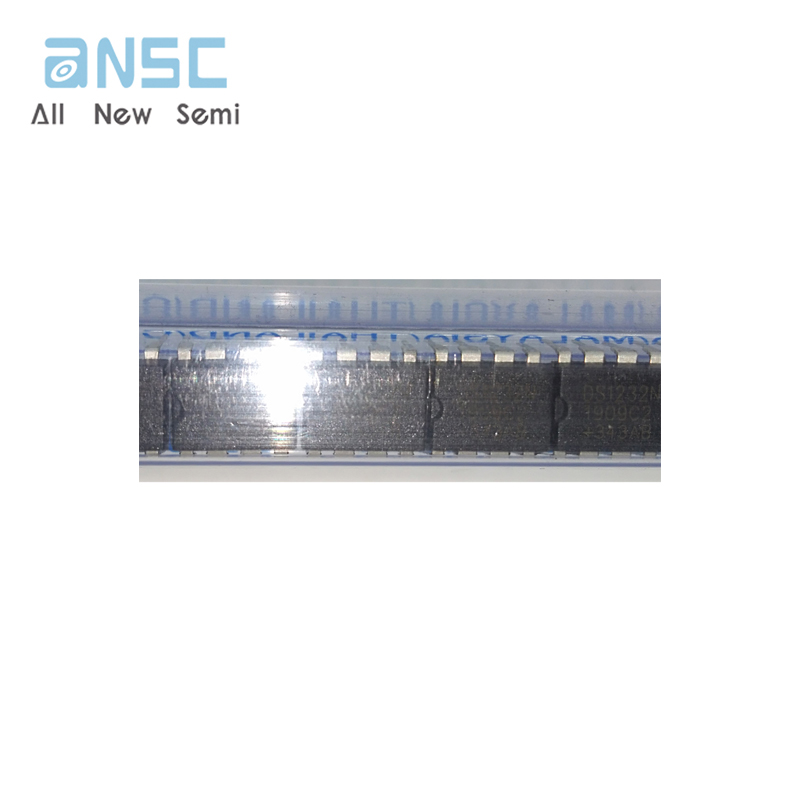

Product Photos
