Product Details
|
Description The CXP740056/740096/740010 is a CMOS 8-bit microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time-base timer, capture timer/counter, remote control receive circuit, PWM output, and the like besides the basic configurations of 8-bit CPU, ROM, RAM, and I/O port. The CXP740056/740096/740010 also provides the sleep/stop functions that enables lower power consumption. Features ? A wide instruction set (211 instructions) which covers various types of data. — 16-bit arithmetic/multiplication and division/Boolean bit operation instructions ? Minimum instruction cycle 167ns at 24MHz operation (4.5 to 5.5V) 333ns at 12MHz operation (2.7 to 5.5V) 122μs at 32kHz operation (2.7 to 5.5V) ? Incorporated ROM capacity 56K bytes (CXP740056) 96K bytes (CXP740096) 120K bytes (CXP740010) ? Incorporated RAM capacity 4096 bytes ? Peripheral functions — A/D converter 8 bits, 8 channels, successive approximation method (Conversion time 10.3μs at 24MHz) — Serial interface Srart-stop synchronization (UART), 1 channel Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 2 channels 8-bit clock syncronization (MSB/LSB first selectable), 1 channel — Timer 8-bit timer 2 channels, 8-bit timer/counter 2 channels, 19-bit time-base timer, 16-bit capture timer/counter 32kHz timer/counter — Remote control receive circuit Noise elimination circuit 8-bit pulse measuring counter, 6-stage FIFO — PWM output 12 bits, 2 channels ? Interruption 22 factors, 15 vectors, multi-interruption possible ? Standby mode Sleep/stop ? Package 100-pin plastic QFP/LQFP ? Piggy/evaluation chip CXP740000 |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-CXP740010 |
| Part# | CXP740010 |
| Type： | Integrated Circuits |
| Manufactor | Original |
| DC | new |
| Part Status | Active |
| Product packaging | QFP |

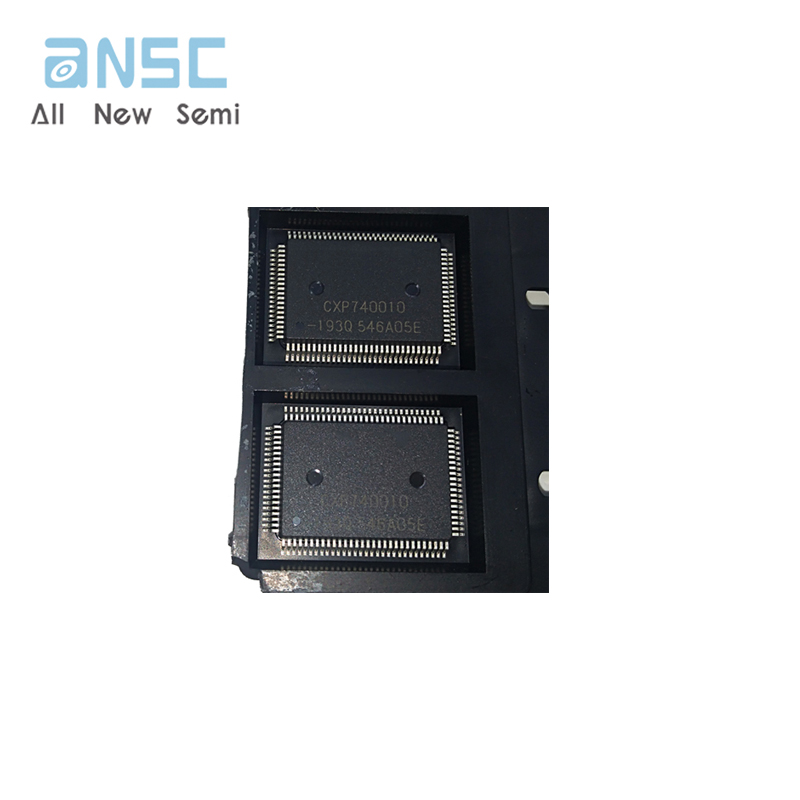

Product Photos
