Product Details
|
GENERAL DESCRIPTION Glass passivated triacs in a plastic envelope suitable for surface mounting, intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, heating and static switching. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - BT137B-600 |
| Manufacturer | NXP |
| Part Package | D2PAK |
| Package Description | PLASTIC PACKAGE-3 |
| Pin Count | 3 |
| Case Connection | MAIN TERMINAL 2 |
| Configuration | SINGLE |
| Critical Rate of Rise of Off-State Voltage-Min | 100 V/us |
| DC Gate Trigger Current-Max | 35 mA |
| DC Gate Trigger Voltage-Max | 1.5 V |
| Holding Current-Max | 20 mA |
| Leakage Current-Max | 0.5 mA |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 125 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Qualification Status | Not Qualified |
| RMS On-state Current-Max | 8 A |
| Repetitive Peak Off-state Leakage Current-Max | 500 μA |
| Repetitive Peak Off-state Voltage | 600 V |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| Terminal Position | SINGLE |
| Trigger Device Type | 4 QUADRANT LOGIC LEVEL TRIAC |

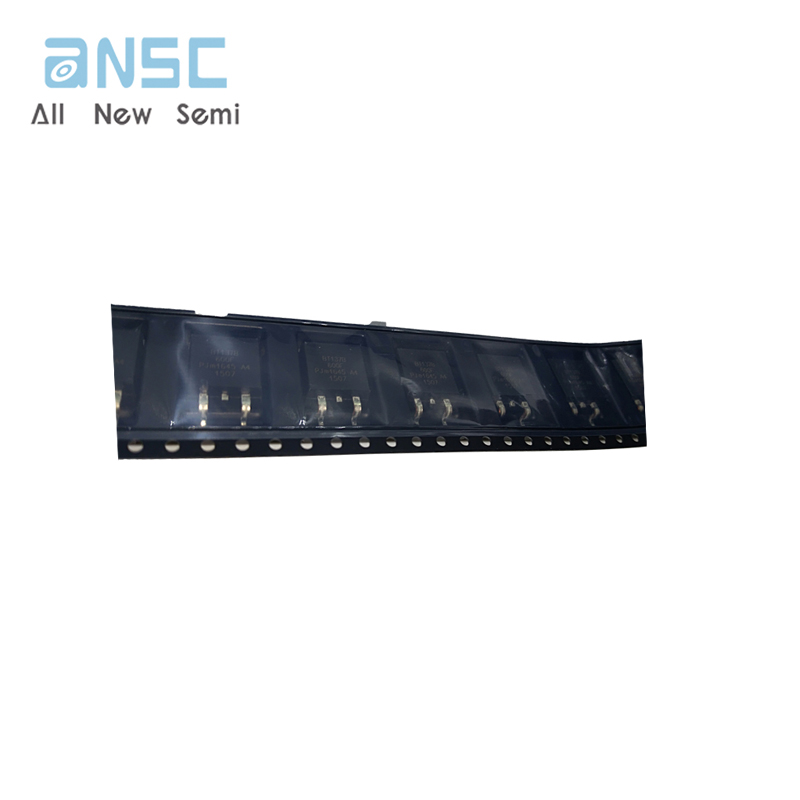

Product Photos

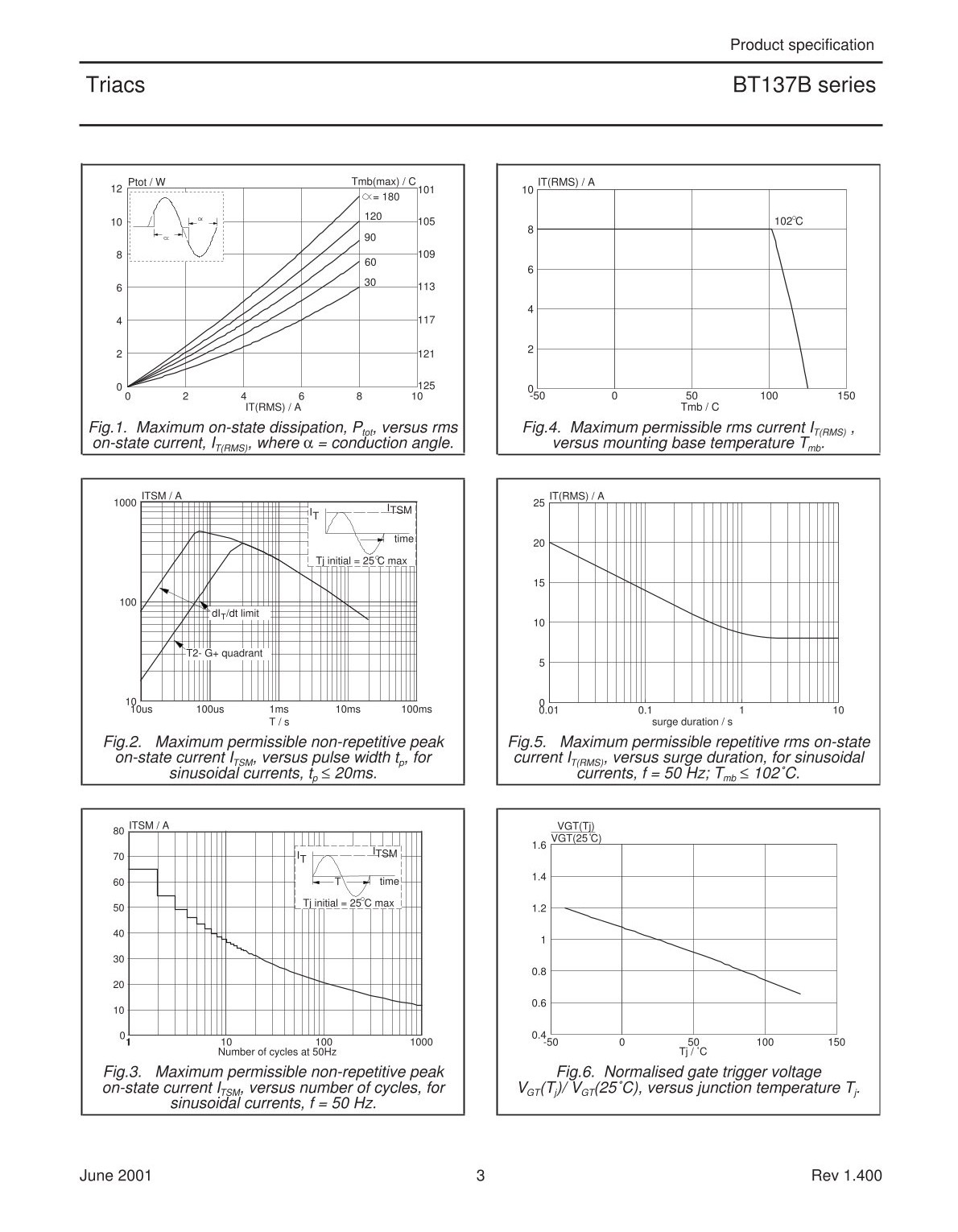

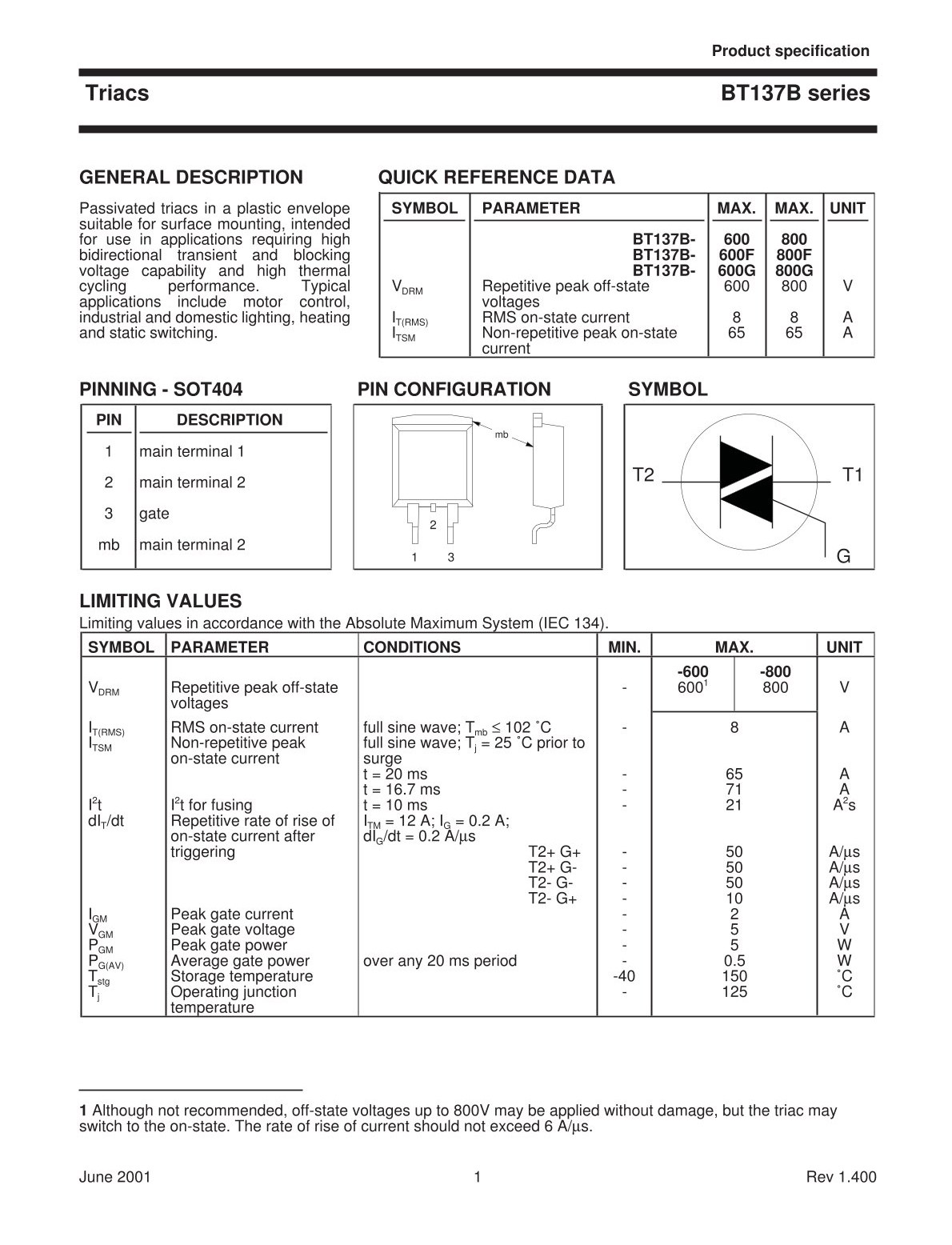

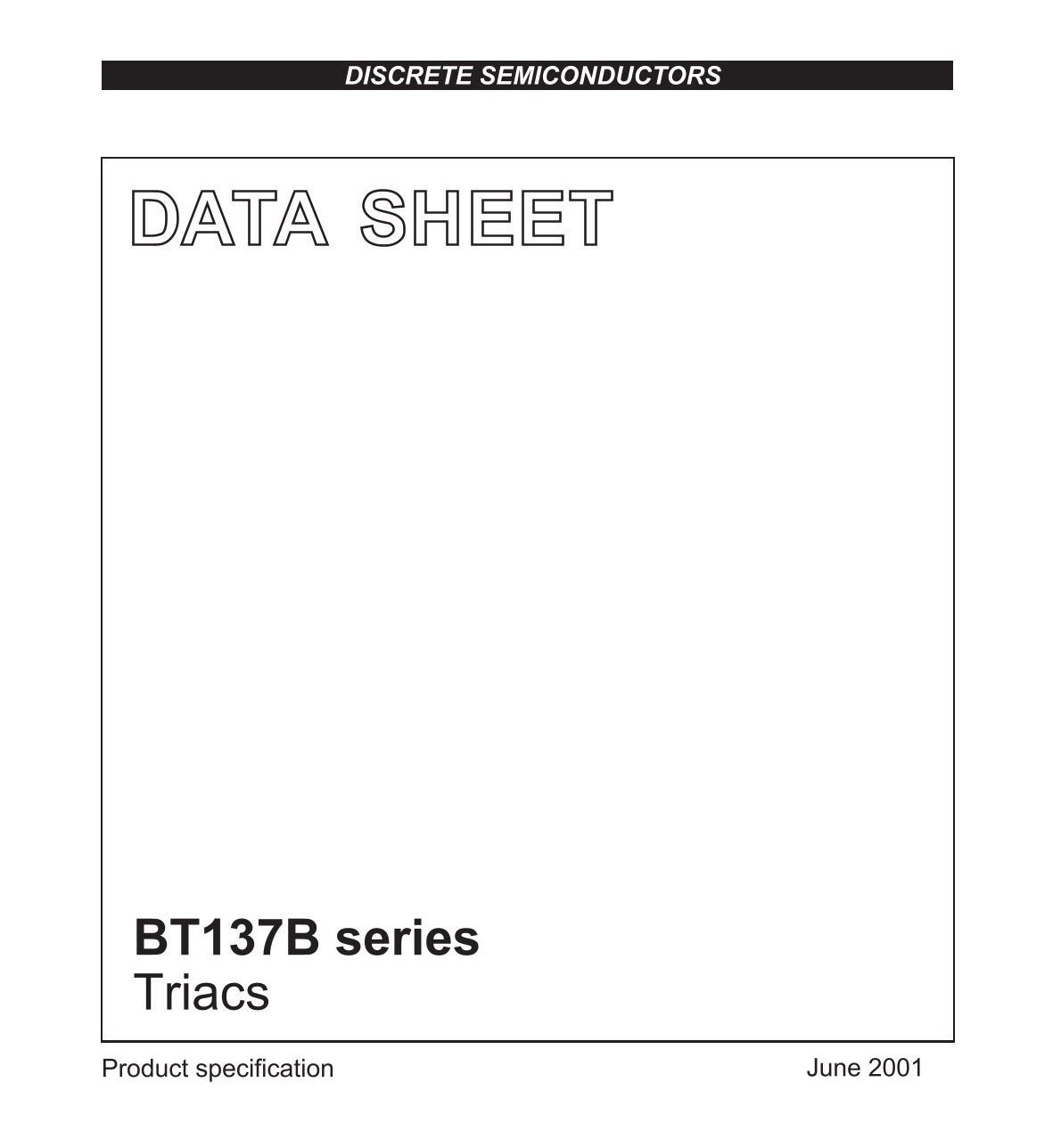

Product datasheet
For more information, please download
