Product Descriptions

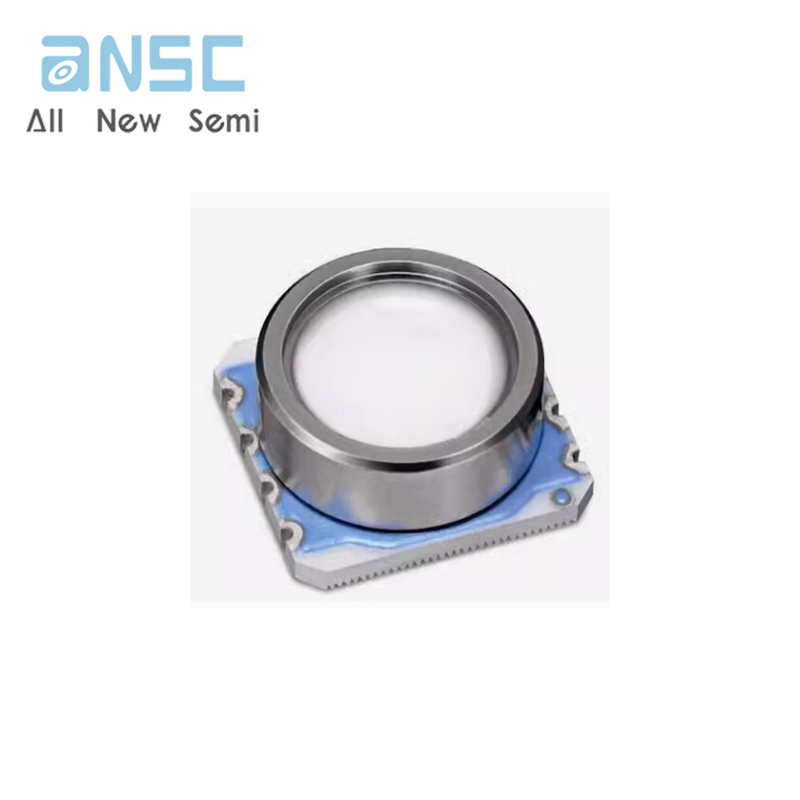

The MS5803-01BA is a new generation of high resolution altimeter sensors from TE Connectivity with SPI and I2C bus interface. The MS5803-

01BA HE is the high endurance pad technology version of the MS5803-01BA pressure sensor module.

It is optimized for altimeters and variometers with an altitude resolution of 10 cm. The sensor module includes a high linearity pressure sensor

and an ultra-low power 24 bit ΔΣ ADC with internal factory calibrated coefficients. It provides a precise digital 24 Bit pressure and temperature

value and different operation modes that allow the user to optimize for conversion speed and current consumption. A high resolution

temperature output allows the implementation of an altimeter/thermometer function without any additional sensor. The MS5803-01BA can be

interfaced to virtually any microcontroller.

The communication protocol is simple, without the need of programming internal registers in the device. The gel protection and antimagnetic

stainless steel cap allows the use in 100m water resistant altimeter/compass watches.

This new sensor module generation is based on leading MEMS technology and latest benefits from TE proven experience and know-how in

high volume manufacturing of altimeter modules, which have been widely used for over a decade. The sensing principle employed leads to very

low hysteresis and high stability of both pressure and temperature signal.

Product Features

? High resolution module, 10cm

? Fast conversion down to 1 ms

? Low power, 1 μA (standby < 0.15 μA)

? Integrated digital pressure sensor (24 bit ΔΣ ADC)

? Supply voltage 1.8 to 3.6 V

? Operating range: 10 to 1300 mbar, -40 to +85 °C

? I2C and SPI interface (Mode 0, 3)

? No external components (Internal oscillator)

? Excellent long term stability

? Hermetically sealable for outdoor devices

? High Endurance (HE version)

Product Applications

? Mobile altimeter / barometer systems

? Bike computers

? Adventure or multi-mode watches

? Variometers

? Dataloggers
