Product Details
|
GENERAL DESCRIPTION A wideband current feedback operational amplifier, the AD811 is optimized for broadcast-quality video systems. The ?3 dB bandwidth of 120 MHz at a gain of +2 and the differential gain and phase of 0.01% and 0.01° (RL = 150 ?) make the AD811 an excellent choice for all video systems. The AD811 is designed to meet a stringent 0.1 dB gain flatness specification to a band width of 35 MHz (G = +2) in addition to low differential gain and phase errors. This performance is achieved whether driving one or two back-terminated 75 ? cables, with a low power supply current of 16.5 mA. Furthermore, the AD811 is specified over a power supply range of ±4.5 V to ±18 V. (Continued on page 3) FEATURES High speed 140 MHz bandwidth (3 dB, G = +1) 120 MHz bandwidth (3 dB, G = +2) 35 MHz bandwidth (0.1 dB, G = +2) 2500 V/μs slew rate 25 ns settling time to 0.1% (for a 2 V step) 65 ns settling time to 0.01% (for a 10 V step) Excellent video performance (RL =150 ?) 0.01% differential gain, 0.01° differential phase Voltage noise of 1.9 nV/√Hz Low distortion: THD = ?74 dB @ 10 MHz Excellent dc precision: 3 mV max input offset voltage Flexible operation Specified for ±5 V and ±15 V operation ±2.3 V output swing into a 75 ? load (VS = ±5 V) APPLICATIONS Video crosspoint switchers, multimedia broadcast systems HDTV compatible systems Video line drivers, distribution amplifiers ADC/DAC buffers DC restoration circuits Medical Ultrasound PET Gamma Counter applications |
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD811JR |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Video Amps and Modules | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Applications | Current Feedback |
| Output Type | - |
| Number of Circuits | 1 |
| -3db Bandwidth | 140 MHz |
| Slew Rate | 2500V/μs |
| Current - Supply | 16.5 mA |
| Current - Output / Channel | 100 mA |
|
Voltage - Supply, Single/Dual (±) |
±4.5V ~ 18V |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AD811 |

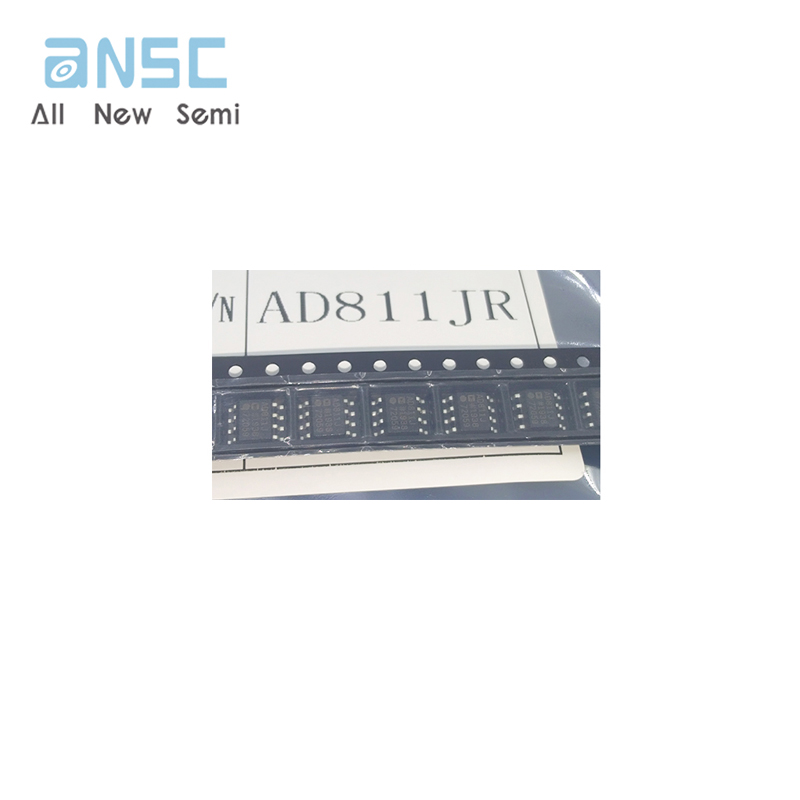

Product Photos

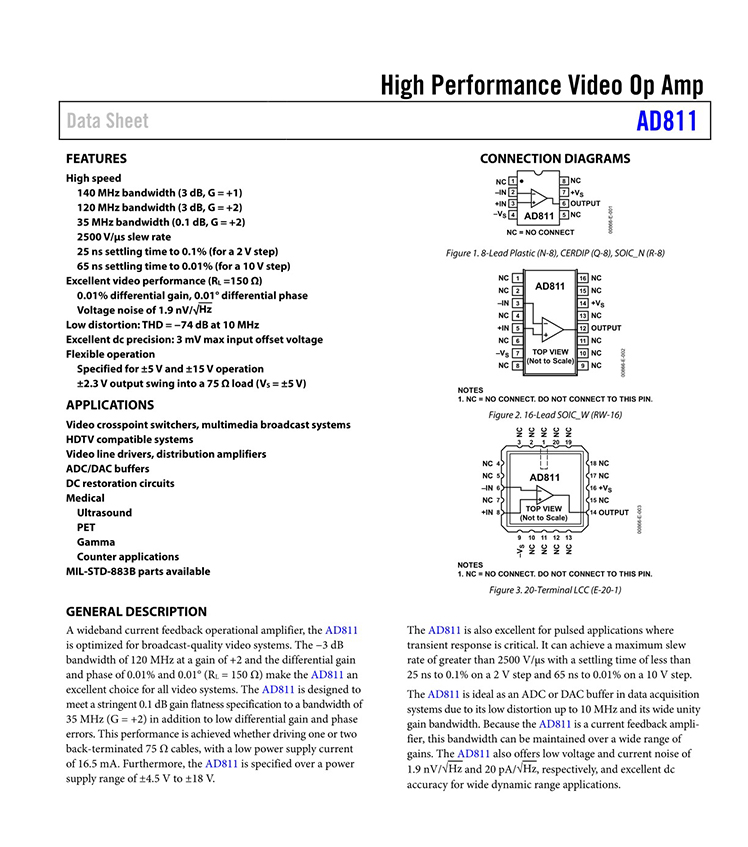

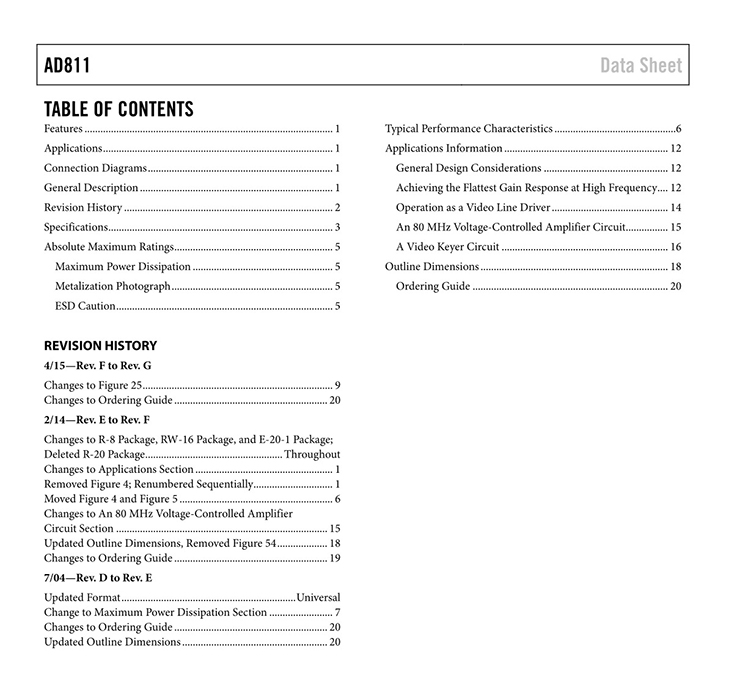

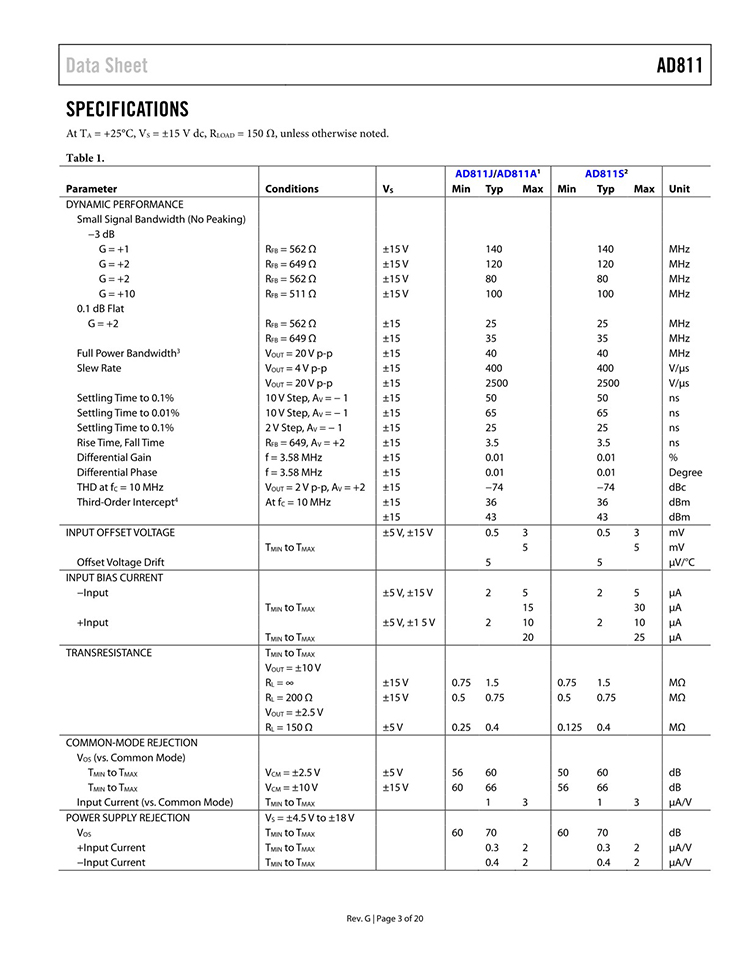

Product datasheet
For more information, please download
