Product Details
|
GENERAL DESCRIPTION The AD627 is an integrated, micropower instrumentation amplifier that delivers rail-to-rail output swing on single and dual (+2.2 V to ±18 V) supplies. The AD627 provides excellent ac and dc specifications while operating at only 85 μA maximum.
Micropower, 85 μA maximum supply current Wide power supply range (+2.2 V to ±18 V) Easy to use Gain set with one external resistor Gain range 5 (no resistor) to 1000 Higher performance than discrete designs Rail-to-rail output swing High accuracy dc performance 0.03% typical gain accuracy (G = +5) (AD627A) 10 ppm/°C typical gain drift (G = +5) 125 μV maximum input offset voltage (AD627B dual supply) 200 μV maximum input offset voltage (AD627A dual supply) 1 μV/°C maximum input offset voltage drift (AD627B) 3 μV/°C maximum input offset voltage drift (AD627A) 10 nA maximum input bias current Noise: 38 nV/√Hz RTI noise @ 1 kHz (G = +100) Excellent ac specifications AD627A: 77 dB minimum CMRR (G = +5) AD627B: 83 dB minimum CMRR (G = +5) 80 kHz bandwidth (G = +5) 135 μs settling time to 0.01% (G = +5, 5 V step)
4 to 20 mA loop-powered applications Low power medical instrumentation—ECG, EEG Transducer interfacing Thermocouple amplifiers Industrial process controls Low power data acquisition Portable battery-powered instruments |
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD627BR |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Amplifier Type | Instrumentation |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.06V/μs |
| -3db Bandwidth | 80 kHz |
| Current - Input Bias | 2 nA |
| Voltage - Input Offset | 25 μV |
| Current - Supply | 60μA |
| Current - Output / Channel | 25 mA |
| Voltage - Supply Span (Min) | 2.2 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature |
-40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AD627 |

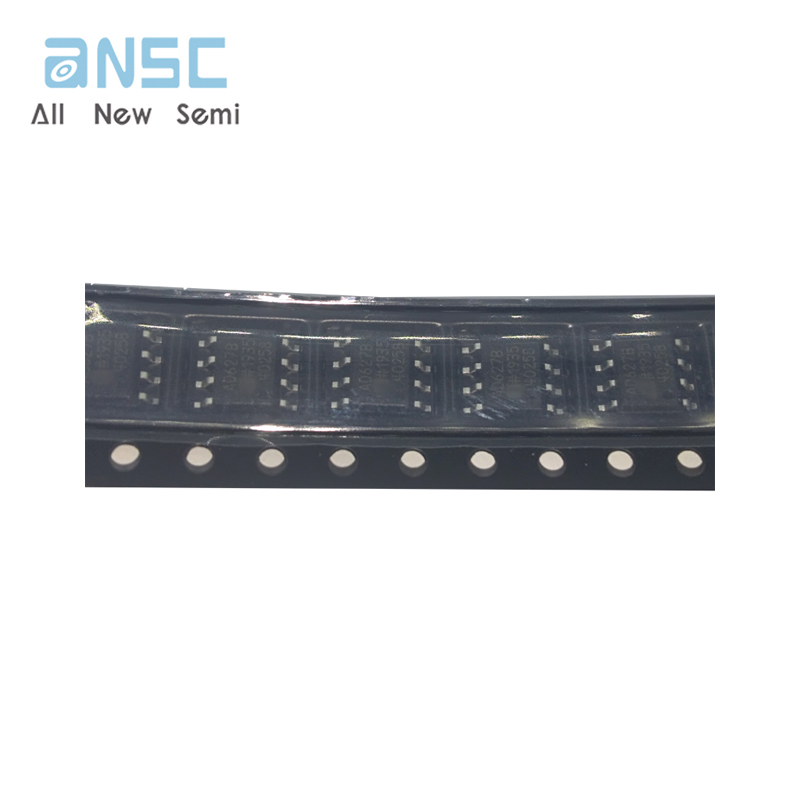

Product Photos

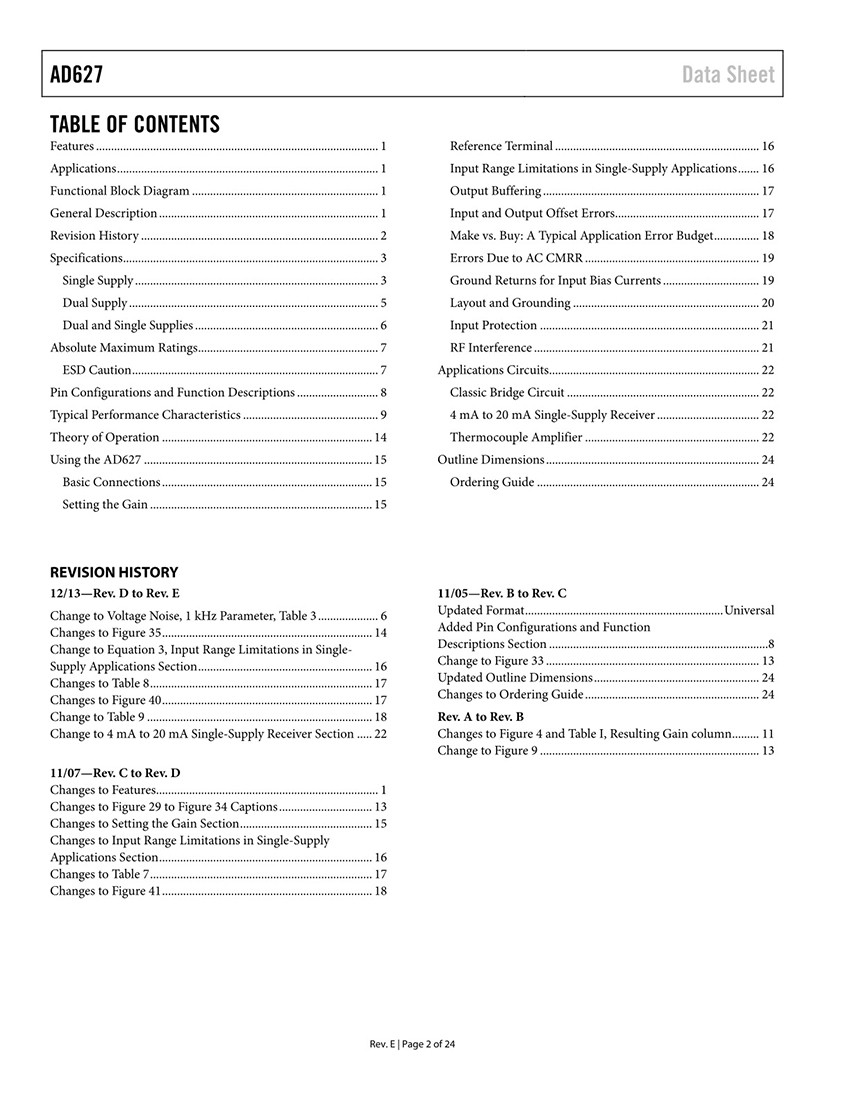

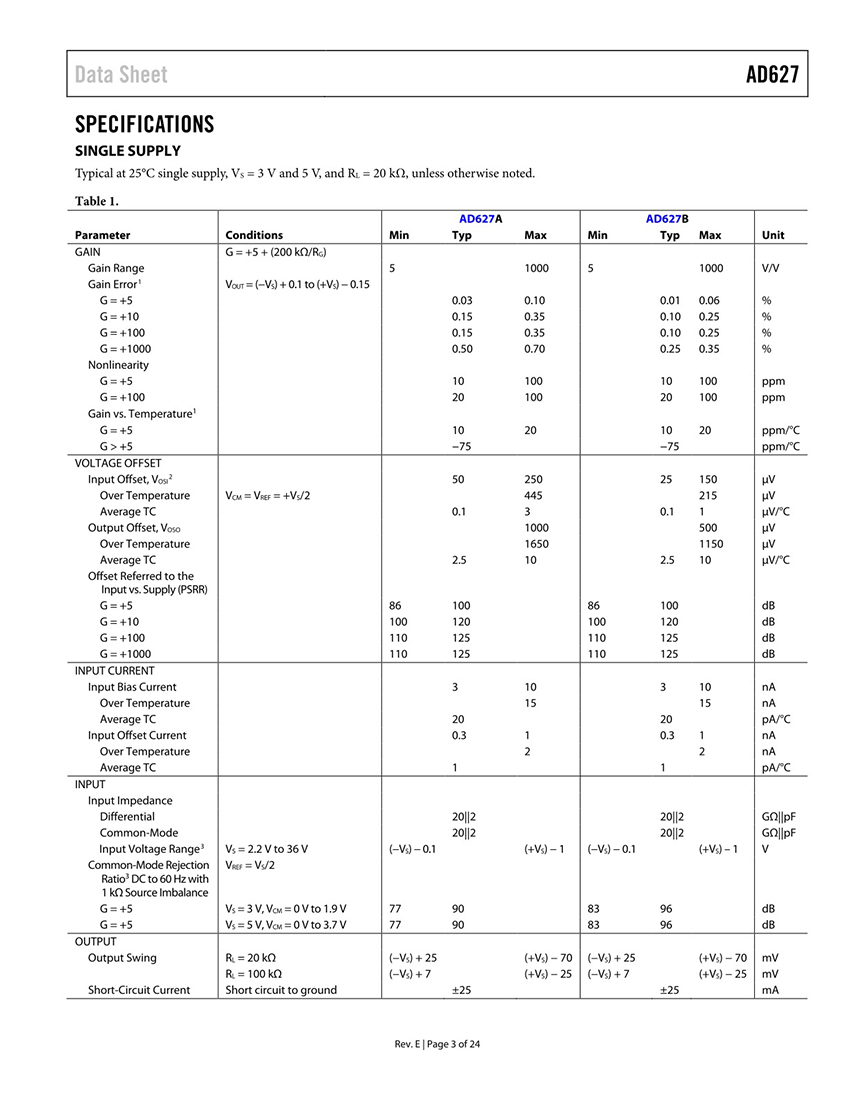

Product datasheet
