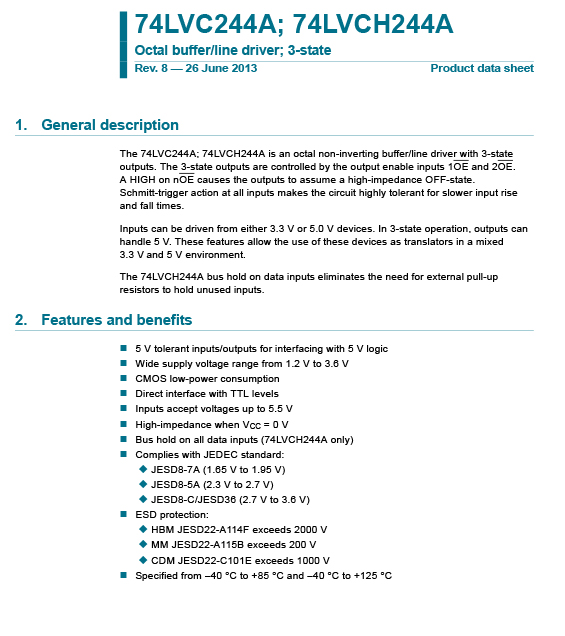

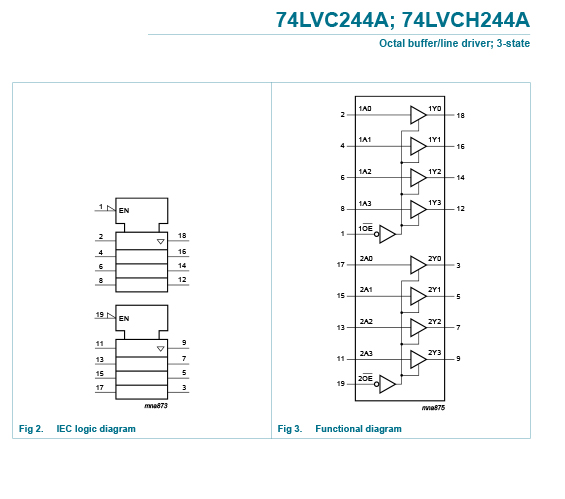

DESCRIPTION The 74LVC244A/74LVCH244A is a high-performance, low-power, low-voltage, Si-gate CMOS device, superior to most advanced CMOS compatible TTL families. Inputs can be driven from either 3.3V or 5V devices. In 3-State operation, outputs can handle 5V. These features allow the use of these devices as translators in a mixed 3.3V/5V environment. FEATURES ? 5-volt tolerant inputs/outputs, for interfacing with 5-volt logic ? Supply voltage range of 2.7V to 3.6V ? Complies with JEDEC standard no. 8-1A ? CMOS low power consumption ? Direct interface with TTL levels ? High impedance when VCC = 0V ? Bushold on all data inputs (74LVCH244A only) |

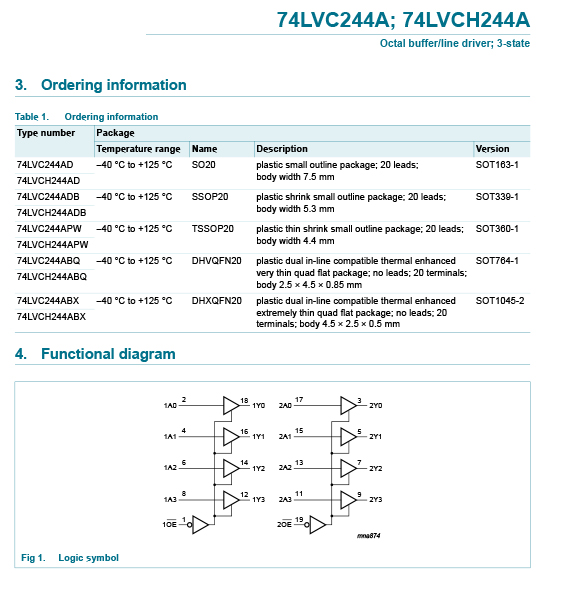

Product Description
| Type# | Description |
| ANSC PART# | ANSC - 74LVC244AD |
| Ihs Manufacturer | Original |
| Part Package Code | SOIC |
| Package Description | SOP, SOP20,.4 |
| Pin Count | 20 |
| Control Type | ENABLE LOW |
| Family | LVC/LCX/Z |
| Length | 12.8 mm |
| Load Capacitance (CL) | 50 pF |
| Logic IC Type | BUS DRIVER |
| Max I(ol) | 0.024 A |
| Moisture Sensitivity Level | 1 |
| Number of Bits | 4 |
| Number of Functions | 2 |
| Number of Ports | 2 |
| Number of Terminals | 20 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -40 °C |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP20,.4 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Packing Method | TUBE |
| Peak Reflow Temperature (Cel) | 260 |
| Prop. Delay@Nom-Sup | 7.5 ns |
| Propagation Delay (tpd) | 9 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2.65 mm |
| Supply Voltage-Max (Vsup) | 3.6 V |
| Supply Voltage-Min (Vsup) | 1.2 V |
| Supply Voltage-Nom (Vsup) | 3.3 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 7.5 mm |
