Product Description
ANSC PART# | ANSC- LM118H/883 |
Part# | LM118H/883 |
Type： | Electronic components |
Manufactor | Original |
DC | new |
Actual image of the product
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Operational Amplifiers - Op Amps |
| Number of Channels: | 1 Channel |
| SR - Slew Rate: | 50 V/us |
| Vos - Input Offset Voltage: | 4 mV |
| Ib - Input Bias Current: | 250 nA |
| Supply Voltage - Max: | 20 V |
| Supply Voltage - Min: | - 20 V |
| Operating Supply Current: | 8 mA |
| Package / Case: | TO-99-8 |
| Mounting Style: | Through Hole |
| Shutdown: | No Shutdown |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | + 125 C |
| Series: | LM118QML |
| Packaging: | Tray |
| Amplifier Type: | General Purpose Amplifier |
| Brand: | Texas Instruments |
| Height: | 4.45 mm |
| Length: | 9.14 mm |
| Maximum Dual Supply Voltage: | +/- 20 V |
| Pd - Power Dissipation: | 750 mW |
| Product Type: | Op Amps - Operational Amplifiers |
| PSRR - Power Supply Rejection Ratio: | 70 dB |
| Factory Pack Quantity: | 20 |
| Subcategory: | Amplifier ICs |
| Supply Type: | Dual |
| Technology: | Bipolar |
| Type: | General Purpose Amplifiers |
| Voltage Gain dB: | 93.98 dB |
| Width: | 9.14 mm |

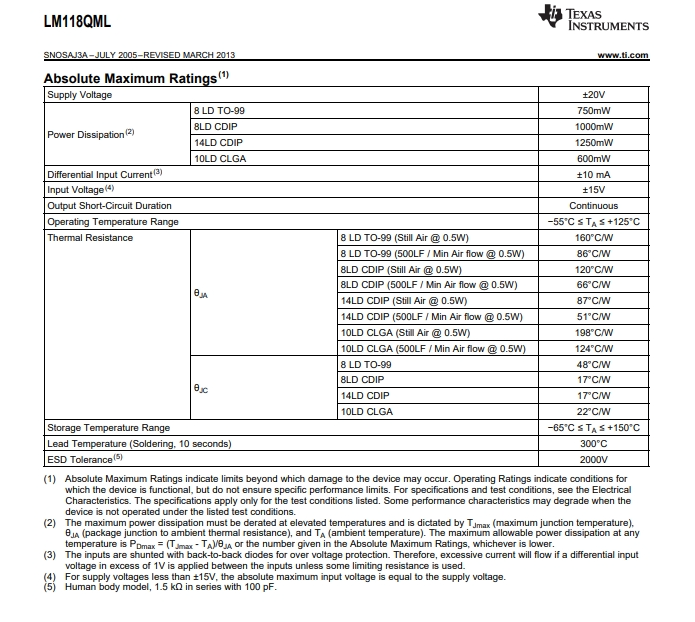

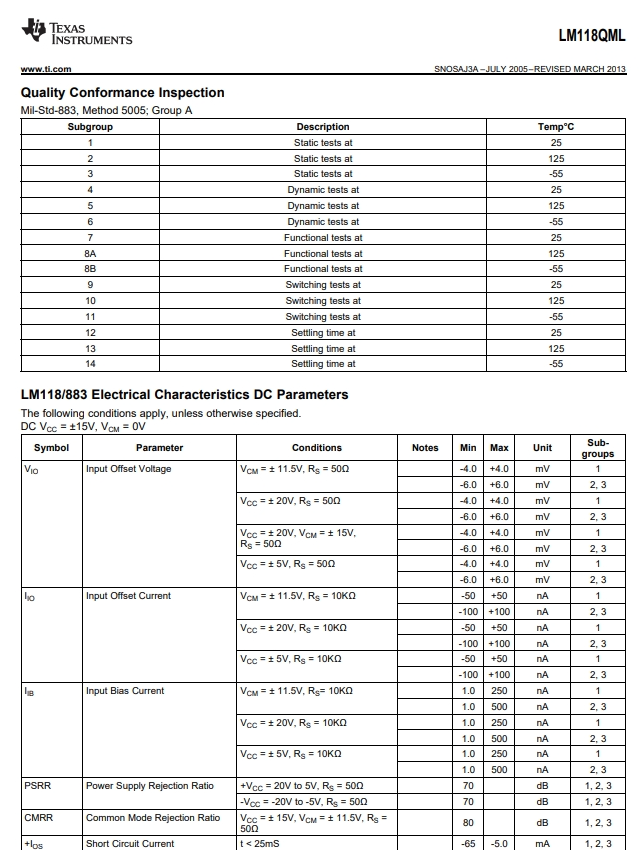

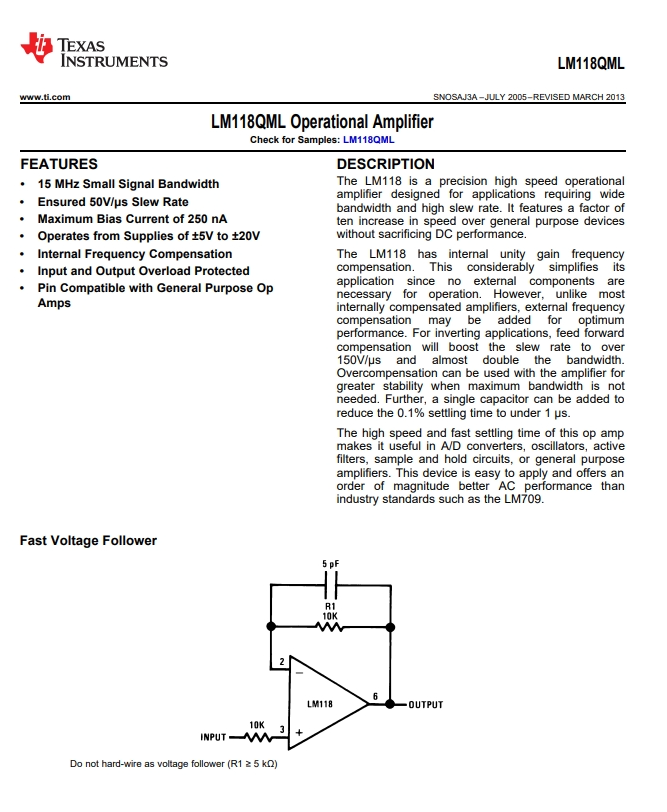

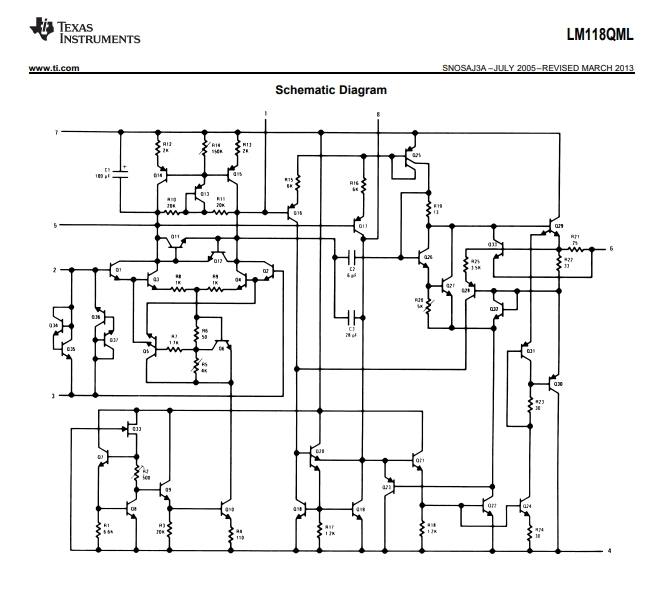

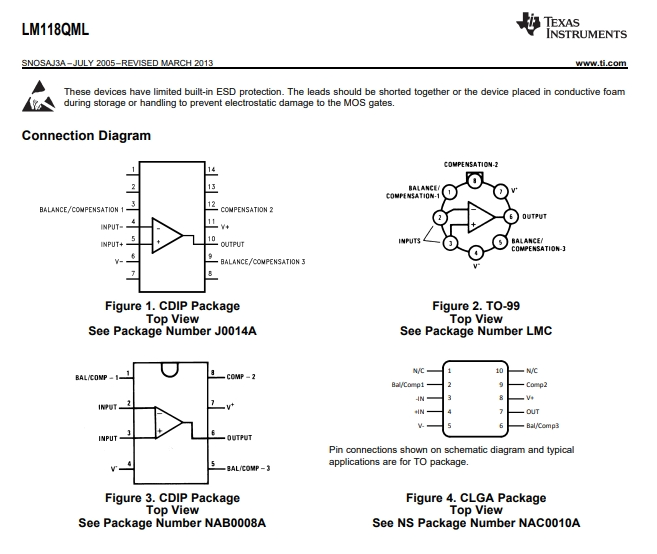

Product datasheet
For more information, please download
