Product Details

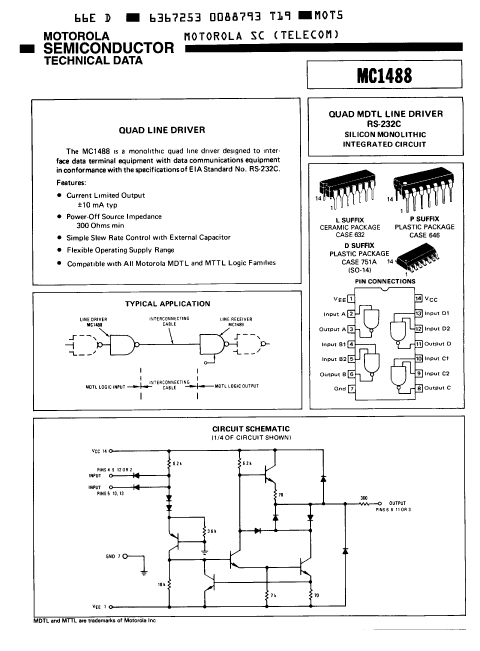

| The MC1488 is a monolithic quad line driver designed to interface data terminal equipment with data communications equipment in conformance with the specifications of EIA Standard No. EIA?232D. Features ? Current Limited Output ±10 mA typical ? Power?Off Source Impedance 300 minimum ? Simple Slew Rate Control with External Capacitor ? Flexible Operating Supply Range ? Compatible with All ON Semiconductor DTL and TTL Logic Families ? Pb?Free Packages are Available |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - MC1488L |
| Ihs Manufacturer | MOTOROLA INC |
| Package Description | 632-08 |
| Additional Feature | 1 SINGLE INPUT DRIVER; PROGRAMMABLE SLEW RATE |
| Differential Output | NO |
| Driver Number of Bits | 4 |
| High Level Input Current-Max | 0.00001 A |
| Input Characteristics | GATED |
| Interface IC Type | LINE DRIVER |
| Interface Standard | EIA-232-C |
| Length | 19.495 mm |
| Number of Functions | 1 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 75 °C |
| Operating Temperature-Min | |
| Out Swing-Min | 12 V |
| Output Characteristics | TOTEM-POLE |
| Output Polarity | INVERTED |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Qualification Status | Not Qualified |
| Receive Delay-Max | / |
| Seated Height-Max | 5.08 mm |
| Supply Current-Max | 34 mA |
| Supply Voltage-Nom | 12 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL EXTENDED |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Transmit Delay-Max | 175 ns |
| Width | 7.62 mm |
Product Photos

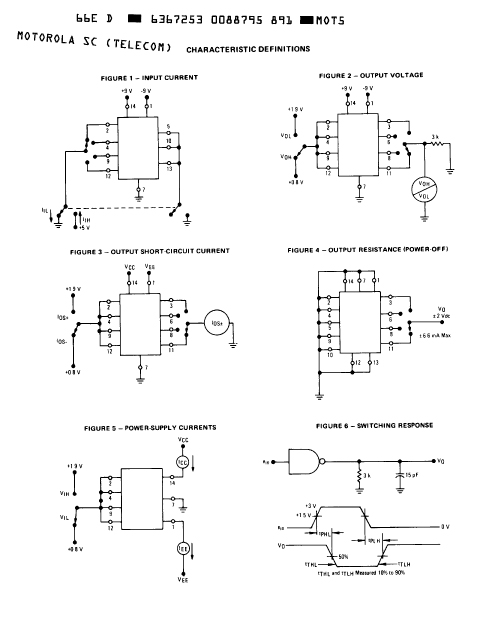

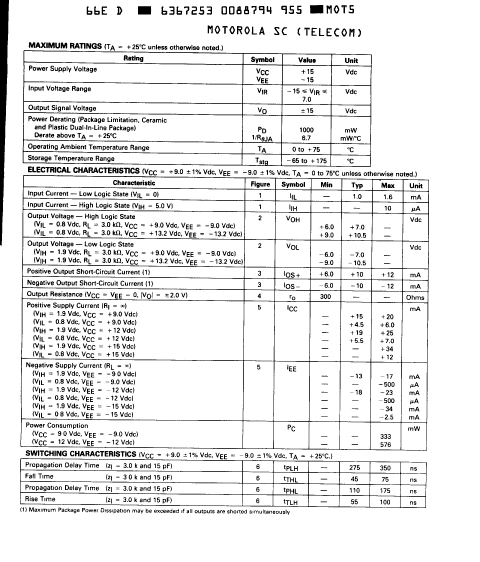

Product datasheet
