Product Details
|

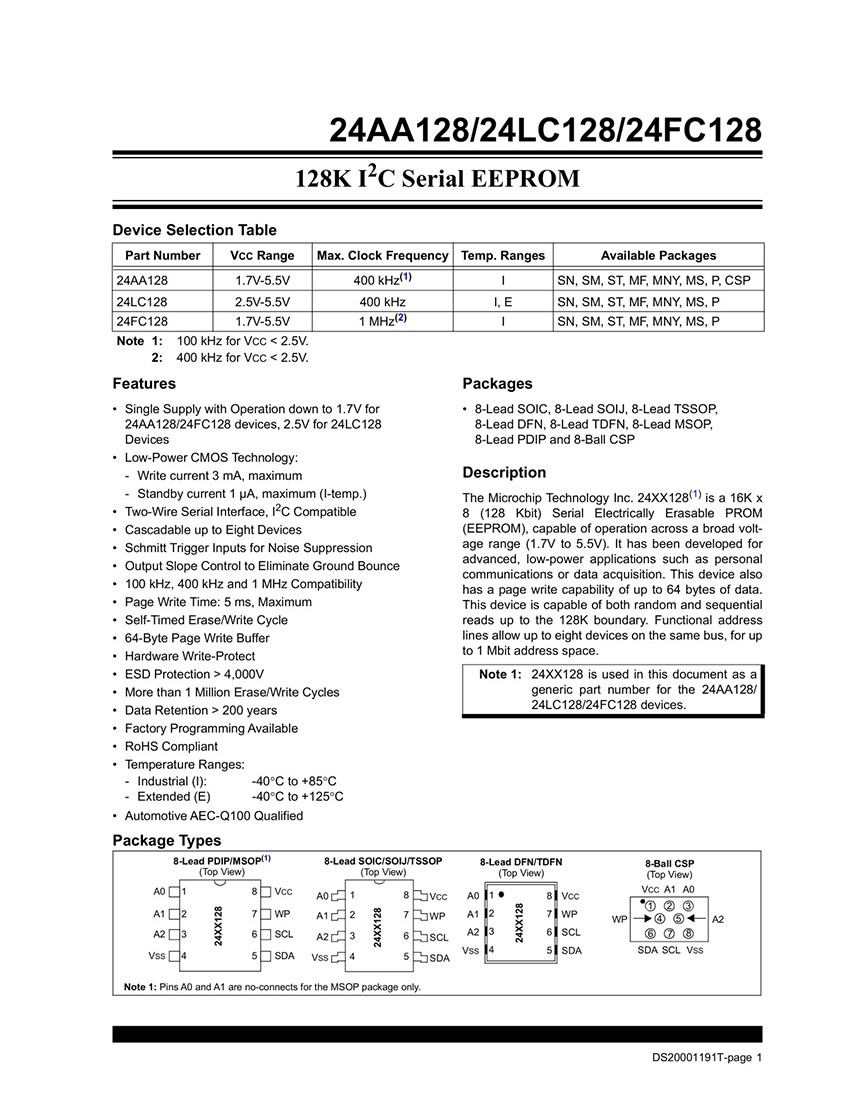

Description: The Microchip Technology Inc. 24AA128/24LC128/24FC128 (24XX128*) is a 16K x 8 (128 Kbit) Serial Electrically Erasable PROM (EEPROM), capable of operation across a broad voltage range (1.7V to 5.5V). It has been developed for advanced, low-power applications such as personal communications or data acquisition. This device also has a page write capability of up to 64 bytes of data. This device is capable of both random and sequential reads up to the 128K boundary. Functional address lines allow up to eight devices on the same bus, for up to 1 Mbit address space. This device is available in the standard 8-pin plastic DIP, SOIC (3.90 mm and 5.28 mm), TSSOP, MSOP, DFN, TDFN and Chip Scale packages.
? Single Supply with Operation down to 1.7V for 24AA128/24FC128 devices, 2.5V for 24LC128 Devices ? Low-Power CMOS Technology: - Write current 3 mA, typical - Standby current 100 nA, typical ? 2-Wire Serial Interface, I2C? Compatible ? Cascadable up to Eight Devices ? Schmitt Trigger Inputs for Noise Suppression ? Output Slope Control to Eliminate Ground Bounce ? 100 kHz and 400 kHz Clock Compatibility ? 1 MHz Clock for FC Versions ? Page Write Time 5 ms, typical ? Self-Timed Erase/Write Cycle ? 64-Byte Page Write Buffer ? Hardware Write-Protect ? ESD Protection >4000V ? More than 1 Million Erase/Write Cycles ? Data Retention > 200 years ? Factory Programming Available ? Packages include 8-lead PDIP, SOIC, TSSOP, DFN, TDFN, MSOP, and Chip Scale Packages ? Pb-Free and RoHS Compliant ? Temperature Ranges: - Industrial (I): -40°C to +85°C - Automotive (E): -40°C to +125°C |
Product Description
| Type | Description |
| ANSC PART# | ANSC - 24LC128-I/SN |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | Microchip Technology |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| DigiKey Programmable | Verified |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 128Kbit |
| Memory Organization | 16K x 8 |
| Memory Interface | I2C |
| Clock Frequency | 400 kHz |
| Write Cycle Time - Word, Page | 5ms |
| Access Time | 900 ns |
| Voltage - Supply | 2.5V ~ 5.5V |
| Operating Temperature |
-40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | 24LC128 |

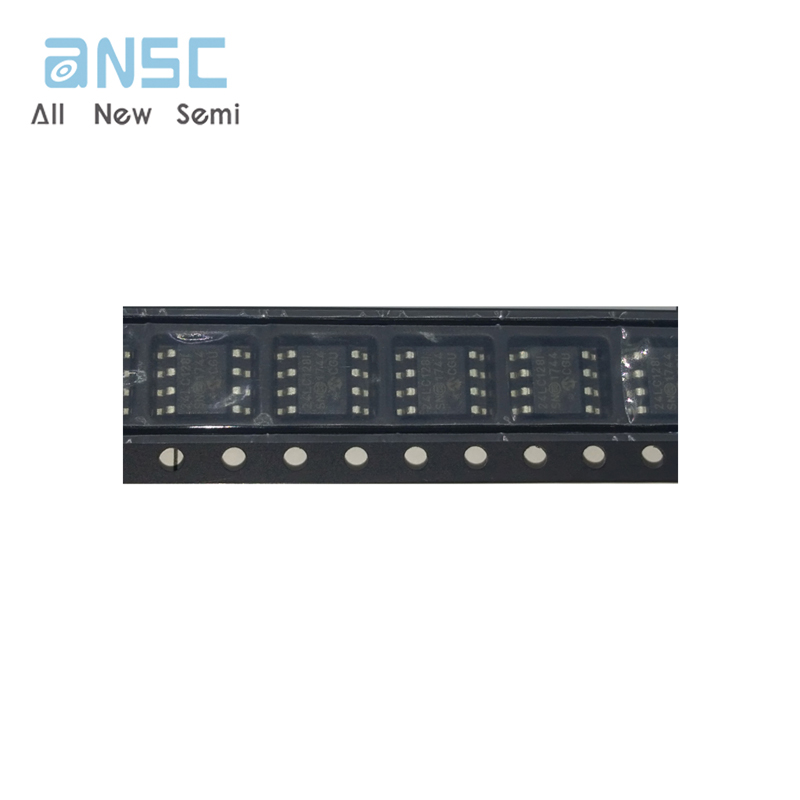

Product Photos

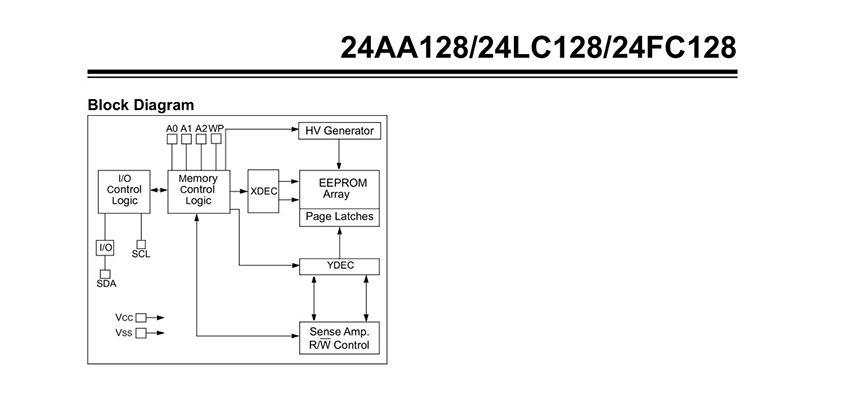

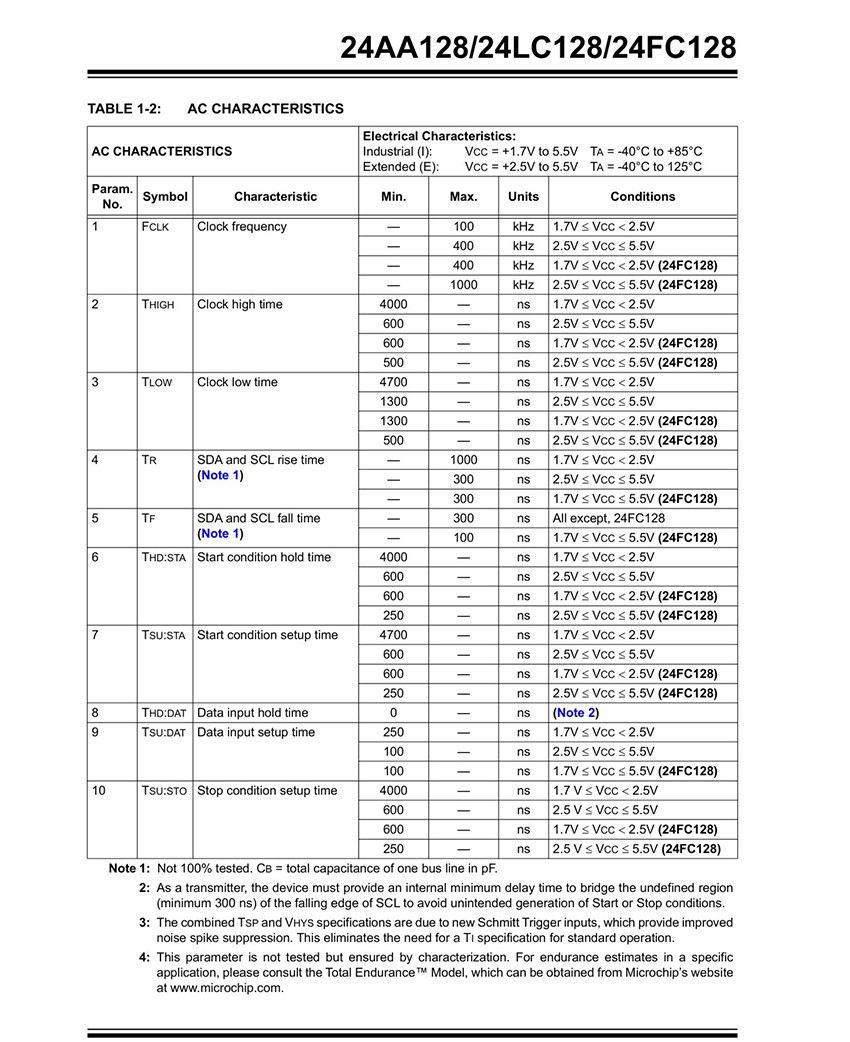

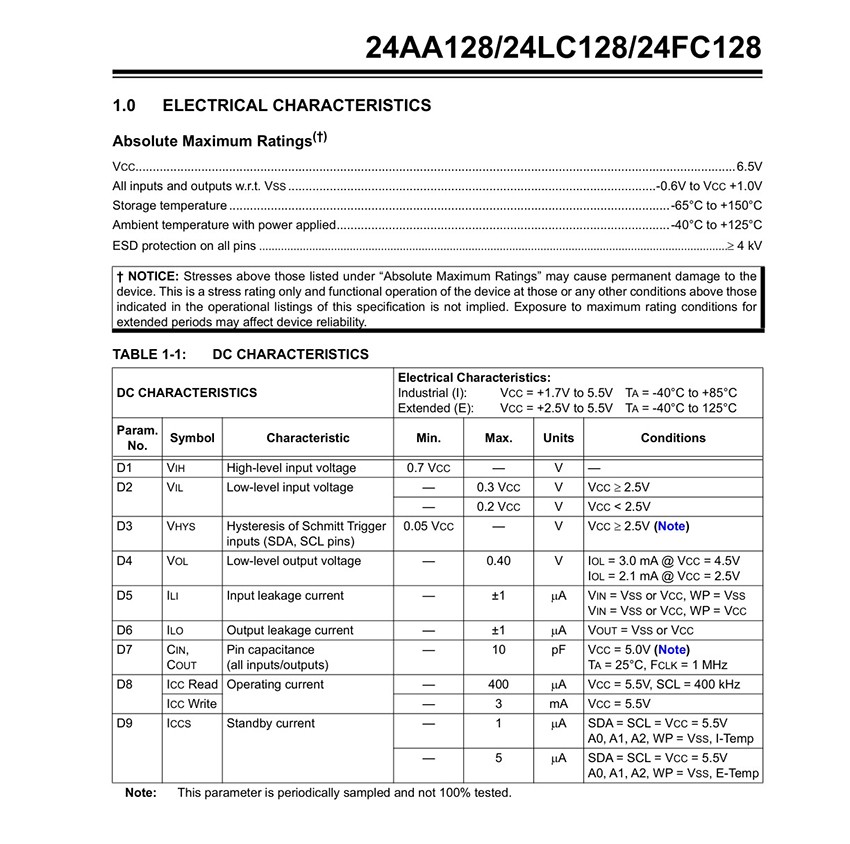

Product datasheet
For more information, please download
