Product Details
SN74LVC1G125DBVR Overview
An interesting SC-74A, SOT-753 package is used. As part of the external packaging, this logical driver uses the Tape & Reel (TR) form factor. In this bus transceiver, you can choose from a Surface Mount mount or a D mount. There is a wide range of applications for this Buffer, Non-Inverting logic integrated circuit. The supply voltage for this ethernet transceiver is 1.65V~5.5V. As long as the ambient temperature does not exceed -40°C~125°C TA, the logical driver can function. In both high and low logic states, it has an output current of 32mA 32mA. With 3-State outputs, bus transceiver can be used. A 74LVC series network transceiver, it belongs to the line of mobile devices. Logic device with 5 different terminations. There is a requirement for 3.3V of supply voltage. This electronic part belongs to the LVC/LCX/Z family of parts. This electric component comes with 5 pins. Surface Mount applications can be used with digital buffer. A 5-pin connector is used. An enhanced bus transceiver with 2 ports is available. Search 74LVC1G125 for other related electrical components. It uses 10μA when quiescent. An electrical supply with 3.3V is recommended. There is usually a TR package available. The electronic part comes with 1 efficient bits which are included within the package. The ethernet transceiver has 1 channels for high-quality communication. 1 inputs are present in it. Voltage buffers using ENABLE LOW control start up automatically.
SN74LVC1G125DBVR Applications
There are a lot of Texas Instruments
SN74LVC1G125DBVR Buffers & Transceivers applications.
Wired telephone | Cordless telephone | Desktop PC | Notebook |
Pocket PC | Desktop radio | Clock radio | Tuner |
Portable radio | Car radio |
Product Description
ANSC PART# | ANSC- SN74LVC1G125DBVR |
Part# | SN74LVC1G125DBVR |
Type： | Integrated Circuits(ICs) |
Manufactor | Texas Instruments |
DC | new |
Package / Case | SOT-23-5 |
Supplier Device Package | Tape & Reel (TR)Cut Tape (CT) |
Product Attributes
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| - | |
| Product Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40擄C ~ 125擄C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | 74LVC1G125 |
Actual image of the product

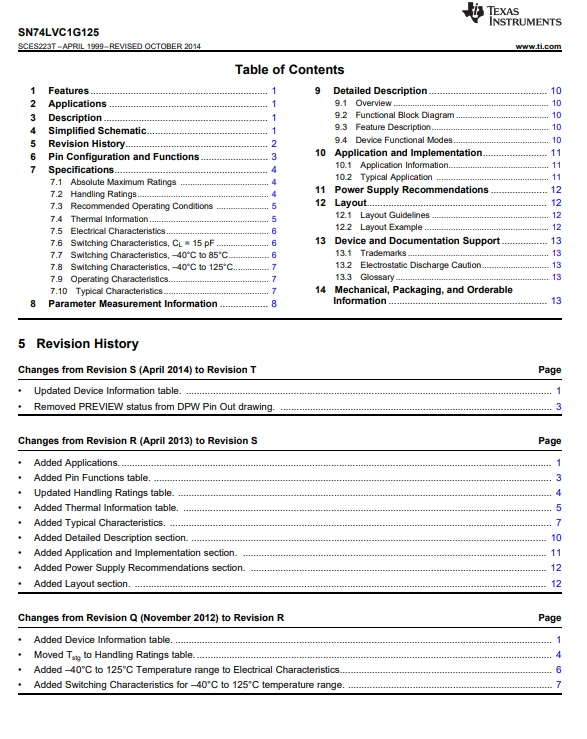

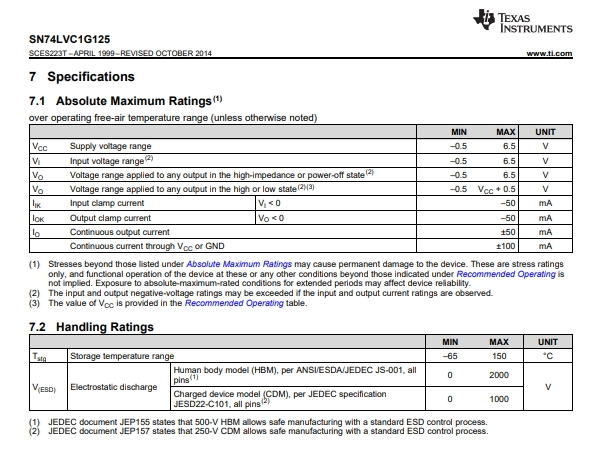

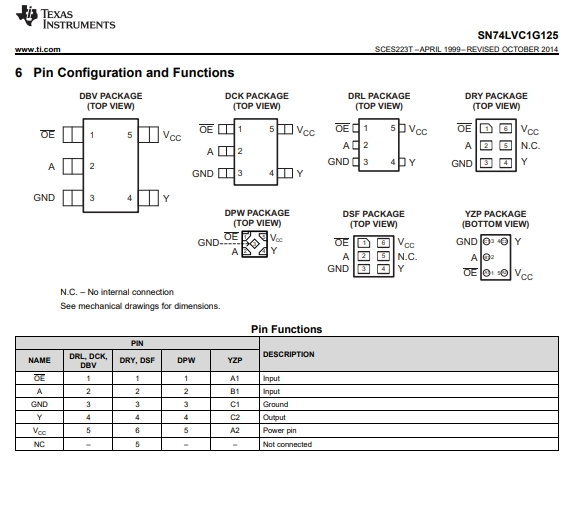

Product datasheet
For more information, please download
