Product Details
|
Description The TTL-232RG generic cables are a family of USB to TTL serial UART converter cables incorporating FTDI’s FT232RQ USB to Serial UART interface IC device which handles all the USB signalling and protocols. The cables provide a fast, simple way to connect devices with a logic level serial interface to USB.
? TTL-232RG generic converter cable provides a USB to TTL Serial interface with various logic levels. ? On board FT232RQ provides single chip USB to asynchronous serial data transfer interface. ? Entire USB protocol handled by the electronics in the cable USB. ? Connect directly to a microcontroller UART or I/O pins. ? UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity. ? Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking. ? Data transfer rates from 300 baud to 3 Mbaud at TTL levels. ? Internal EEPROM with user writeable area. ? Wide range of output drive voltages 1.8V to 5.0V safe TTL inputs makes the TTL-232RG easy to interface to 5.0V MCU’s. ? FTDI’s royalty-free VCP allow for communication as a standard emulated COM port and D2XX ‘direct’ drivers provide DLL application programming interface. ? Support for FT232R FTDIChip-ID? feature for improved security. ? Voltage output power allows external logic to be powered from the USB port. ? Cable can be used to accept IO voltage from application interface logic allowing users to supply IO voltage levels. ? 6 way outputs provide Tx, Rx, RTS#, CTS#, VCC and GND. ? Low USB bandwidth consumption. ? UHCI / OHCI / EHCI host controller compatible. ? USB 2.0 (12Mb/s) Full Speed compatible. ? -40°C to +85°C operating temperature range. ? Cable length is 1.80m (6 feet). ? FCC and CE compliant. ? Custom versions also available (subject to MOQ). Typical Applications ? USB to Serial TTL Level Converter ? Upgrading Legacy Peripherals to USB ? Interface Microcontroller UART or I/O to USB ? Interface FPGA / PLD to USB ? Interface to FTDI VDRIVE2 or VMUSIC2 modules. ? Interface USB to none-standard (application dependant) logic levels. ? Replace MAX232 type level shifters allowing for direct connection of products to PC via USB ? USB Instrumentation PC interface ? USB Industrial Control ? USB Software / Hardware Encryption Dongles |
Product Description
| Type | Description |
| ANSC PART# | ANSC - REG103GA-A |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 1.295V |
| Voltage - Output (Max) | 5.5V |
| Voltage Dropout (Max) | 0.28V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 0.7 mA |
| Current - Supply (Max) | 1.3 mA |
| PSRR | 65dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-223-6 |
| Supplier Device Package | SOT-223-6 |
| Base Product Number | REG103 |

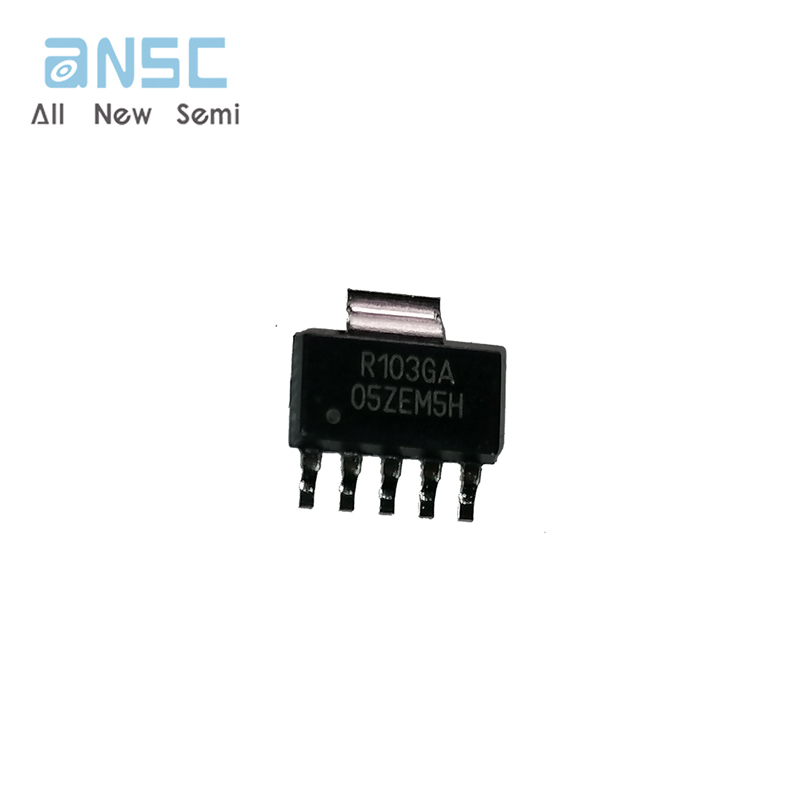

Product Photos

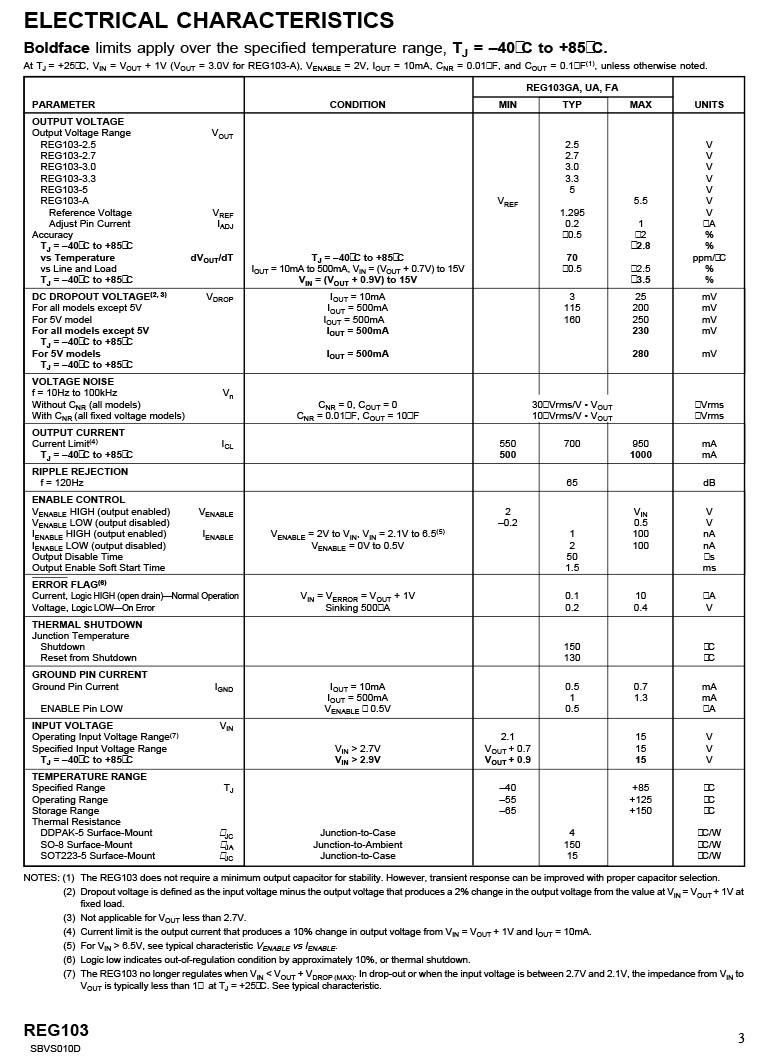

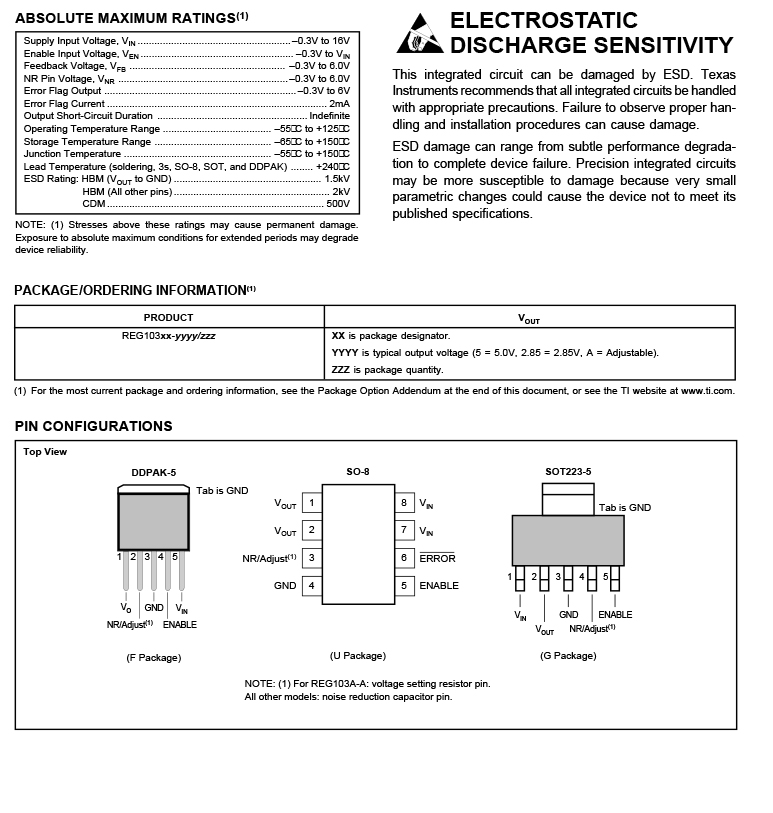

Product datasheet
For more information, please download
