Product Details
| Octal Transparent Latch with 3 State Outputs latches with 3-state outputs for bus organized system applications. The flip-flops appear transparent to the data when Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the setup time is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the bus output is in the high impedance state. ? Eight Latches in a Single Package ? 3-State Outputs for Bus Interfacing ? Outputs Source/Sink 24 mA ? ′ACT373 Has TTL Compatible Inputs |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 54F373DMQB |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC |
| Part Package Code | DIP |
| Package Description | CERAMIC, DIP-20 |
| Pin Count | 20 |
| Family | F/FAST |
| Length | 25.019 mm |
| Logic IC Type | BUS DRIVER |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 20 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Propagation Delay (tpd) | 15 ns |
| Screening Level | MIL-STD-883 |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | MILITARY |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

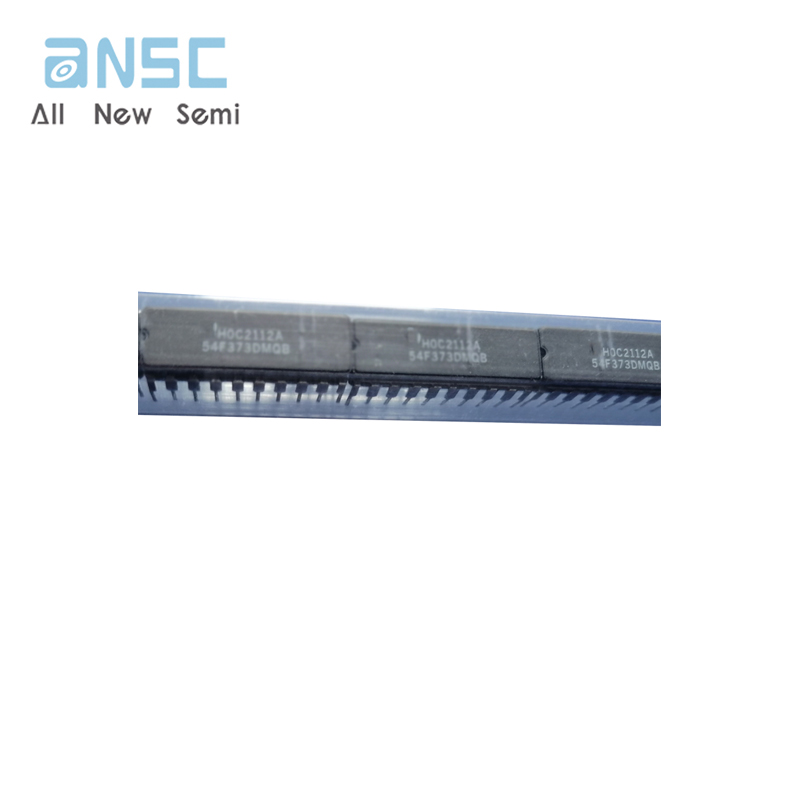

Product Photos
