Product Details

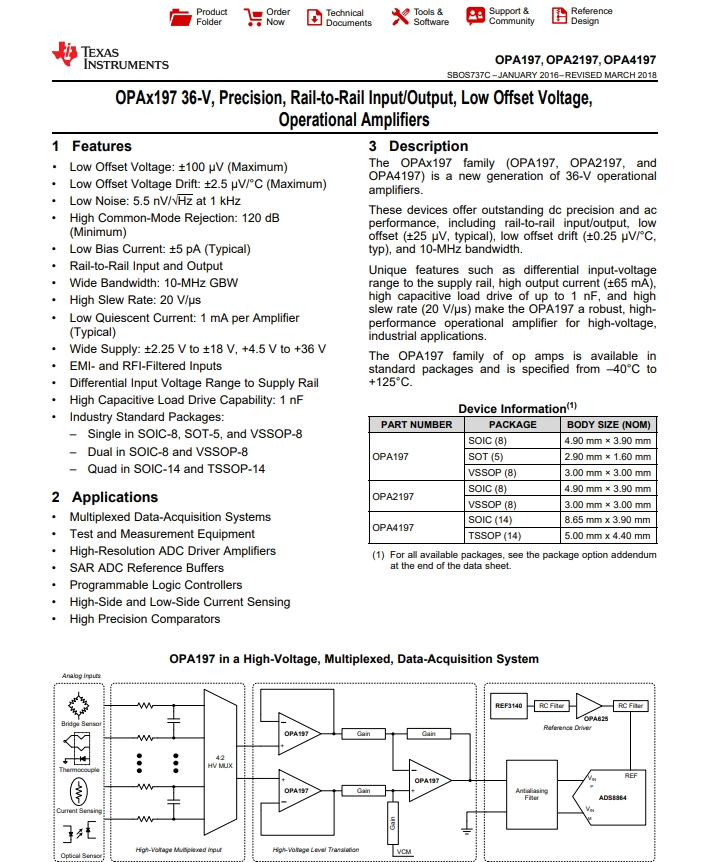

1 Features
1? Low Offset Voltage: ±100 μV (Maximum)
? Low Offset Voltage Drift: ±2.5 μV/°C (Maximum)
? Low Noise: 5.5 nV/√Hz at 1 kHz
? High Common-Mode Rejection: 120 dB
(Minimum)
? Low Bias Current: ±5 pA (Typical)
? Rail-to-Rail Input and Output
? Wide Bandwidth: 10-MHz GBW
? High Slew Rate: 20 V/μs
? Low Quiescent Current: 1 mA per Amplifier
(Typical)
? Wide Supply: ±2.25 V to ±18 V, +4.5 V to +36 V
? EMI- and RFI-Filtered Inputs
? Differential Input Voltage Range to Supply Rail
? High Capacitive Load Drive Capability: 1 nF
? Industry Standard Packages:
– Single in SOIC-8, SOT-5, and VSSOP-8
– Dual in SOIC-8 and VSSOP-8
– Quad in SOIC-14 and TSSOP-14
2 Applications
? Multiplexed Data-Acquisition Systems
? Test and Measurement Equipment
? High-Resolution ADC Driver Amplifiers
? SAR ADC Reference Buffers
? Programmable Logic Controllers
? High-Side and Low-Side Current Sensing
? High Precision Comparators
Product Description
TYPE | DESCRIPTION |
|---|---|
| ANSC PART# | ANSC -OPA197IDBVT |
Category | Integrated Circuits (ICs) Linear Amplifiers Instrumentation, OP Amps, Buffer Amps |
Mfr | Texas Instruments |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Amplifier Type | General Purpose |
Number of Circuits | 1 |
Output Type | Rail-to-Rail |
Slew Rate | 20V/μs |
Gain Bandwidth Product | 10 MHz |
Current - Input Bias | 5 pA |
Voltage - Input Offset | 25 μV |
Current - Supply | 1mA |
Voltage - Supply Span (Min) | 4.5 V |
Voltage - Supply Span (Max) | 36 V |
Operating Temperature | -40°C ~ 125°C |
Mounting Type | Surface Mount |
Package / Case | SC-74A, SOT-753 |
Supplier Device Package | SOT-23-5 |
Base Product Number | OPA197 |
Actual image of the product
Product datasheet
For more information, please download
