Product Details
LM339N Description
LM339N comparator is equipped with four independent voltage comparators inside the voltage comparator chip. LM339N four-way differential comparator is a common integrated circuit and is mainly used in high-voltage digital logic gate circuits. The use of circuits can easily form a variety of voltage comparator circuits and oscillator circuits. LM339N circuit can also directly interface with TTL and CMOS circuits.
LM339N Features
Low Input Bias Current: 25 nA
Low Input Offset Current: 3 nA
Low Input Offset Voltage: 2 mV
Common-Mode Input Voltage Range
Low Output Saturation Voltage
LM339N Applications
Industrial
Automotive
Infotainment and Clusters
Body Control Modules
Power Supervision
Oscillators
Peak Detectors
Logic Voltage Translation
Product Description
Texas Instruments LM339N
Through Hole Tube 16mA mA 1.3 μs μs Linear Comparators 106.02dB dB 250nA pA 1mA μA 5mV mV Through Hole
ANSC PART# | ANSC- LM339N |
Part# | LM339N |
Type： | Integrated Circuits(ICs) |
Manufactor | Texas Instruments |
DC | new |
Package / Case | 14-PDIP |
Supplier Device Package | Tube |
Product Attributes
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Type | General Purpose |
| Number of Elements | 4 |
| Output Type | Open-Collector |
| Voltage - Supply, Single/Dual (鹵) | 2V ~ 30V, 鹵1V ~ 15V |
| Voltage - Input Offset (Max) | 5mV @ 30V |
| Current - Input Bias (Max) | 0.25碌A(chǔ) @ 5V |
| Current - Output (Typ) | 20mA |
| Current - Quiescent (Max) | 2.5mA |
| CMRR, PSRR (Typ) | - |
| Propagation Delay (Max) | - |
| Hysteresis | - |
| Operating Temperature | 0擄C ~ 70擄C |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Base Product Number | LM339 |
Actual image of the product

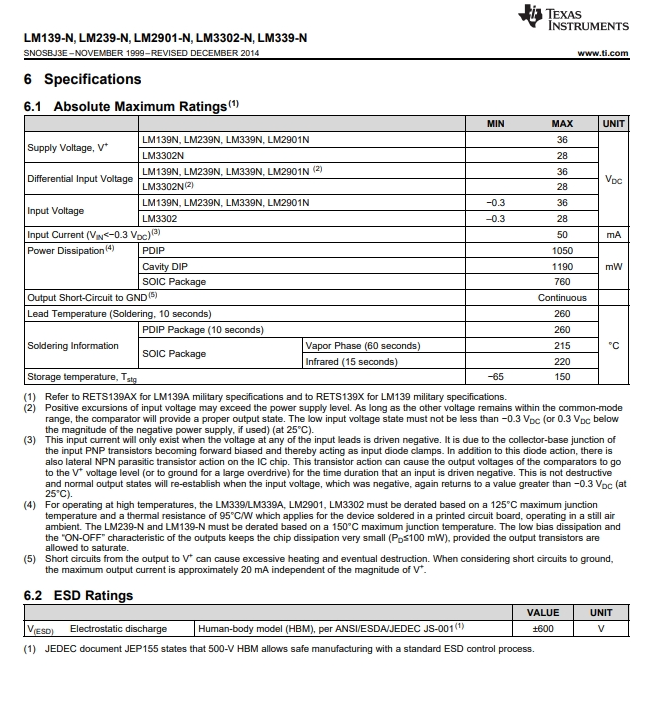

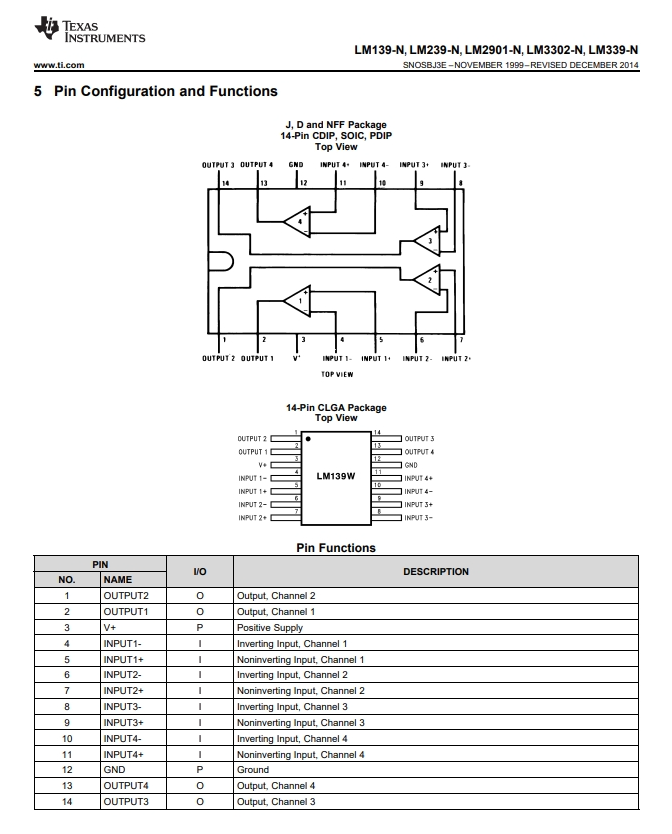

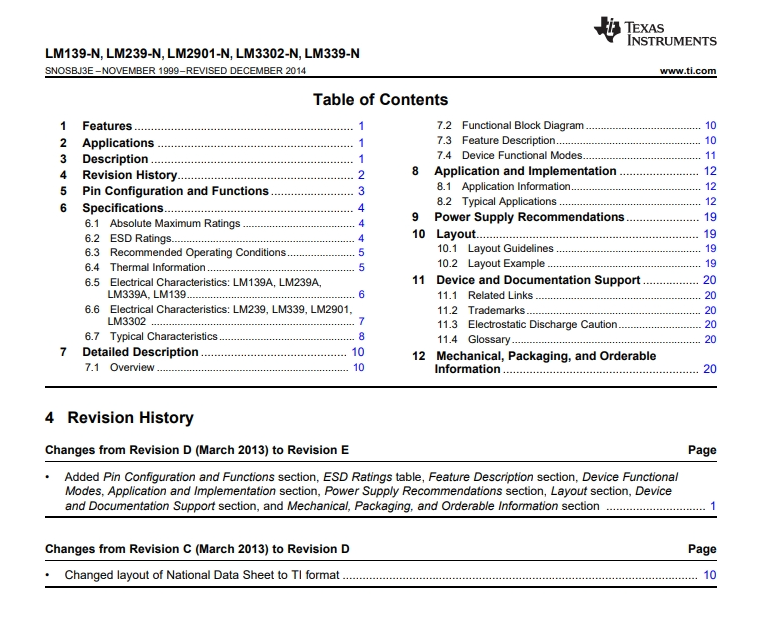

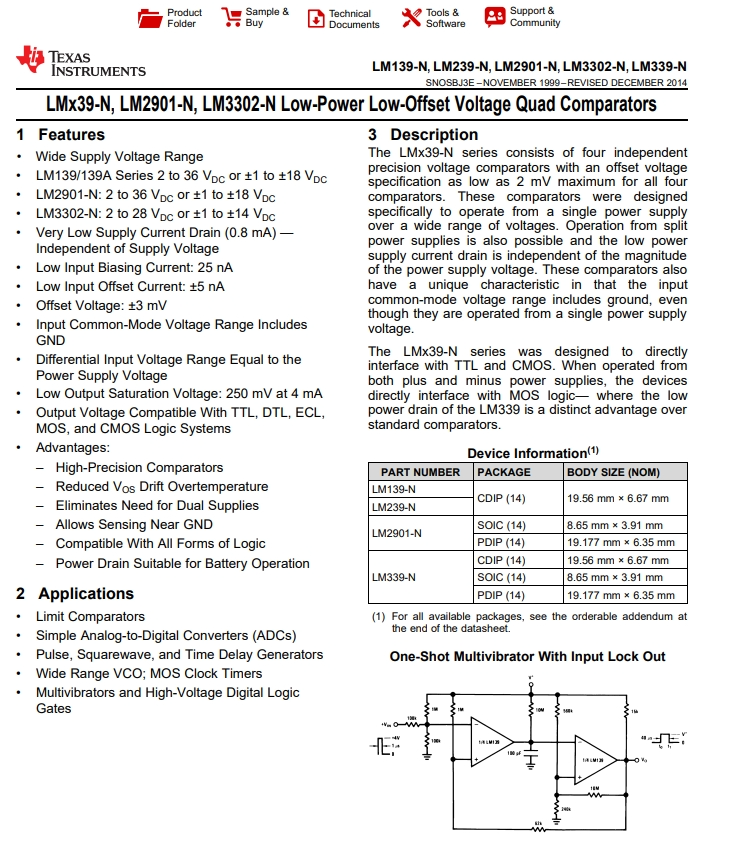

Product datasheet
For more information, please download
