Product Details
LM317MDT-TR Overview
The package is delivered in a Tape & Reel (TR) case. In order to package the IC voltage regulator, a TO-252-3, DPak (2 Leads + Tab), SC-63 case is used. On the Voltage regulator IC, there are 2 terminations that can be connected. This IC Regulator has a type of output called Adjustable. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at 0°C~125°C TJ degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 500mA. As you can see, the regulator IC has a total of 3 pins. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. Depending on the chip, 3 pins may be available. For your information, part number LM317 is the basic part number for this voltage regulator IC. There is a TR way of packing the IC voltage regulators in the box. There is a maximum output current of 200mA for this regulator to meet the operational requirements.
LM317MDT-TR Features
TR method of packing
LM317MDT-TR Applications
There are a lot of STMicroelectronics
LM317MDT-TR Linear Voltage Regulators applications.
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
Digital TV
Smartcard
Industrial equipment
DVD and CD-ROM drive
Quick charge protocols
Measurement and control euipment
Product Description
STMicroelectronics LM317MDT-TR
Adjustable TO-252-3, DPak (2 Leads + Tab), SC-63 Tape & Reel (TR) Regulator IC 3
Adjustable 2.25mm Tin LM317 PMIC 3 TO-252-3, DPak (2 Leads + Tab), SC-63
ANSC PART# | ANSC- LM317MDT-TR |
Part# | LM317MDT-TR |
Type： | Integrated Circuits(ICs) |
Manufactor | STMicroelectronics |
DC | new |
Package / Case | DPAK |
Supplier Device Package | Tape & Reel (TR)Cut Tape (CT) |
Product Attributes
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel廬 | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 37V |
| Voltage Dropout (Max) | - |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 80dB ~ 65dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0擄C ~ 125擄C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Base Product Number | LM317 |
Actual image of the product

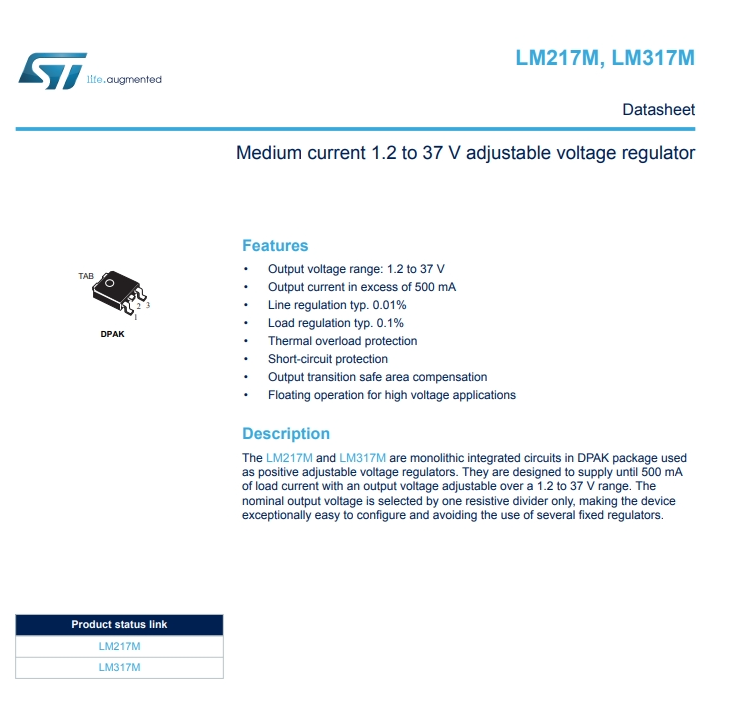

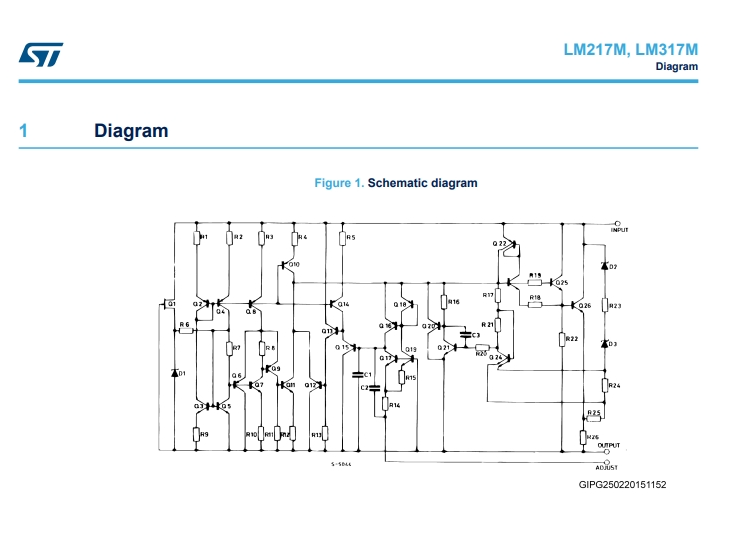

Product datasheet
For more information, please download
