Product Overview
With a 16-PowerTSSOP (0.173, 4.40mm Width) package, the switching controller is suitable for a wide range of applications. For 1 outputs, the dc motor controller is appropriate. A solid enclosure of Tube surrounds pmic. Transistor Driver dc switching's outputs (s) can be handled by it. This dc control has a supply voltage and operating voltage of 8V~40V. Worked in an dc switcher with a -40°C~85°C TA rating. Switching can be done at Up to 1MHz with this switching controller. The Surface Mount value makes it suitable for general dc dc regulator. For efficient switching control, the dcdc regulator features Current Limit, Enable, Frequency Control, Soft Start. A SWITCHING CONTROLLER analog IC is connected to the switch converters. The switching converters's terminals (s) are designed at DUAL. An array of 16 terminations of dc switching. These dc dc converter ics adapt a variety of control techniques, including PULSE WIDTH MODULATION. The nominal DC switcher's voltage input is 24V. Search for "TPS40057" to find other relevant dc to dc converter ics. There are a total of 16 pins on switching converter. The test statistics indicate that DC regulator outputs a voltage of 35V. You should note that the dc dc regulator's usual output current is 20A. In most applications and prototypes, DC switcher's Surface Mount makes it suitable. DC regulator has a maximum frequency of 1MHz. To run the voltage regulator dc to dc safely and reliably, users should apply 40V to the voltage regulator dc to dc. In a dormant state, the dc switching uses 1.5mA. The dc switcher's maximum input voltage is 40V, so users must limit the voltage accordingly. A voltage of 8V is required for the supply. Datasheets indicate that the switching converter can output 6V volts at its maximum.
Product Features
Transistor Driver Outputs
Switching Frequency: Up to 1MHz
Current Limit, Enable, Frequency Control, Soft Start
PULSE WIDTH MODULATION
Product Applications
TPS40057PWP DC to DC converter applications.
Servo drive system
Digital display device
Linear guide
Ball screw pair
Computer application technology
Network technology
Automation technology
CMM
Various precision measuring instruments
Various precision measuring detectors
Product Description
TPS40057PWP
DC DC Converter 8V~40V 16-PowerTSSOP (0.173, 4.40mm Width) Transistor Driver 1 Outputs Tube DC DC Switching Controller
16 Terminals 8V~40V 16-Pin TPS40057 DC to DC converter IC SWITCHING CONTROLLER 1 Outputs Up to 1MHz Transistor Driver
Product Attributes
TYPE | DESCRIPTION |
|---|---|
ANSC PART# | ANSC - TPS40057PWP |
Category | Integrated Circuits (ICs) Power Management (PMIC) DC DC Switching Controllers |
Manufacturer | Original |
Series | - |
Packaging | Tube |
Part Status | Active |
Output Type | Transistor Driver |
Function | Step-Down |
Output Configuration | Positive |
Topology | Buck |
Number of Outputs | 1 |
Output Phases | 1 |
Voltage - Supply (Vcc/Vdd) | 8V ~ 40V |
Frequency - Switching | Up to 1MHz |
Duty Cycle (Max) | 94% |
Synchronous Rectifier | Yes |
Clock Sync | Yes |
Serial Interfaces | - |
Control Features | Current Limit, Enable, Frequency Control, Soft Start |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) |
Supplier Device Package | 16-HTSSOP |
Base Product Number | TPS40057 |
Actual image of the product

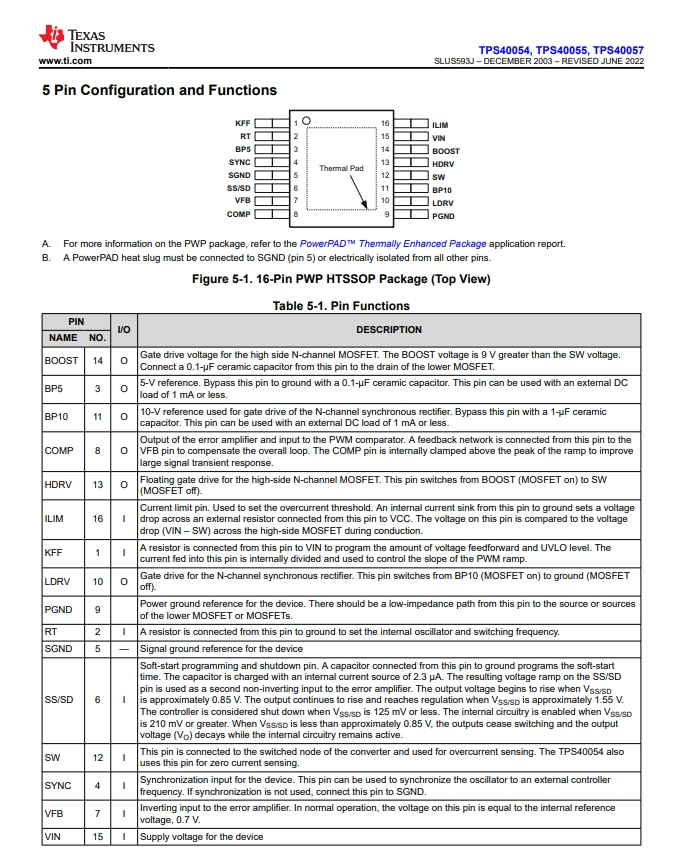

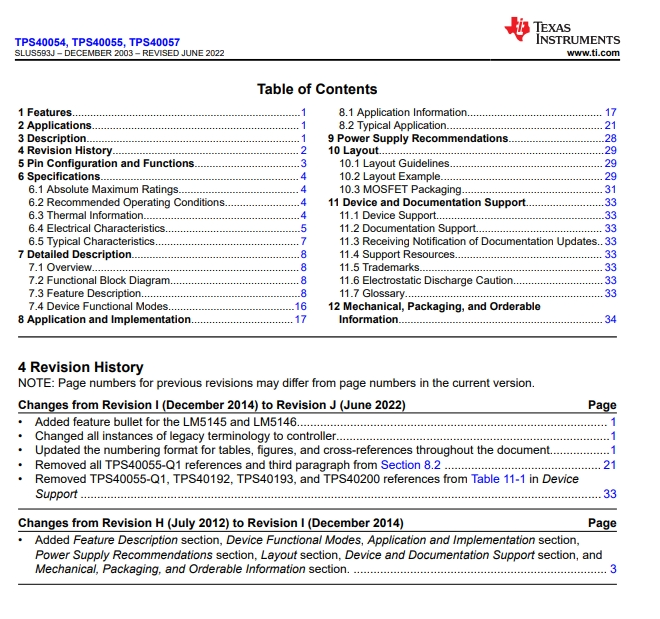

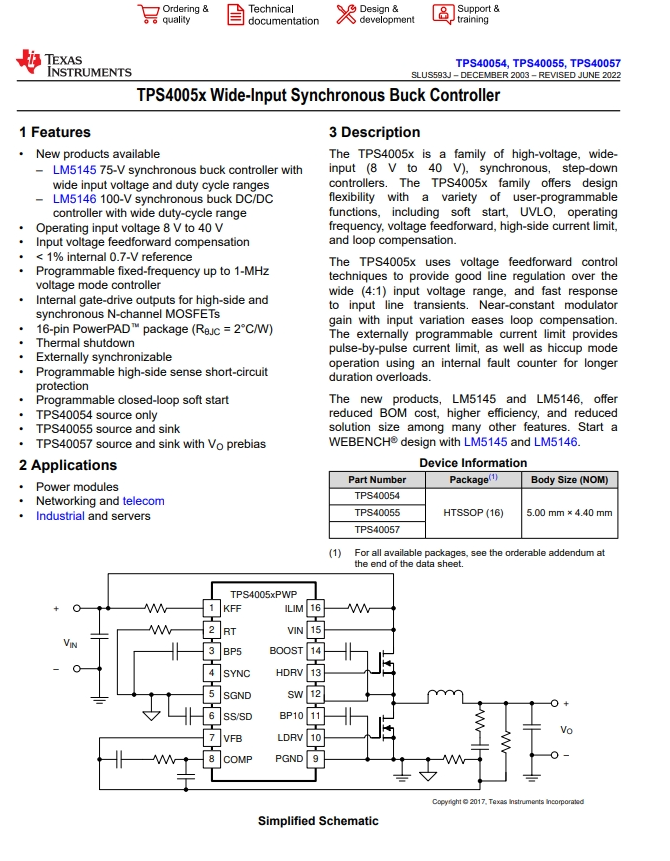

Product datasheet
For more information, please download
