Product Description
ANSC PART# | ANSC-SN5407J |
Part# | SN5407J |
Type： | chip |
Manufactor | Original |
DC | new |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Buffers & Line Drivers |
| Number of Input Lines: | 6 Input |
| Number of Output Lines: | 6 Output |
| Polarity: | Non-Inverting |
| High Level Output Current: | - 250 uA |
| Low Level Output Current: | 30 mA |
| Supply Voltage - Max: | 5.5 V |
| Supply Voltage - Min: | 4.5 V |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | + 125 C |
| Mounting Style: | Through Hole |
| Package / Case: | CDIP-16 |
| Packaging: | Tube |
| Brand: | Texas Instruments |
| Function: | Buffer/Driver |
| Height: | 4.57 mm |
| Input Signal Type: | Single-Ended |
| Length: | 19.56 mm |
| Logic Family: | TTL |
| Logic Type: | Bipolar |
| Number of Channels: | 5 |
| Operating Supply Voltage: | 4.5 V to 5.5 V |
| Output Type: | Open Collector |
| Pd - Power Dissipation: | 145 mW |
| Product Type: | Buffers & Line Drivers |
| Propagation Delay Time: | 26 ns at 5 V |
| Series: | SN5407 |
| Factory Pack Quantity: | 25 |
| Subcategory: | Logic ICs |
| Technology: | Bipolar |
| Width: | 6.92 mm |
| Unit Weight: | 0.042329 oz |

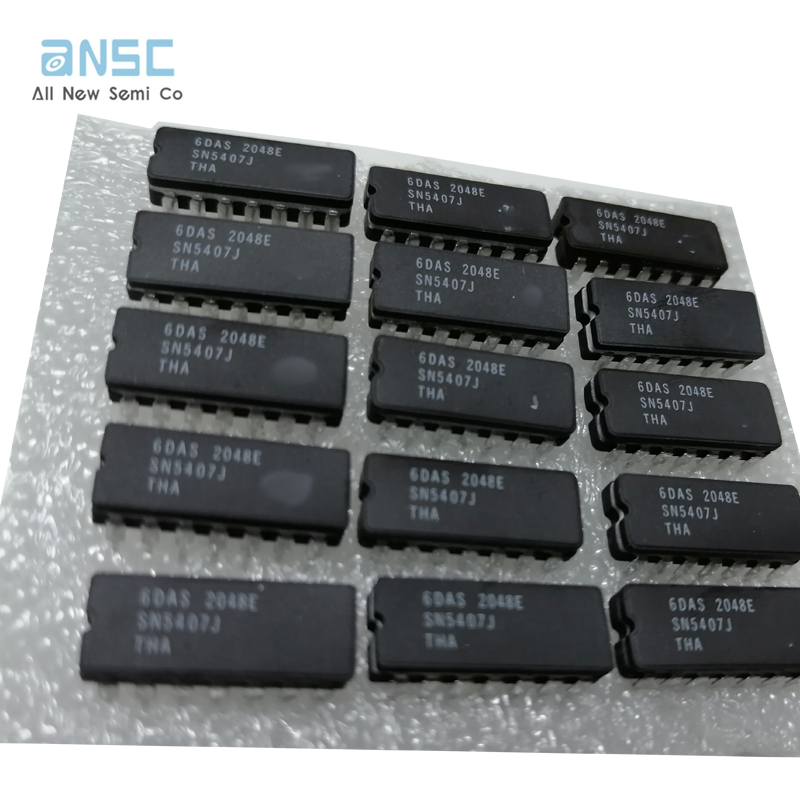

Actual image of the product

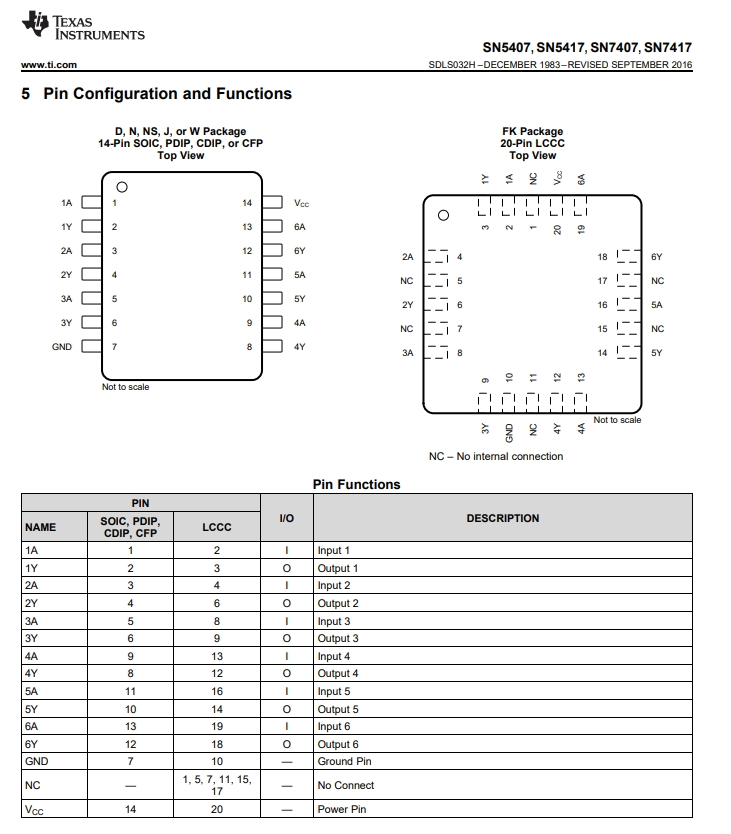

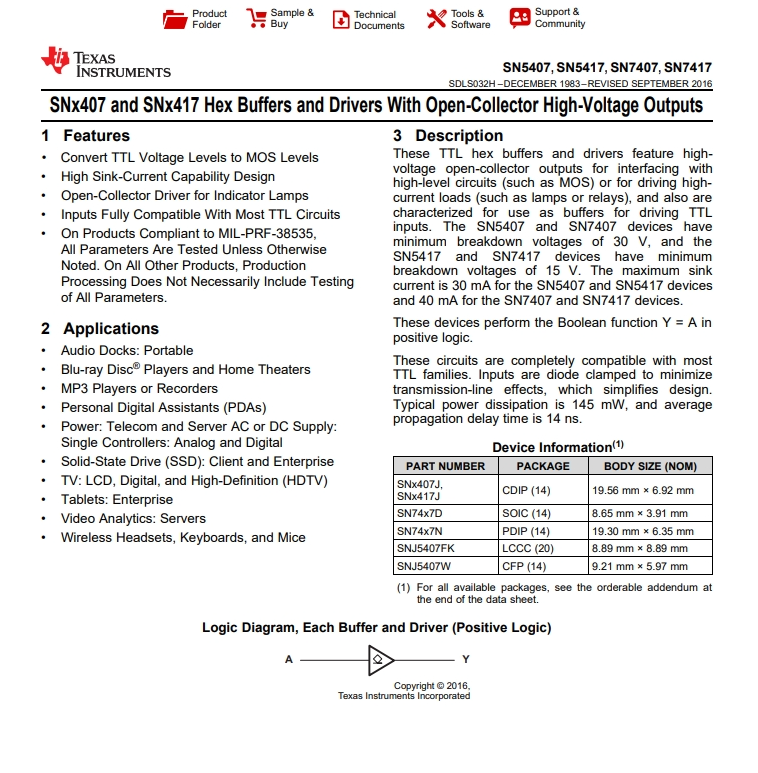

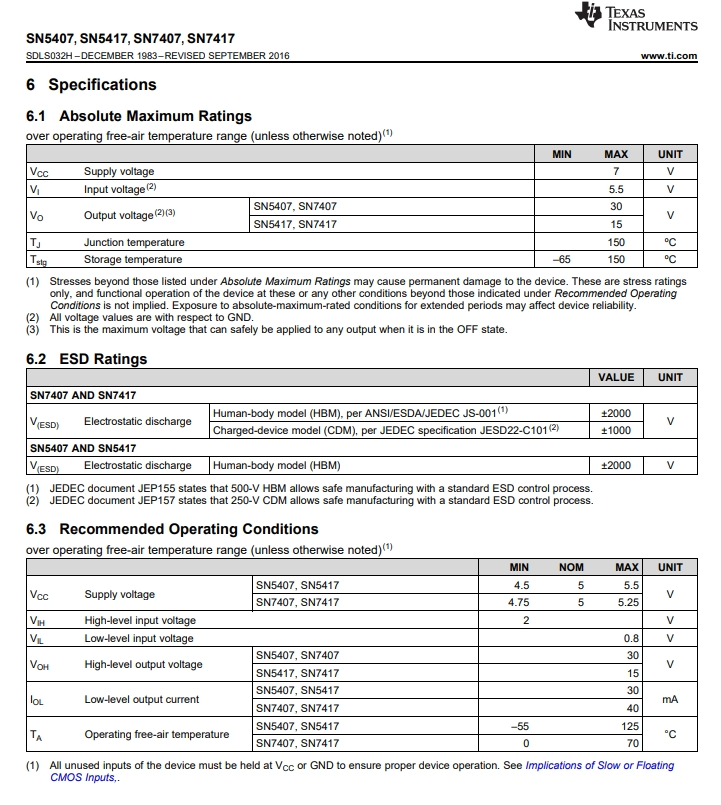

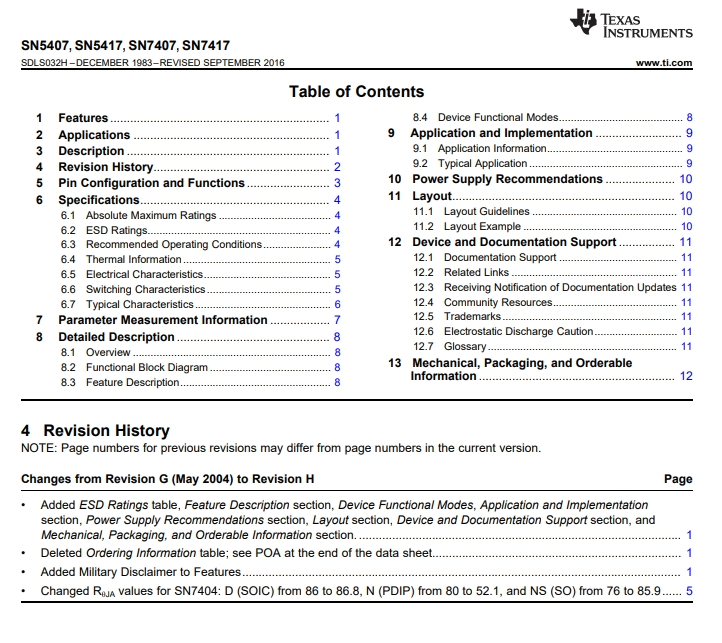

Product datasheet
For more information, please download
