CY7C109B-20VI Product details
Functional Description
The CY7C109B / CY7C1009B is a high-performance CMOS static RAM organized as 131,072 words
by 8 bits. Easy memory expansion is provided by an active LOW Chip Enable (CE1), an active HIGH Chip Enable (CE2), an active LOW Output Enable (OE), and three-state drivers.
Writing to the device is accomplished by taking Chip Enable One (CE1) and Write Enable (WE)
inputs LOW and Chip Enable Two (CE2) input HIGH. Data on the eight I/O pins
(I/O0 through I/O7) is then written into the location specified on the address pins (A0 through A16).
Features
? High speed
— tAA = 12 ns
? Low active power
— 495 mW (max. 12 ns)
? Low CMOS standby power
— 55 mW (max.) 4 mW
? 2.0V Data Retention
? Automatic power-down when deselected
? TTL-compatible inputs and outputs
? Easy memory expansion with CE1, CE2, and OE options
Product Description
| Part# | CY7C109B-20VI |
| Type： | Integrated Circuits (ICs)Memory |
| Manufactor | CYPRESS |
| DC | new |
| Package / Case | SOJ32 |
| Supplier Device Package | Tube |
| Description | IC SRAM 1MBIT PARALLEL 32SOJ |
Actual image of the product

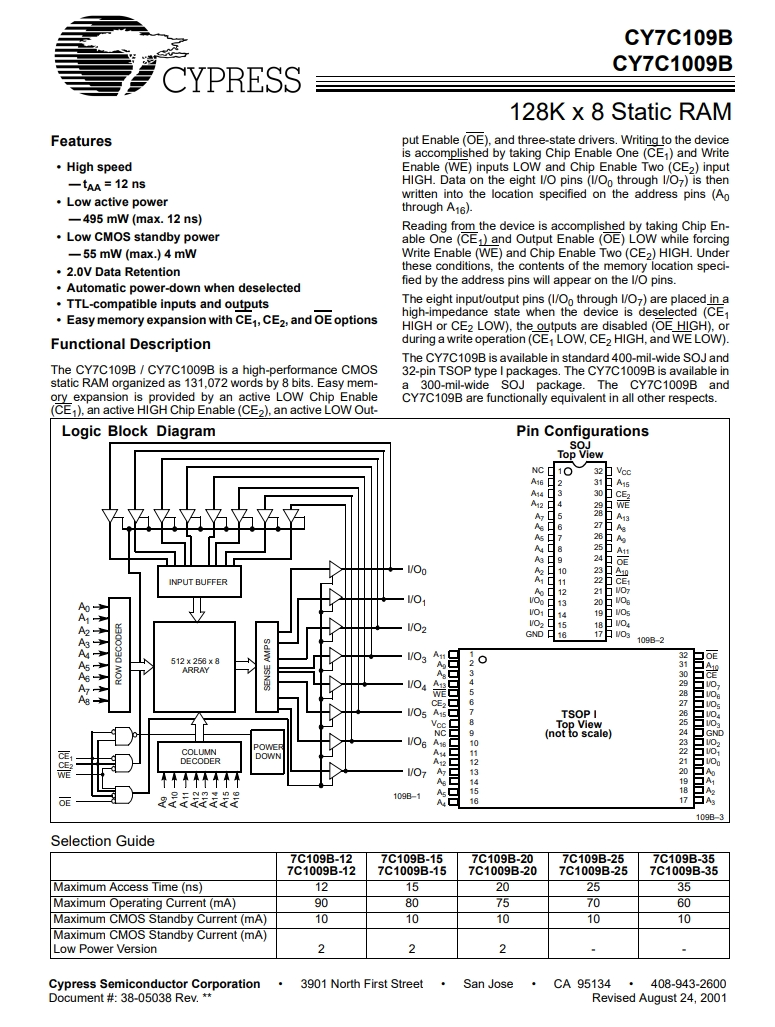

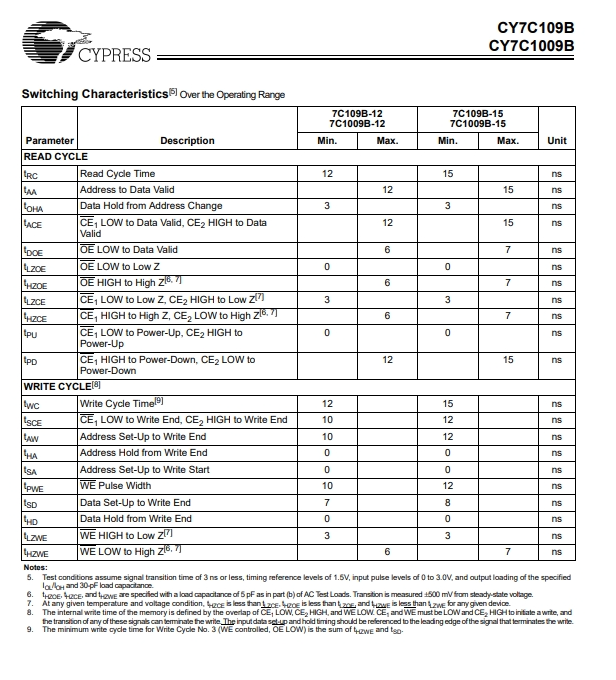

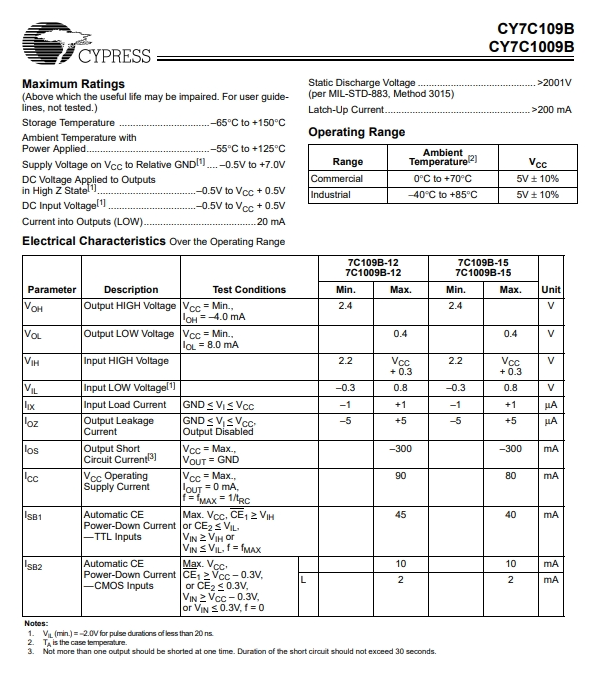

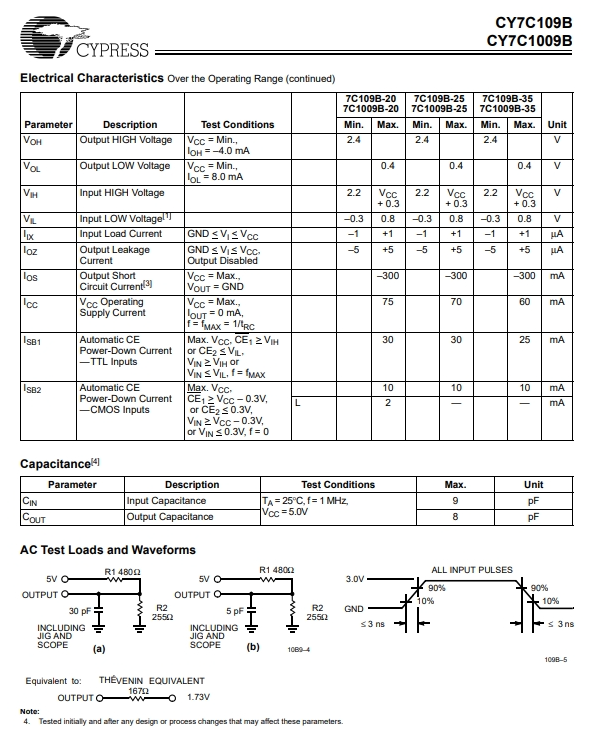

Product datasheet
For more information, please download
