DESCRIPTION The X9241 integrates four nonvolatile E2POT digitally controlled potentiometers on a monolithic CMOS microcircuit. The X9241 contains four resistor arrays, each composed of 63 resistive elements. Between each element and at either end are tap points accessible to the wiper elements. The position of the wiper element on the array is controlled by the user through the two-wire serial bus interface.
?Four E2POTs in One Package ?Two-Wire Serial Interface ?Register Oriented Format —Directly Write Wiper Position —Read Wiper Position —Store as Many as Four Positions per Pot ?Instruction Format —Quick Transfer of Register Contents to Resistor Array —Cascade Resistor Arrays ?Low Power CMOS ?Direct Write Cell —Endurance - 100,000 Data Changes per Register —Register Data Retention - 100 years ?16 Bytes of E2PROM memory ?3 Resistor Array Values —2K?to 50K?Mask Programmable —Cascadable For Values of 500?to 200K? ?Resolution: 64 Taps each Pot ?20-Lead Plastic DIP, 20-Lead TSSOP and 20-Lead SOIC Packages |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - X9241WV |
| Ihs Manufacturer | XICOR INC |
| Package Description | PLASTIC, TSSOP-20 |
| Additional Feature | NONVOLATILE MEMORY |
| Control Interface | 2-WIRE SERIAL |
| Converter Type | DIGITAL POTENTIOMETER |
| Length | 6.5 mm |
| Number of Functions | 4 |
| Number of Positions | 64 |
| Number of Terminals | 20 |
| Operating Temperature-Max | 70 °C |
| Operating Temperature-Min | |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Equivalence Code | TSSOP20,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Qualification Status | Not Qualified |
| Resistance Law | LINEAR |
| Resistance Tolerance-Max | 20% |
| Resistor Terminal Voltage-Max | 5 V |
| Resistor Terminal Voltage-Min | -5 V |
| Seated Height-Max | 1.2 mm |
| Supply Voltage-Nom | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Coefficient-Nom |
300 ppm/°C |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Total Resistance-Nom |
10000 Ω |
| Width | 4.4 mm |

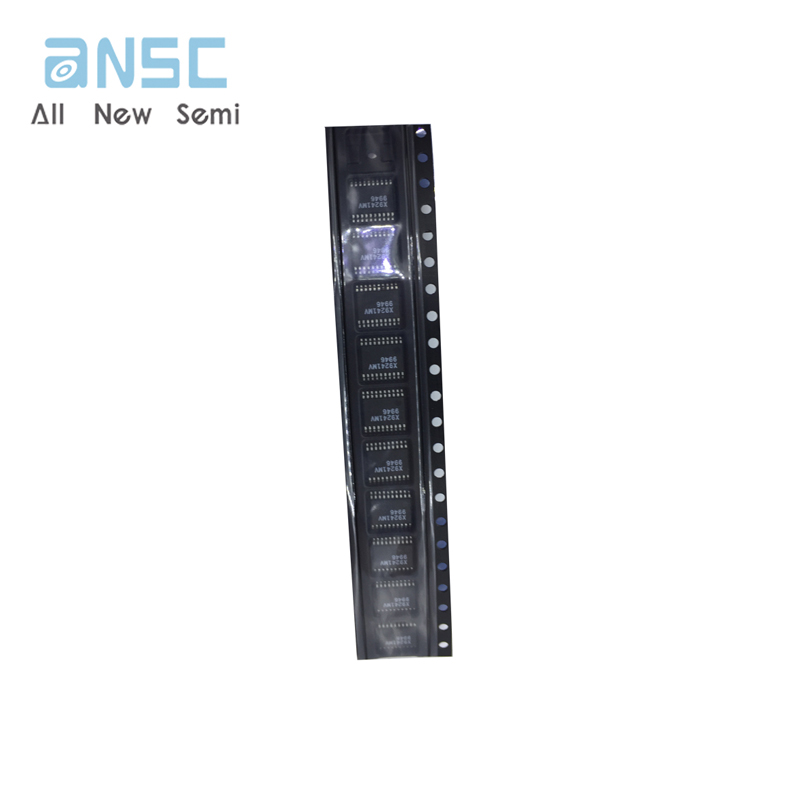

Product Photos
