Product Details
|

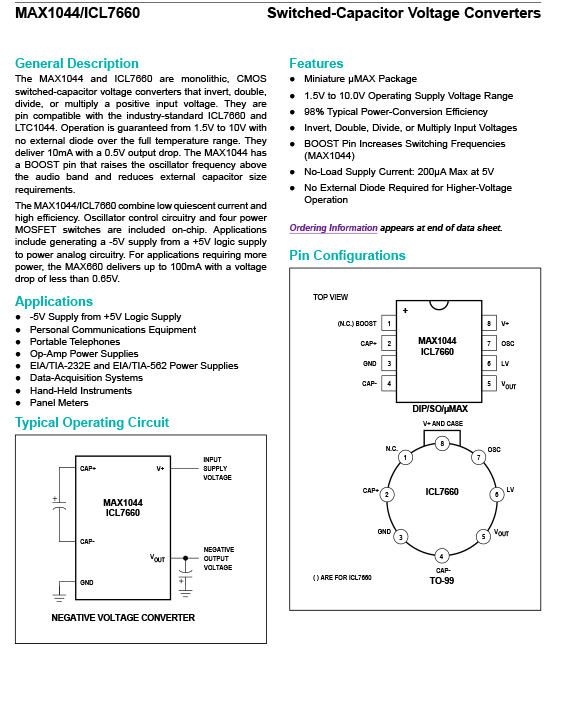

General Description The MAX1044 and ICL7660 are monolithic, CMOS switched-capacitor voltage converters that invert, double, divide, or multiply a positive input voltage. They are pin compatible with the industry-standard ICL7660 and LTC1044. Operation is guaranteed from 1.5V to 10V with no external diode over the full temperature range. They deliver 10mA with a 0.5V output drop. The MAX1044 has a BOOST pin that raises the oscillator frequency above the audio band and reduces external capacitor size requirements. The MAX1044/ICL7660 combine low quiescent current and high efficiency. Oscillator control circuitry and four power MOSFET switches are included on-chip. Applications include generating a -5V supply from a +5V logic supply to power analog circuitry. For applications requiring more power, the MAX660 delivers up to 100mA with a voltage drop of less than 0.65V. Features ● Miniature μMAX Package ● 1.5V to 10.0V Operating Supply Voltage Range ● 98 Typical Power-Conversion Efficiency ● Invert, Double, Divide, or Multiply Input Voltages ● BOOST Pin Increases Switching Frequencies (MAX1044) ● No-Load Supply Current: 200μA Max at 5V ● No External Diode Required for Higher-Voltage Operation Applications ● -5V Supply from +5V Logic Supply ● Personal Communications Equipment ● Portable Telephones ● Op-Amp Power Supplies ● EIA/TIA-232E and EIA/TIA-562 Power Supplies ● Data-Acquisition Systems ● Hand-Held Instruments ● Panel Meters |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- ICL7660 |
| Part# | ICL7660 |
| Type： | Integrated Circuits |
| Manufactor | Original |
| DC | new |
| Part Status | Active |
| Product packaging | SOP8 |

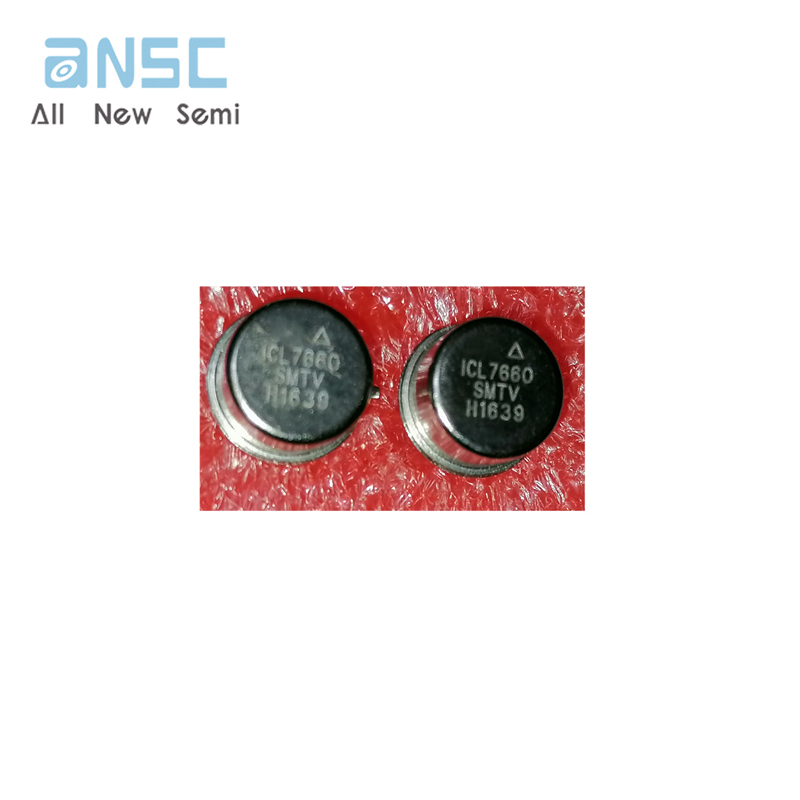

Product Photos

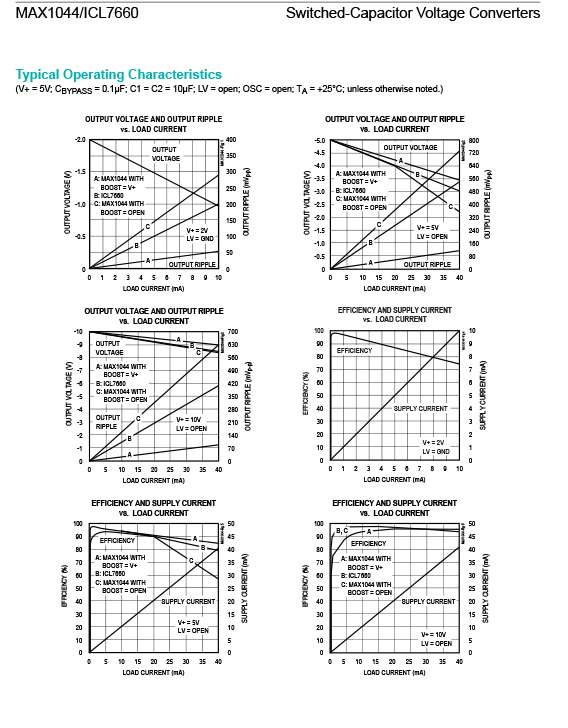

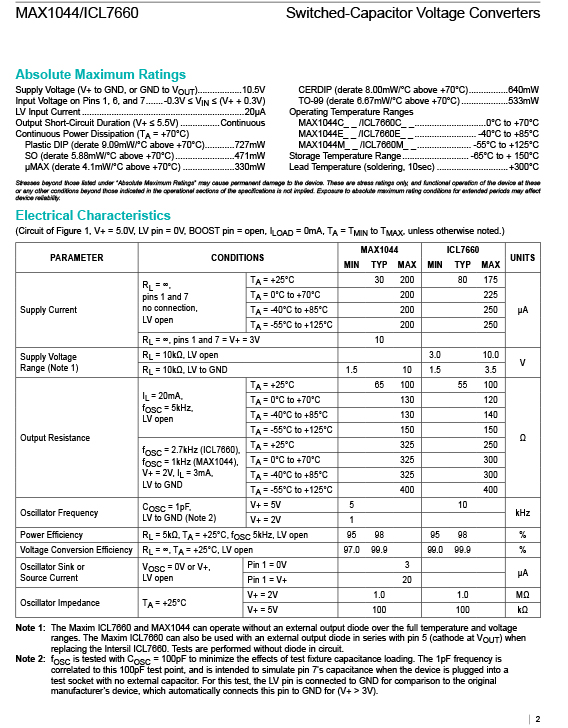

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
