Product Details
GENERAL DESCRIPTION

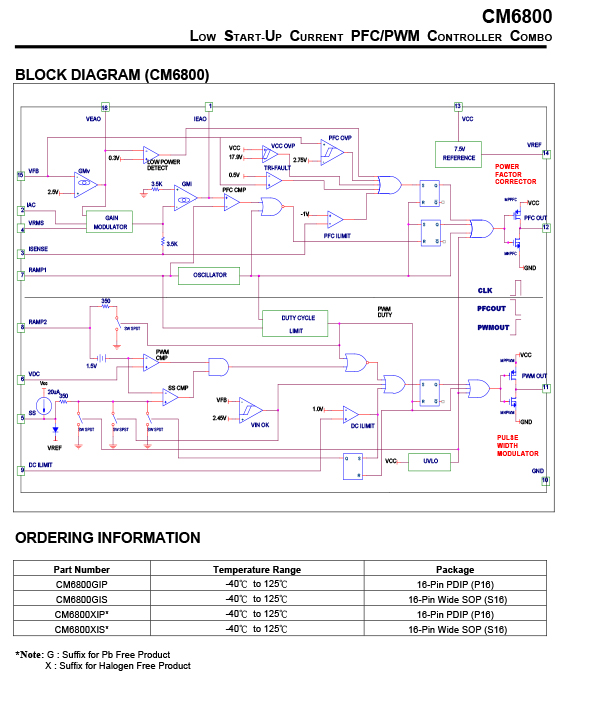

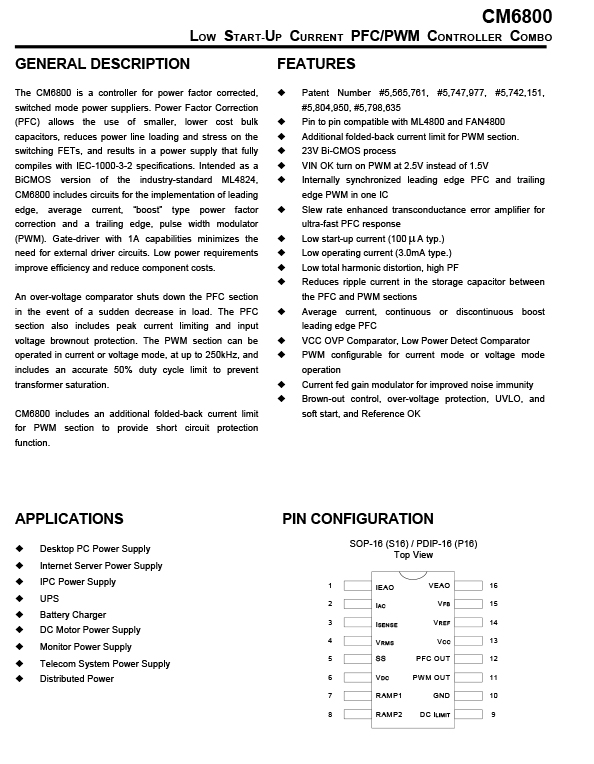

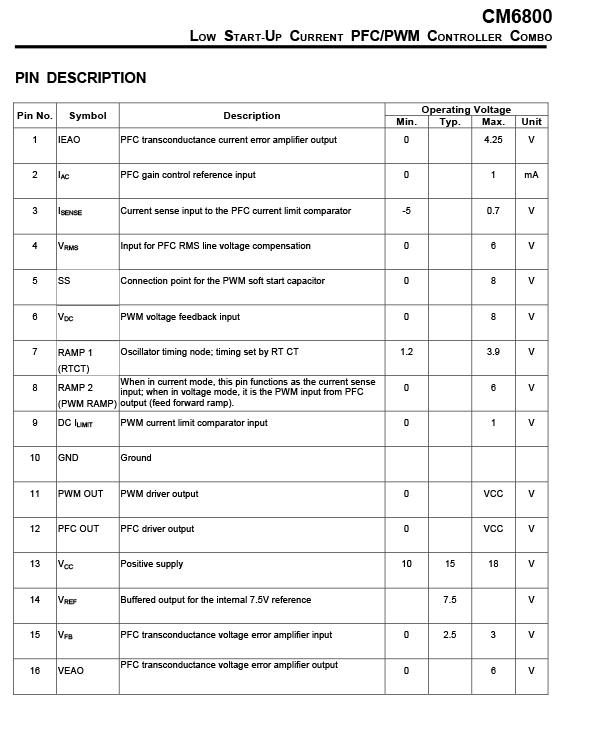

The CM6800 is a controller for power factor corrected, switched mode power suppliers. Power Factor Correction (PFC) allows the use of smaller, lower cost bulk capacitors, reduces power line loading and stress on the switching FETs, and results in a power supply that fully compiles with IEC-1000-3-2 specifications. Intended as a BiCMOS version of the industry-standard ML4824,
CM6800 includes circuits for the implementation of leading edge, average current, “boost” type power factor correction and a trailing edge, pulse width modulator (PWM). Gate-driver with 1A capabilities minimizes the need for external driver circuits. Low power requirements improve efficiency and reduce component costs.
FEATURES
Pin to pin compatible with ML4800 and FAN4800
Additional folded-back current limit for PWM section.
23V Bi-CMOS process
VIN OK turn on PWM at 2.5V instead of 1.5V
Internally synchronized leading edge PFC and trailing edge PWM in one IC
Slew rate enhanced transconductance error amplifier for ultra-fast PFC response
Low start-up current (100μA typ.)
Low operating current (3.0mA type.)
Low total harmonic distortion, high PF
Reduces ripple current in the storage capacitor between the PFC and PWM sections
Average current, continuous or discontinuous boost leading edge PFC
VCC OVP Comparator, Low Power Detect Comparator
PWM configurable for current mode or voltage mode operation
Current fed gain modulator for improved noise immunity
Brown-out control, over-voltage protection, UVLO, and soft start, and Reference OK
Product Description
| Type# | Description |
| ANSC PART# |
ANSC- CM6800G |
| Part# | CM6800G |
| Type： | Integrated Circuits |
| Manufactor | Original |
| DC | new |
| Part Status | Active |

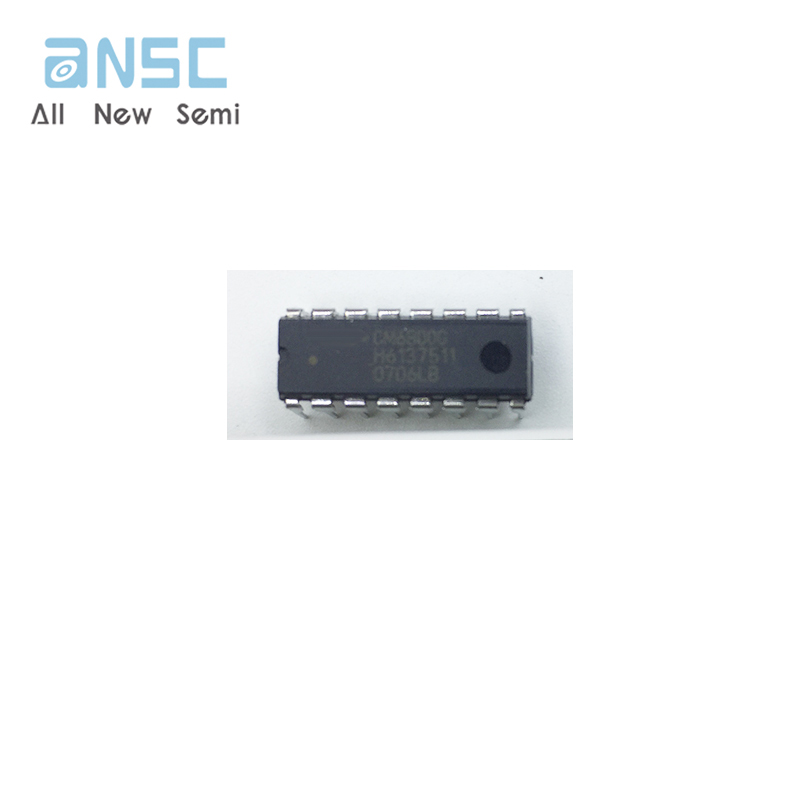

| Product packaging | DIP16 |
Product Photos
Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
