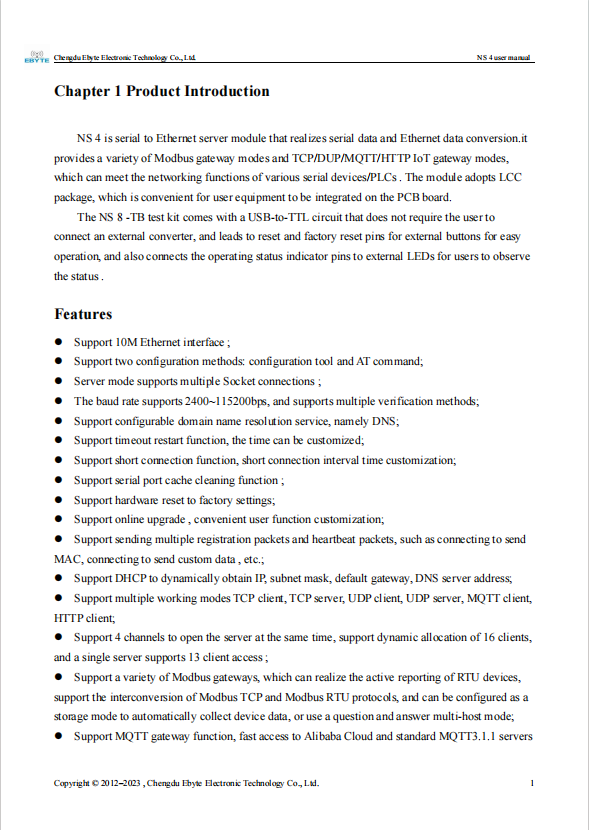

Product Descriptions
NS 4 is serial to Ethernet server module that realizes serial data and Ethernet data conversion.it provides a variety of Modbus gateway modes and TCP/DUP/MQTT/HTTP IoT gateway modes, which can meet the networking functions of various serial devices/PLCs . The module adopts LCC package, which is convenient for user equipment to be integrated on the PCB board.
The NS 8 -TB test kit comes with a USB-to-TTL circuit that does not require the user to connect an external converter, and leads to reset and factory reset pins for external buttons for easy operation, and also connects the operating status indicator pins to external LEDs for users to observe the status .
Product Features
? Support 10M Ethernet interface ;
? Support two configuration methods: configuration tool and AT command;
? Server mode supports multiple Socket connections ;
? The baud rate supports 2400~115200bps, and supports multiple verification methods;
? Support configurable domain name resolution service, namely DNS;
? Support timeout restart function, the time can be customized;
? Support short connection function, short connection interval time customization;
? Support serial port cache cleaning function ;
? Support hardware reset to factory settings;
? Support online upgrade , convenient user function customization;
? Support sending multiple registration packets and heartbeat packets, such as connecting to send MAC, connecting to send custom data , etc.;
? Support DHCP to dynamically obtain IP, subnet mask, default gateway, DNS server address;
? Support multiple working modes TCP client, TCP server, UDP client, UDP server, MQTT client, HTTP client;
? Support 4 channels to open the server at the same time, support dynamic allocation of 16 clients, and a single server supports 13 client access ;
? Support a variety of Modbus gateways, which can realize the active reporting of RTU devices, support the interconversion of Modbus TCP and Modbus RTU protocols, and can be configured as a storage mode to automatically collect device data, or use a question and answer multi-host mode;

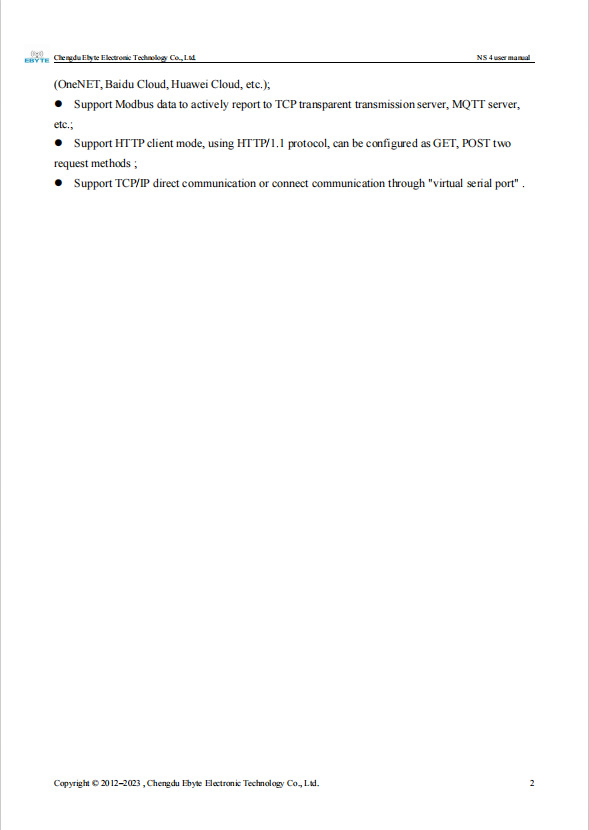

? Support MQTT gateway function, fast access to Alibaba Cloud and standard MQTT3.1.1 servers (OneNET, Baidu Cloud, Huawei Cloud, etc.);
? Support Modbus data to actively report to TCP transparent transmission server, MQTT server, etc.;
? Support HTTP client mode, using HTTP/1.1 protocol, can be configured as GET, POST two request methods ;
? Support TCP/IP direct communication or connect communication through "virtual serial port" .
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NS4 |
| Operating Voltage | 3.0～5.5V (DC) |
| Working current | 200mA @ 5V |
| Serial port level | TTL level (3.3V) |
| Operating mode | TCP Server (default), TCP Client, UDP Server, UDP Client, HTTP Client, MQTT Client |
| Socket connection | The TCP server supports up to 16 client connections |
| Network protocol | IP, TCP/UDP, IPv4, ICMP, APR, DHCP, DNS, HTTP, MQTT |
| IP address | Customizable (default, 192.168.3.7) |
| DNS | support |
| DNS domain name resolution server | Customizable (default 114.114.114.114) |
| configuration method | Configuration tools, AT commands |
| local port | Can be customized (default, channel 1 to channel 4: 8001-8004) |
| subnet mask | 255.255.255.0 (default, customizable) |
| gateway | 192.168.3.1 (default, customizable) |
| Serial cache | 512Byte |
| packaging mechanism | 512 Bytes |
| Serial baud rate | 2400 ~ 115200 bps (default 115200) |
| data bit | 8 |
| stop bit | 1 (default), 2 |
| Check Digit | None (default), Odd, Even |
| Product Size | 27×27×2.8mm (L×W×H) |
| product weight | 3.5g |
| Working temperature and humidity | -40 ～ +85℃, 5% ～ 95%RH (no condensation) |
| storage temperature and humidity | -40 ～ +105℃, 5% ～ 95%RH (no condensation) |

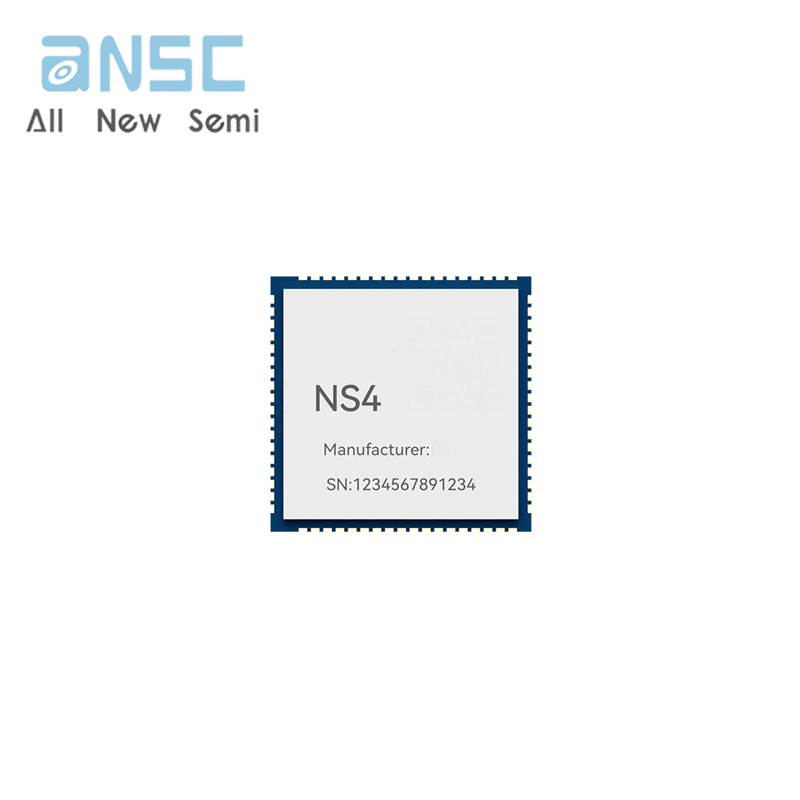

Actual product photos

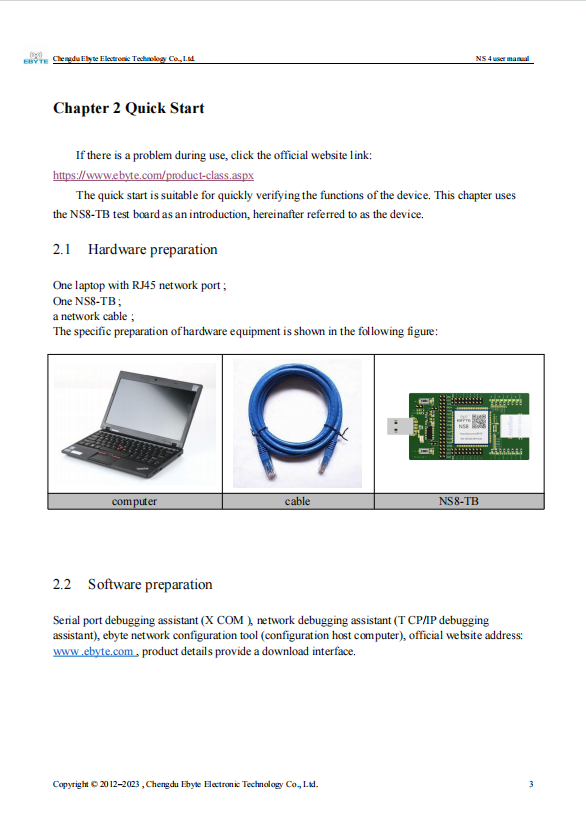

Product Data Manual：
For more product information, please download the PDF
