Product Features
? RJ45 adaptive 10M Ethernet interface;
? Support multiple working modes (TCP Server, TCP Client, UDP Server, UDP Client, HTTPC, MQTTC);
? Support three configuration methods: configuration tool, web page and AT command;
? Server mode supports multiple socket connections;
? Support multiple baud rates;
? Support multiple check (None, Odd, Even, Mark, Space);
? Support multiple serial flow control configurations (NONE,CTS/RTS, DSR/DTR, XON/XOFF);
? Support DHCP function;
? Support DNS (domain name resolution), and custom domain name resolution server;
? Support multiple Modbus gateways (simple protocol conversion, multi-host mode, storage gateway, configurable gateway, etc.);
? Supports quick access to Alibaba Cloud, Baidu Cloud, OneNET, Huawei Cloud, and standard MQTT servers of version 3.1;
? Support HTTP protocol (GET/POST request)
? Support virtual serial port;
? Support timeout restart function, time can be customized;
? Support short connection function, short connection interval time customization;
? Support heartbeat package and registration package function;
? Support serial port cache cleaning function;
? Support access to external network and local area network;
? Support hardware reset to factory settings;
? Support online upgrade function.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NT1 |
| Operating \bltage | DC 3.0 ~ 5V |
| current drain | Standby: 40mA @ 3.3V Peak: 300mA@3.3V Standby: 30mA @ 5V Peak: 250mA@5V |
| Interface | TTL(2.54 mm Pin) Ethernet port (RJ45) |
| Work Mode | TCP Server、TCP Client. UDP Server、UDP Client. HTTP Client. MQTT Client(default TCP Server) |
| Socket connection | Support 6-way client connection (TCP server mode) |
| Network protocol | IPv4、TCPUDP、HTTP、MQTT |
| How to get IP | DHCP、Static IP (default static IP) |
| DNS | Support |
| DNS server | Customizable (default 114.114.114.114) |
| Configuration method | Web pages, configuration tools, AT commands |
| IP address | Customizable (default 192.168.3.7) |
| local port | Customizable (default 8887) |
| subnet mask | Customizable (default 255.255.255.0) |
| gateway | Customizable (default 192.168.3.1) |
| target IP | Customizable (default 192.168.33) |
| destination port | Customizable (default 8888) |
| Serial port cache | 1024Byte |
| Packaging mechanism | 512 Byte |
| Serial port baud rate | 1200 ~ 230400 bps (default 115200) |
| data bits | 5、6、7、8 (default 8) |
| stop bit | 1、2 (default 1) |
| Check Digit | None、Odd、Even、Mark, Space (defaultNone) |
| Flow Control | NONE. CTSRTS、DSRDTR、XONXOFF(defaultNone) |
| Product Size | 35mm * 22mm * 21mm (length*width*height) |
| product weight | 9.0g ± lg |
| Working temperature and humidity | -40 ~ +85℃、5% ~ 95%RH (no condensation) |
| Storage temperature and humidity | -40 ~ +105℃s 5% - 95%RH (no condensation) |

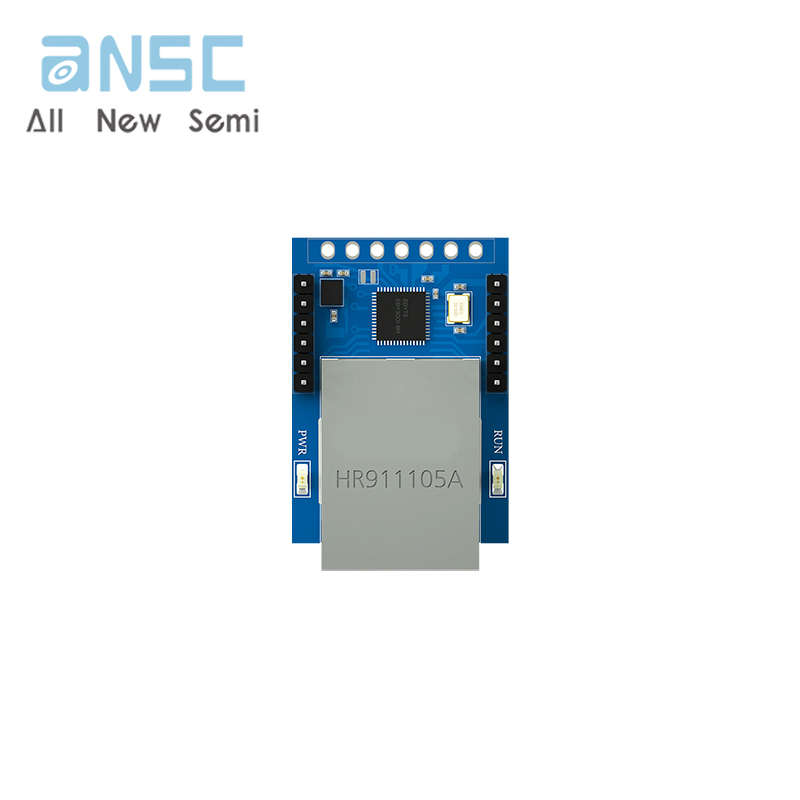

Actual product photos
