Product Descriptions

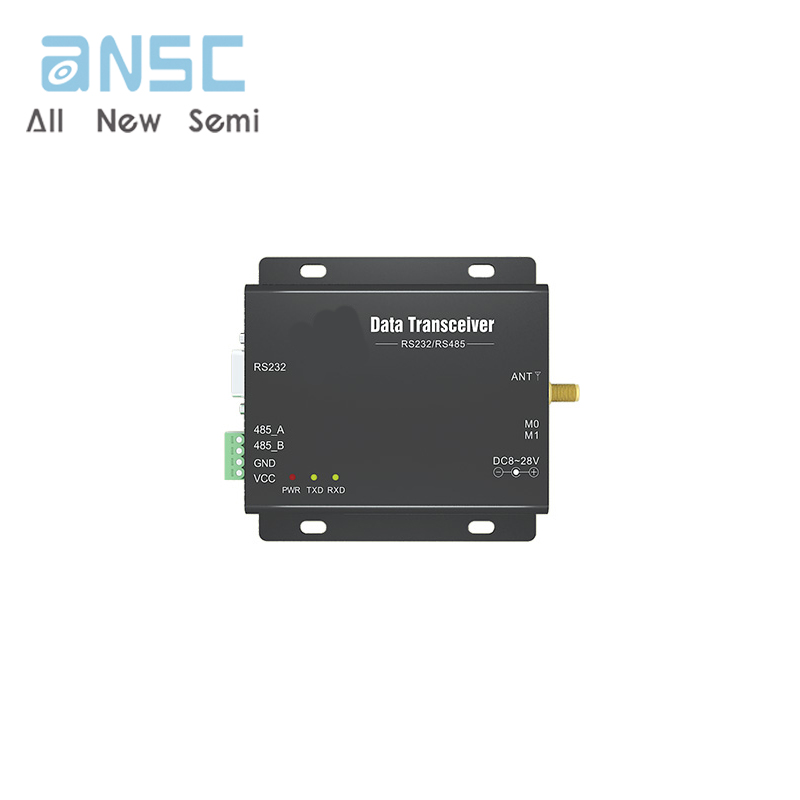

E32-DTU (170L30) is a wireless data transceiver of 170M with standard RS232/RS485 connectors. They are half- duplex. TX & RX modems with LoRa technology and transparent transmission mode. Voltage supply ranges from 8V to 28V, Working frequency :160-173.5MHz (Default:170MHz).
The LoRa direct sequence spread spectrum technology enables the longer communication distance and better power density concentration as well as superior anti-interference ability. The FEC algorism enables higher coding efficiency and correction ability. The interfered data packets will be corrected proactively upon sudden interference which significantly improves reliability and communication distance. Without FEC, the interfered data packet will be dropped. The transceivers feature data encryption and compression. The data transmitted in air features randomness, the rigorous algorism makes data interception meaningless, The data compression function has possibility to reduce the data transmission time, which in turn reduces the possibility of being interfered, thus improves the reliability and communication efficiency.
Specifications
| Attribute | Attribute value | Notes |
| ANSM-Part# | ANSM-E32-DTU(170L30) | |
| Working frequency | 160~173.5 MHz | Default: 170MHz |
| Transmitting power | 30 dBm | About 1W |
| Receiving sensitivity | -147 dBm | Air data rate: 2.4kbps |
| Air data rate | 0.3k~9.6kbps | Default: 2.4kbps |
| Test distance | 8000 meter | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,air data rate: 2.4kbps |
| Size | 82 * 62 * 25 mm | |
| Antenna type | SMA-K | |
| Communication interface | RS232 / RS485 | Baud rate: 1200~115200, default: 9600 |
| Package | DB-9 / Screwing | Standard DB9 Hole/3.81 connecting terminal |
| Buffer | 512 bytes buffer | 512 bytes buffer |
| Working voltage (V) | 8~28 | |
| Emission current (mA) | 561~686 | |
| Working temperature (° C) | -40~+125 |
