Product Descriptions

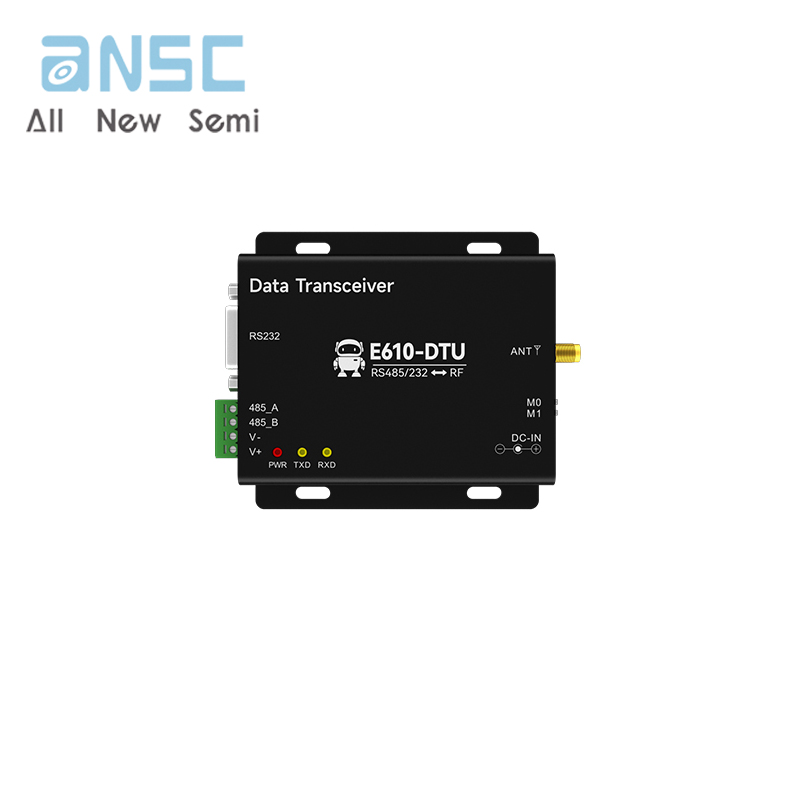

The E610-DTU (433C30) and E610-DTU (433C20) are continuous transmission type 433M wireless data transmission modules with built-in high performance microcontroller and wireless transceiver chip. The E610-DTU and E610-DTU (433C20) are

continuous transmission modules that can transmit continuously at different serial port baud rates and have low data output delay at the receiving end, making them suitable for fast transmission of large data volumes. As a communication medium,

wireless digital radio, like optical fibre, microwave and open wire, has a certain scope of application: it provides real-time and reliable data transmission of monitoring signals in special networks under certain special conditions, with low cost, easy

installation and maintenance, strong bypass capability, flexible network structure and far coverage, suitable for many points and scattered, complex geographical environment, etc. It can be connected with PLC, RTU, rain gauge, liquid level meter and

other data terminals.

Product Features

? support for automatic relay networking in general mode, multi-level relay for ultra-long distance communication, multiple networks running simultaneously in the same area;

? simple and efficient power supply design, supporting power supply setter or crimping method, supporting 8 to 28V power supply;

? Using temperature compensation circuit, frequency stability better than ±1.5PPM;

? All aluminum alloy housing, compact size, easy installation, good heat dissipation; perfect shielding design, good electromagnetic compatibility, strong anti-interference ability;

? Multiple protection functions such as power reverse protection, over-connection protection and antenna surge protection, which greatly increase the reliability of the radio;

? Powerful software functions, all parameters can be set by programming: such as power, frequency, air rate, address ID, etc;

? Ultra low power consumption, the 12V supply watchdog current is only 16mA, the transmit current ≤ 0.4A;

? Built-in watchdog with precise time layout, in case of abnormality, the radio will restart automatically and can continue to work according to the previous parameter settings;

? Supporting data transmission rates from 0.5k to 470kbps;

? E610-DTU (433C30) with built-in PA+LNA+SAW, communication distance up to 10km under ideal conditions;

? E610-DTU (433C20) with built-in LNA+SAW, communication distance up to 6km under ideal conditions;

? Support RSSI signal strength indication function for evaluating signal quality, improving communication network and ranging;

? supporting user-set communication key, and cannot be read, which greatly improves the confidentiality of user data;

? Parameters are saved at power-down, and the radio will work according to the set parameters after power-up again;

? Working temperature range: -40℃～+85℃, adapt to various harsh working environment, real industrial grade product;

? industrial-standard design, supporting extended use at -40 to +85°C.

Specifications

Actual product photos

Product Data Manual：

For more product information, please download the PDF
