Product Descriptions
The E90-DTU (900SL22-ETH) supports adaptive network speed (up to 100M full-duplex) and provides four working modes: TCP Server, TPC Client, UDP Server, and UDP Client. It also supports two-way SOCKET work. The wireless communication adopts.
LoRa direct sequence spread spectrum technology, which will bring longer communication distance and has the advantages of concentrated power density and strong anti-interference ability. It has a software FEC forward error correction algorithm,
which has high coding efficiency and strong error correction capability,. In the case of sudden interference, it can actively correct the interfered data packets,greatly improving reliability and transmission distance, and helping users to efficiently
Complete transparent transmission of long-distance data. Users can configure it through the WEB webpage.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-E90-DTU(900SL22-ETH) |
| Power supply | 8V~28VDC，will burn over 28V，12V or 24V is recommended |
| Ethernet specification | RJ45，support 10/100Mbps |
| Network protocol | IP、 TCP/UDP、 ARP、 ICMP、 IPV |
| Simple transparenttransmission | TCP Server、TCP Client、UDP Server、UDP Client、Cloud transparenttransmission |
| TCP Server connection | Max of 6 channel TCP connection |
| IP acquisition method | Static IP、 DHCP |
| DNS | Available |
| Configured by user | Web page configuration |
| Antenna interface | SMA |
| Operating temperature | -40 ~ +85℃ |
| Operating humility | 10% ~ 90%，Relative humidity, no condensation |
| Size | 82*84*25 (mm) |
| Average weight | 130±5g |
| Storage temperature | -40～+125℃ |
| Frequency（MHz） | 850.125~930.125 |
| TX current（mA） | 142.9mA@12V，Instant power consumption |
| RX current（mA） | 70.4mA@12V |
| Max tx power（dBm） | 22.0dBm |
| Max tx power（dBm） | -146~-148dBm，Air data rate 0.3 kbps |
| Air data rate（bps） | 0.3k~62.5k，Configured by user |
| Distance | 5000m，In open and clear air，antenna gain 5dBi，at height of 2.5 m，air data rate 2.4 kbps |
| Transmission length | 240 Btye，Can be set as 32/64/128/240 bytes each packet |
| Receiving length | 1000 Btye |
| Modulation method | New generation LoRa |

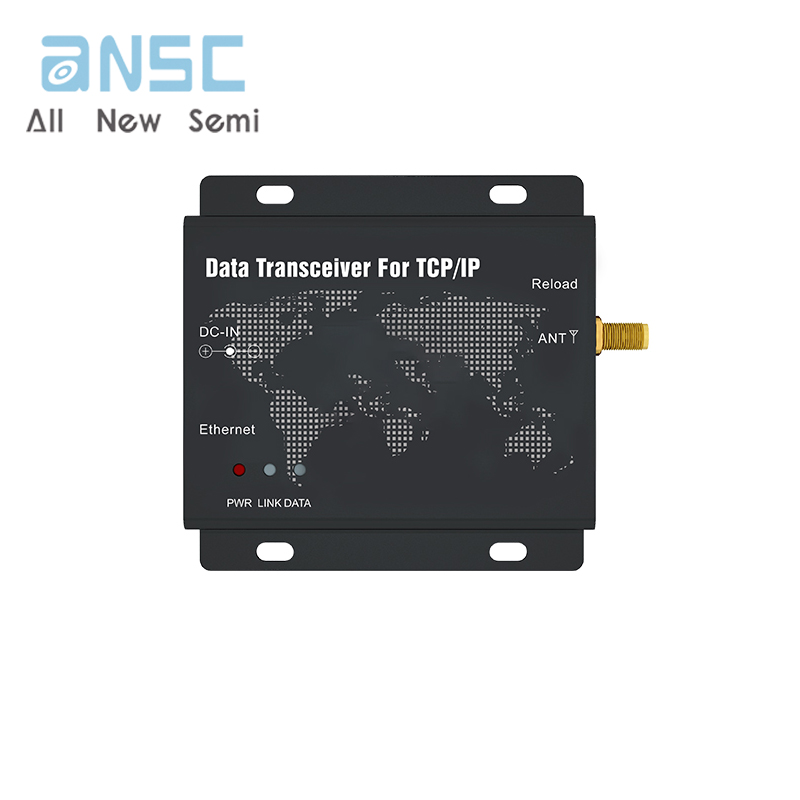

Actual product photos
