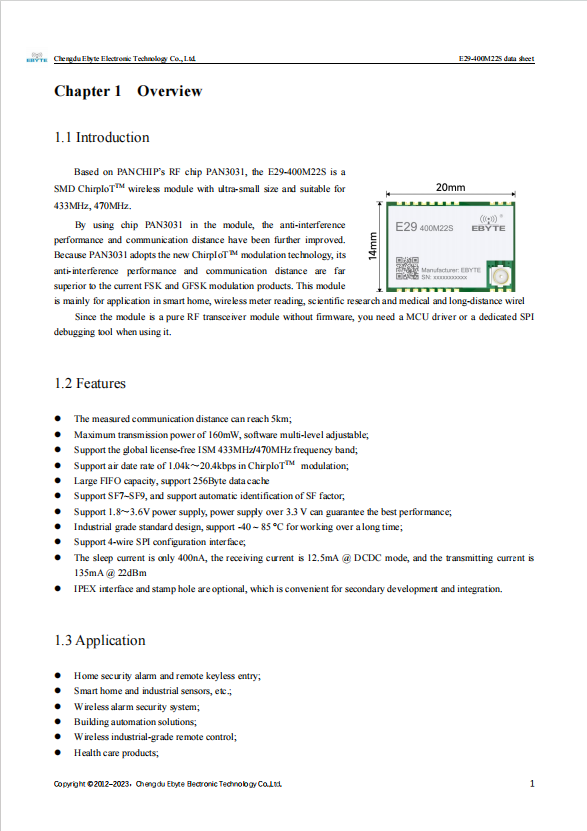

Product Descriptions
Based on PANCHIP’s RF chip PAN3031, the E29-400M22S is a SMD ChirpIoTTM wireless module with ultra-small size and suitable for433MHz, 470MHz.
By using chip PAN3031 in the module, the anti-interference performance and communication distance have been further improved. Because PAN3031 adopts the new ChirpIoTTM modulation technology, its anti-interference performance and
communication distance are far superior to the current FSK and GFSK modulation products. This module is mainly for application in smart home, wireless meter reading, scientific research and medical and long-distance wirel
Since the module is a pure RF transceiver module without firmware, you need a MCU driver or a dedic
Product Features
? The measured communication distance can reach 5km;
? Maximum transmission power of 160mW, software multi-level adjustable;
? Support the global license-free ISM 433MHz/470MHz frequency band;
? Support air date rate of 1.04k～20.4kbps in ChirpIoTTM modulation;
? Large FIFO capacity, support 256Byte data cache
? Support SF7~SF9, and support automatic identification of SF factor;
? Support 1.8～3.6V power supply, power supply over 3.3 V can guarantee the best performance;
? Industrial grade standard design, support -40 ~ 85 °C for working over a long time;
? Support 4-wire SPI configuration interface;
? The sleep current is only 400nA, the receiving current is 12.5mA @ DCDC mode, and the transmitting current is 135mA @ 22dBm
? IPEX interface and stamp hole are optional, which is convenient for secondary development and integration.
Product Applications
? Home security alarm and remote keyless entry;
? Smart home and industrial sensors, etc.;
? Wireless alarm security system;
? Building automation solutions;
? Wireless industrial-grade remote control;
? Health care products;
? Advanced Meter Reading Architecture(AMI);
? Automotive industry applications.

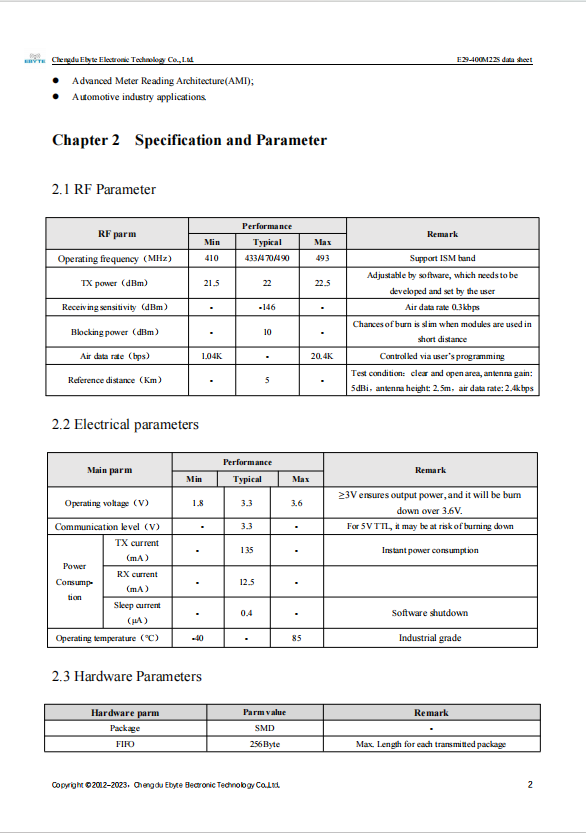

Specifications
| Attribute | Attribute value | Notes |
| ANSM-Part# | ANSM-E29-400M22S | |
| Package | SMD | - |
| FIFO | 256Byte | Max. Length for each transmitted package |
| Crystal frequency | 32MHz | Industrial grade high precision crystal oscillator |
| Modulation | Chirp? | new-generation ChirpIoT? modulation technology |
| Interface | Stamp hole | Pitch1.27mm |
| Communication Interface | SPI | |
| Size | 20* 14*2.8 mm | |
| Product Weight | 1.5g | 士0.1g |
| Antenna Interface | IPEX/Stamp hole | Equivalent impedance about 50Ω |
| Operating frequency（MHz） | 410~493 | Support ISM band |
| TX power（dBm） | 21.5~22.5 | Adjustable by software, which needs to be developed and set by the user |
| Receiving sensitivity（dBm） | -146 | Air data rate 0.3kbps |
| Blocking power（dBm） | 10 | Chances of burn is slim when modules are used in short distance |
| Air data rate（bps） | 1.04K~20.4K | Controlled via user’s programming |
| Operating voltage（V) | 1.8~3.6 | ≥3V ensures output power, and it will be burn down over 3.6V. |
| Communication level（V） | 3.3 | For 5V TTL, it may be at risk of burning down |
| Operating temperature（°C） | -40 ~ +85 | Industrial grade |
Actual product photos
Product Data Manual：
For more product information, please download the PDF
