Product Descriptions

E70-915NW30S is the star network module, operating at 915MHz, based on originally imported TI CC1310 and 15.4-Stack protocol, with coordinator and terminal as a whole. There are long range, standard range and high-speed transmission modes.

Maximum 200 nodes can send data to one coordinator. Use industry-standard AT commands for operating configuration, which greatly simplifies user operations. E70-915NW30S is the first 915MHz wireless module that solves a series of problems

caused by traditional modules. Users will spend less effort to deal with complex network protocols, which greatly reduces the difficulty of customer development and shortens the user's development period. The protocol guarantees the stability and

packet rate of the entire wireless communication system. E70-915NW30S strictly follows design standards of FCC, CE, CCC and meets various RF certification requirements for exporting.

Product Features

[Ultra-low power consumption]: The average current in sleep mode is less than 4uA.

[Three transmission formats]: In coordinator mode, it supports broadcast transmission, short address transmission, and long address transmission.

[Multiple Sends and Receives]: Supports up to 200 nodes concurrently transmitting data to ensure the reliability and timeliness of data transmission.

[AES128 encryption]: Communication uses AES128 data encryption to ensure data packet security and reliability.

[Parameter saving]: After the parameters are set by the user, the module parameters will be saved and will not be lost when the power is turned off. After the power is turned on again, the module will work according to the set parameters.

[Three transmission modes]: The firmware integrates long-distance mode, standard transmission mode, and high-speed rate mode, which is suitable for many different applications.

[Low-power node]: Can be configured as a low-power node (sleeping node) mode. In this mode, the node periodically wakes up to request data.

[8 kinds of data output modes]: Users can configure multiple data output modes to meet different demand scenarios.

[CSMA / CA]: Supports carrier sense multiple access with collision avoidance (CSMA-CA).

Specifications

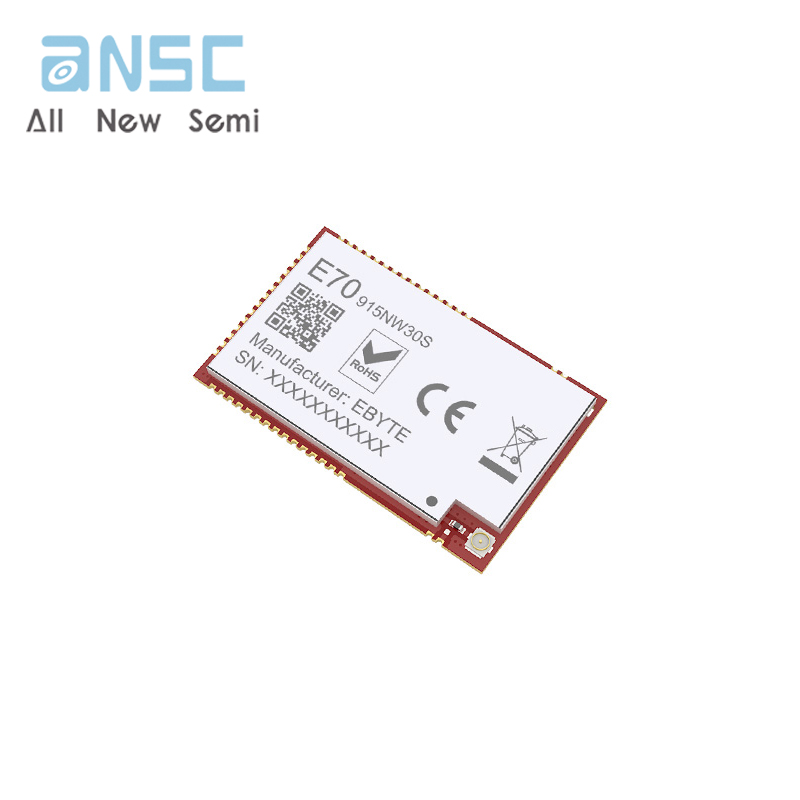

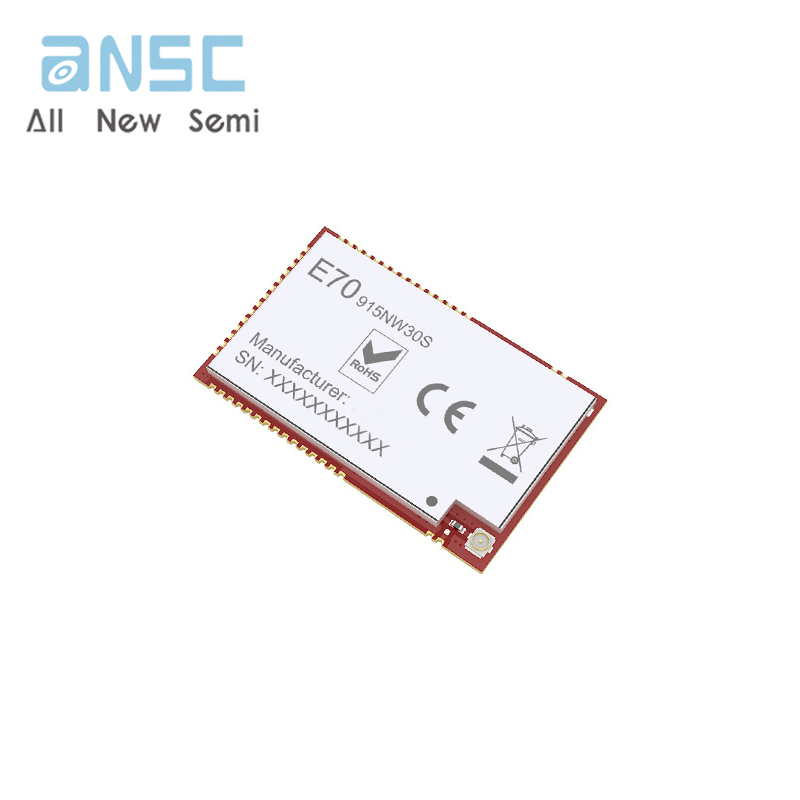

Actual product photos

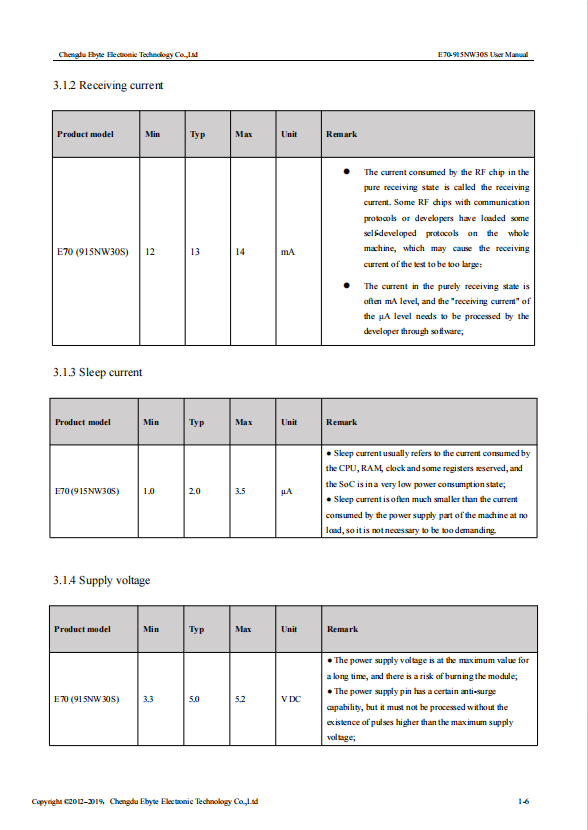

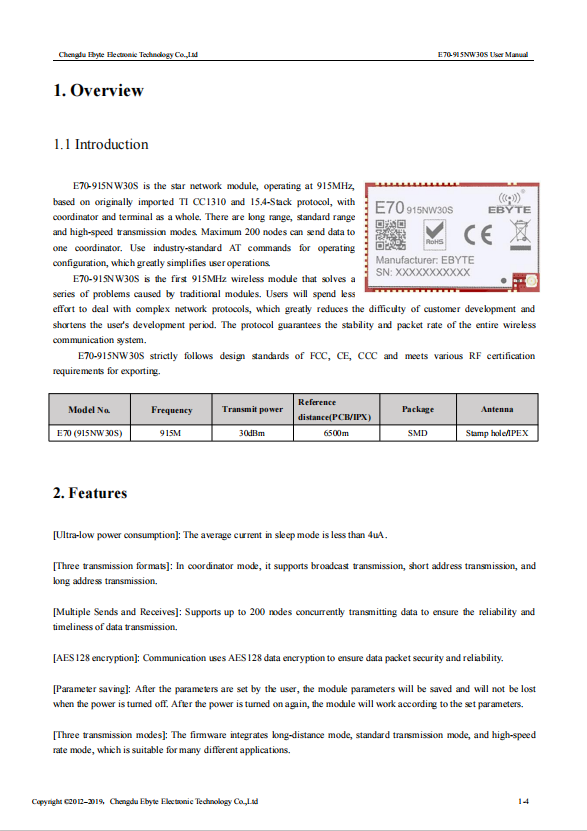

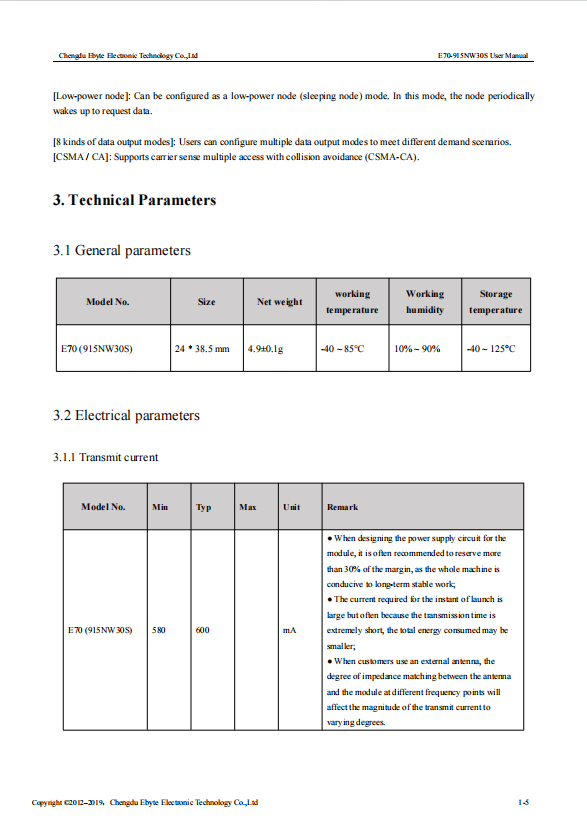

Product Data Book：

For more product information, please download the PDF
