Product Descriptions

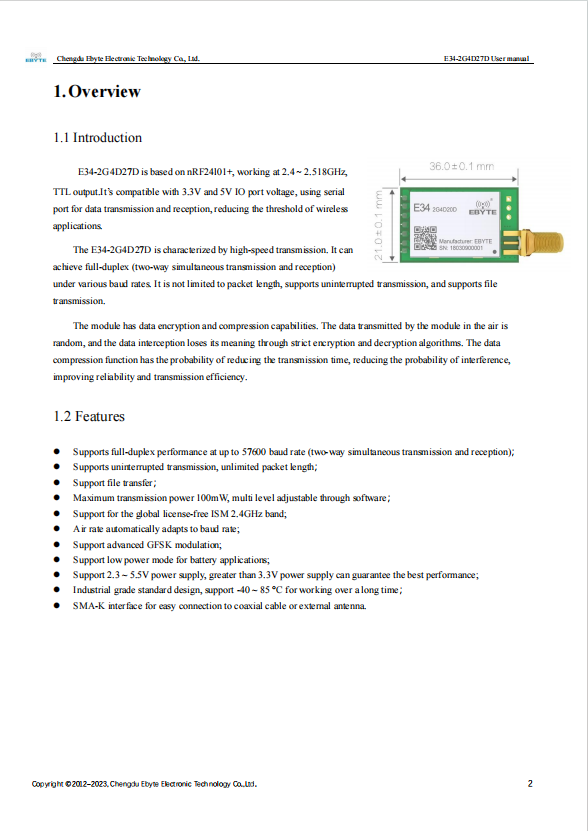

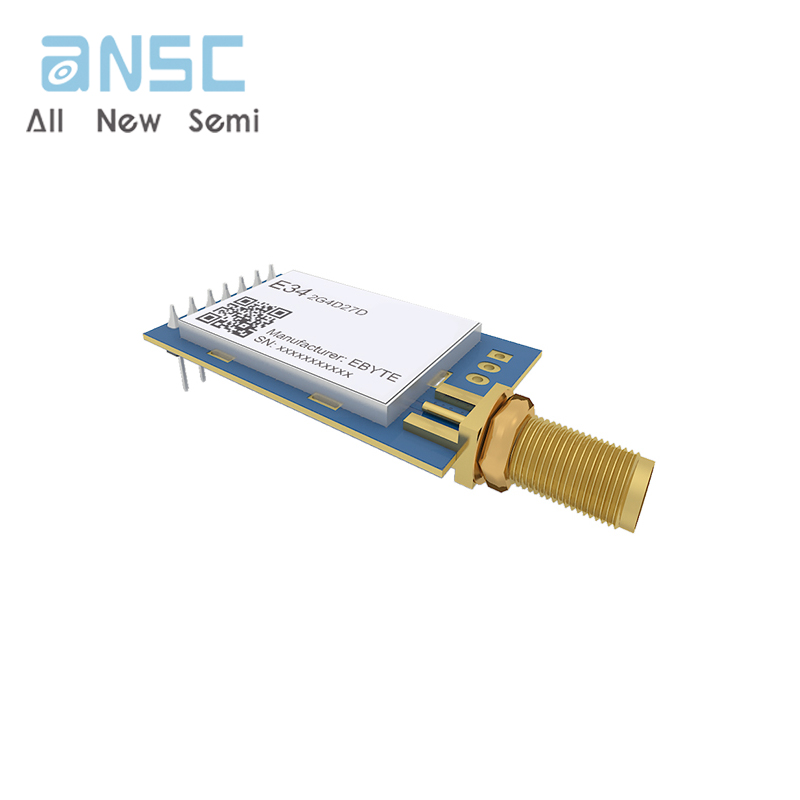

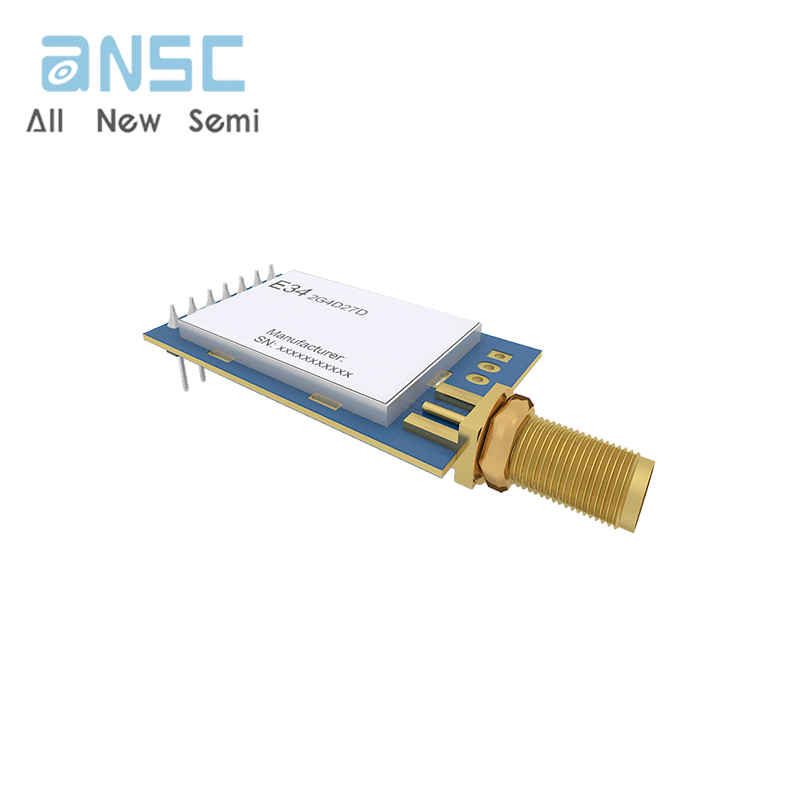

E34-2G4D27D is based on nRF24l01+, working at 2.4～2.518GHz, TTL output.It’s compatible with 3.3V and 5V IO port voltage, using serial port for data transmission and reception, reducing the threshold of wireless applications. The E34-2G4D27D is
characterized by high-speed transmission. It can achieve full-duplex (two-way simultaneous transmission and reception) under various baud rates. It is not limited to packet length, supports uninterrupted transmission, and supports file transmission.
The module has data encryption and compression capabilities. The data transmitted by the module in the air is random, and the data interception loses its meaning through strict encryption and decryption algorithms. The data compression function
has the probability of reducing the transmission time, reducing the probability of interference, improving reliability and transmission efficiency.
Product Features
? Supports full-duplex performance at up to 57600 baud rate (two-way simultaneous transmission and reception)；
? Supports uninterrupted transmission, unlimited packet length；
? Support file transfer；
? Maximum transmission power 100mW, multi level adjustable through software；
? Support for the global license-free ISM 2.4GHz band;
? Air rate automatically adapts to baud rate;
? Support advanced GFSK modulation;
? Support low power mode for battery applications;
? Support 2.3 ~ 5.5V power supply, greater than 3.3V power supply can guarantee the best performance;
? Industrial grade standard design, support -40 ~ 85 °C for working over a long time；
? SMA-K interface for easy connection to coaxial cable or external antenna.
Product Applications
? Wearable device；
? Smart homes, industrial sensors, etc.；
? Security system, positioning system；
? Wireless remote control, drone；
? Wireless game remote control；
? Health care products；
? Wireless voice, wireless headset；
? Automotive industry applications.
Specifications

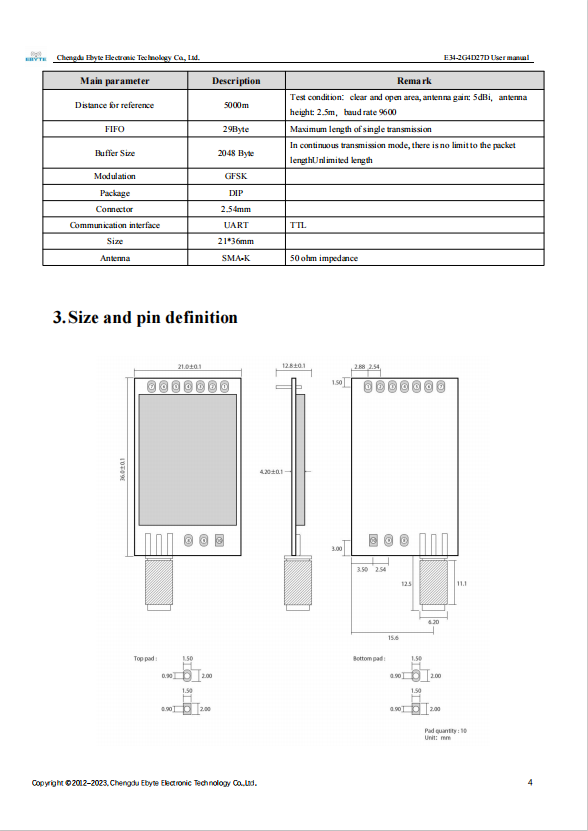

| Attribute | Attribute value | Notes |
| ANSM-Part# | ANSM-E34-2G4D27D | |
| Size | 21 * 36 mm | - |
| Antenna type | SMA-K | 50 ohm impedance |
| Communication interface | UART | TTL |
| Package | DIP | - |
| Buffer Size | 2048 Byte | In continuous transmission mode, there is no limit to the packet length Unlimited length |
| FIFO | 29Byte | Maximum length of single transmission |
| Working frequency | 2400~2518 MHz | Default:2400MHz |
| Transmitting power | 27 dBm | - |
| Receiving sensitivity | -102 dBm | Air data rate: 0.3kbps |
| Air data rate | - | Automatic software optimization, automatic adaptation to baud rate |
| Test distance | 5000m | Test condition：clear and open area, antenna gain: 5dBi，antenna height: 2.5m，baud rate 9600 |
| Power supply voltage (V) | 3.3~5.5 | |
| Emission current (mA) | 550 | Instantaneous power consumption |
| Received current (mA) | 27 |
