Product Descriptions

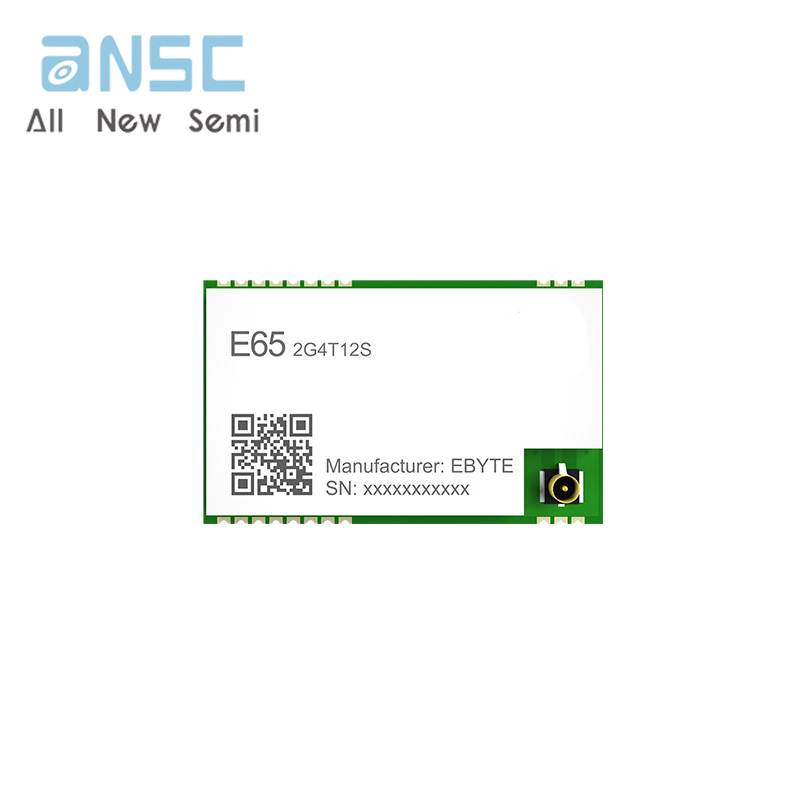

E65-2G4T12S is a 2.4GHz radio frequency wireless transceiver serial moduleproduct designed and produced by Ebyte. The product has the

characteristics ofpoint-to-point, high-speed continuous transmission, full-duplex communicationetc., with frequency hopping algorithm to

improve anti-interference ability, andis suitable for complex working environments.

It adopts small size SMD package, and the transmitting power can reach12dbm. Full duplex continuous transmission, support up to 3 Mbps

serial portbaud rate, with the product hardware flow control, can realize the transmissionof big data or files.

The design of dual antenna is optional (lPEX / stamp hole), which is convenient for user's secondary development and integration.

? It supports bidirectional big data and file transmission,

? It supports ATcommand configuration,

? It supports hardware flow control.

? It supports up to 3mbps serial port baud rate.

? Air rate 1 ~ 3mbps adaptive,

? It supports communication distance up to 800 m.

? It supports point to point wireless communication,

? It supports ISM 2.4GHz frequency;

? It supports 3.6V power supply, more than 3 3V power supply can ensure the best performance.

? Industry standard design, support long-term use at -40~85 °C.

? Stamp hole / IPEX antenna interface.

? Smart home and industrial sensors, etc..

? Security system, positioning system;

? Wireless remote control, UAV

? Wireless game remote control

? Medical health products,

? Wireless voice, wireless headset,

? Application in the automotive industry

Attribute	Attribute value	Notes
ANSM-Part#	ANSM-E65-2G4T12S
Distance (m)	800	-
TX packet length	Continuous transmission	Continuous transmission does not limit packetlength, pay attention to flow control and specificbaud rate
Communication interface	UART serial port	See pin description for details
Packaging	SMD	See dimension description for details
Size (mm)	28.7 * 17.5	Length * width
RF interface	IPEX/Stamp hole	The equivalent impedance is about 50 Ω
Working frequency band (MHz)	2400-2480	Support ISM frequency band
Transmission power (dBm)	12
Received current (mA)	48
Air speed (bps)	1.2k~3M	Default 115.2kbps
Working voltage (v)	2.3-3.6	≥3.3V ensures output power
Emission current (mA)	49
Receiving sensitivity (dBm)	-95
Working temperature (C)	-40~+85	Industrial grade design
Communication level (V)	3.3	There is a risk of burning out when using a 5V level

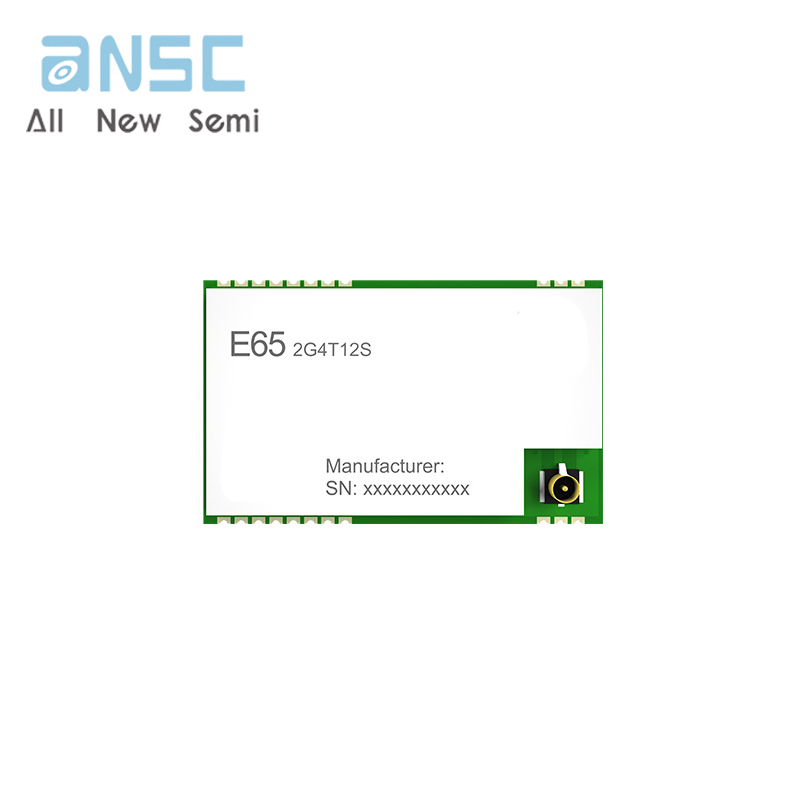

E65-2G4T12S

For more product information, please download the PDF
