Product Descriptions

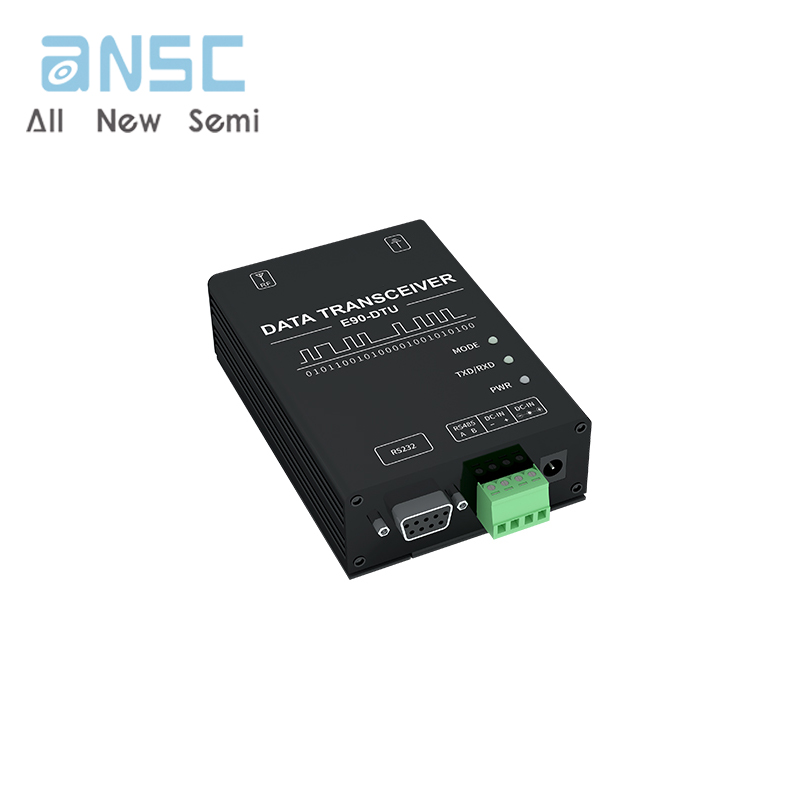

E90-DTU (400SL22P) is a true high-quality industrial-grade wireless digital radio. The power supply supports3-level protection, RS485 and RS232 support 4-level protection, and the RF port supports 4-level ESD protection. It canbe used in industrial applications where the electromagnetic environment is more complicated. The radio adopts LORA spread spectrum technology, and its powerful anti-interference ability makes wireless communication more stable andreliable in the industrial field.

It has multiple transmission modes, working in the (410.125 ~ 493.125MHz) frequency band (default 433.125MHz)the radio provides transparent RS232/R$485 interface, supports 8 ~ 28V voltage input. LoRa direct-sequence spreadspectrum technology will bring longer communication distances, and has the advantages of concentrated power densityand strong anti-interference ability. The module has a software FEC forward error correction algorithm. which has highcoding efliciency and strong error correction capability. In the case of sudden interference, it can actively correct theinterfered data packets, greatly improving reliability and transmission distance. In the absence of FEC, such packets canonly be discarded. The radio has data encryption function, and the data transmitted by the radio in the air has randomnessThe data interception is meaningless through strict encryption and decryption algorithms, the packet length setting issupported, and different real-time and data packets are supported.

As a communication medium, wireless digital radio has the same scope as optical fiber, microwave and bright line.it provides real-time and reliable data transmission of monitoring signals in private networks under certain speciaconditions, with low cost and installation and maintenance.Convenient, strong diffraction ability, flexible networkstructure and long coverage. It is suitable for multi-point and location dispersion, complex geographical environment, etcIt can be connected with PLC, RTU, rain gauge, liquid level meter and other data terminals.

Product Features

? High-level port protection,

? Environmental field strength dynamic indication, data packet RSSI dynamic indication,

? Software and hardware dual watchdogs,

? Wireless air configuration,

? Waterproof, dust and moisture resistance,

? The product is easy to use and configured by the host computer,

? 6-year warranty,

? Using the latest LoRa technology, it has a longer distance and more powerful performance than traditional LoRadigital radio stations,

? Using military-grade LoRa modulation technology, with data encryption, the packet length is available for configuration;

? Large single package, single package is up to 240 bytes,

? Simple and efficient power supply design, support power adapter or crimping mode, support 8~28V power supply.

? Transmit power is up to 22dBm, multi-level adiustable. with all technical indicators meeting European industrial standards.

? Support LBT function, the transceiver automatically waits to send data according to the current ambient noise intensity. The communication success rate of the module in harsh environments is greatly improved

? Remotely configure or read wireless module parameters by sending command packets wirelessly.

? Support communication key function to effectively prevent data from being intercepted.

? Multi-level relay networking can be realized,which effectively extends communication distance forultra-long-distance communication.

? With temperature compensation circuit, the frequency stability is better than +1 5PPM

? Operating temperature range: -40°C ~ +85 ° C, to adapt to a variety ofharsh working environment.

? All-aluminum alloy casing, compact size, easy installation and good heat dissipation; perfect shielding design, withgood electromagnetic compatibility and strong anti-interference ability

? Multiple protection functions such as power reverse connection protection, over-current protection. and antennasurge protection greatly increase the reliability of the device.

? Powerful software functions, all parameters can be programmed: such as power, frequency, air data rate, address ID etc.

? Ultra-low power consumption, standby current is only 12V / 39mA (lower power consumption in power savingmode and sleep mode);

? with built-in hardware watchdog and precise time layout, once an exception occurs, the transceiver will automatically restart, and continue to work according to the previous parameters.

Specifications

Actual product photos

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
