Product Descriptions

E22-400TXXX series is a new generation of LoRa wireless module. It is a wireless serial port module (UART) based on SX1268 RF chip, with a variety of transmission methods, working in (410.125 ~ 493.125MHz) frequency band (default 433.125MHz),

LoRa spread spectrum technology, with TTL level output, support 2.3V - 5.5V supply voltage.

E22-400TXXX adopts a new generation of LoRa spread spectrum technology. Compared with the traditional SX1278 solution, SX1268 has farther range, faster transmission speed, but with lower power consumption and smaller size;

It supports wake-up over the air, wireless configuration, LBT, automatic relay, communication key and other functions. It also supports packet length setting, and customized development service is available

Product Applications

? Home security alarm and remote keyless entry;

? Smart home and industrial sensors;

? Wireless alarm security system;

? Building automation solutions;

? Wireless industrial-grade remote control;

? Health care products;

? Advanced Meter Reading Architecture (AMI);

? Automotive industry applications.

Product Features

? Based on chip SX1268, the new LoRa spread spectrum modulation technology brings a longer communication distance and stronger anti-interference ability;

? Support automatic relay networking, multi-level relay is suitable for ultra-long-distance communication, and multiple networks can run simultaneously in the same area;

? User can set the communication key by himself and the key cannot be read by others. It greatly improving the confidentiality of user data;

? Support LBT function, monitoring the channel environment noise before sending data, which greatly improves the communication success rate of the module in harsh environments;

? Support RSSI signal strength indicator function for evaluating signal quality, improving communication network, and ranging;

? Support wireless parameter configuration, send command packets wirelessly, remotely configure or read wireless module parameters;

? Support wake-up over the air, that is ultra-low power consumption, suitable for battery-powered applications;

? Support point to point transmission, broadcast transmission, channel listening;

? Support deep sleep, the power consumption of the whole module is about 2uA in this mode;

? Support global license-free ISM 433MHz frequency band, support 470MHz meter reading frequency band;

? The module has built-in PA+LNA, and the communication distance can reach 16km under ideal conditions;

? The parameters are saved after power-off, and the module will work according to the set parameters after power-on;

? Efficient watchdog design, once an exception occurs, the module will automatically restart and continue to work according to the previous parameter settings;

? Support 2.4k～62.5kbps air data rate transmission;

? Support 2.3～5.5V power supply, power supply greater than 3.3V guarantees the best performance;

? Industrial standard design, supporting long-term use at -40～+85℃;

? The maximum power of the module can reach 2W (33dBm), which makes the transmission farther and more stable.

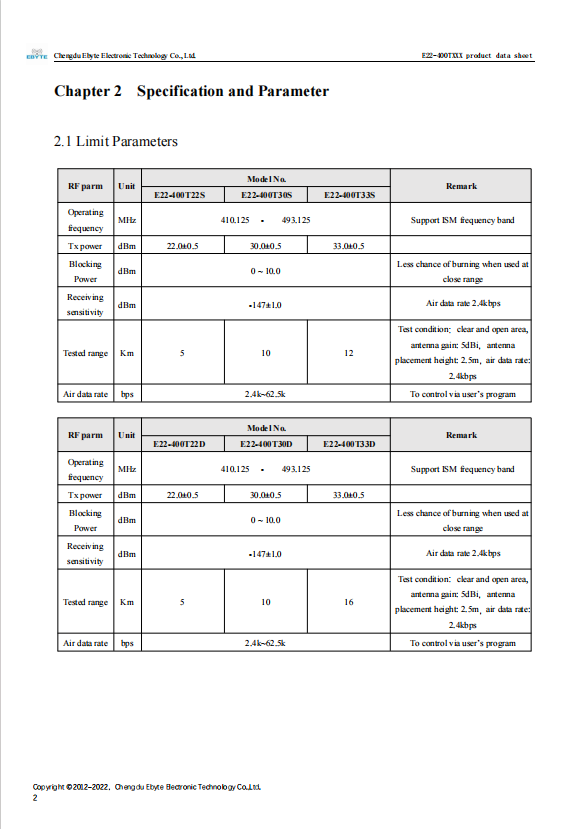

Specifications

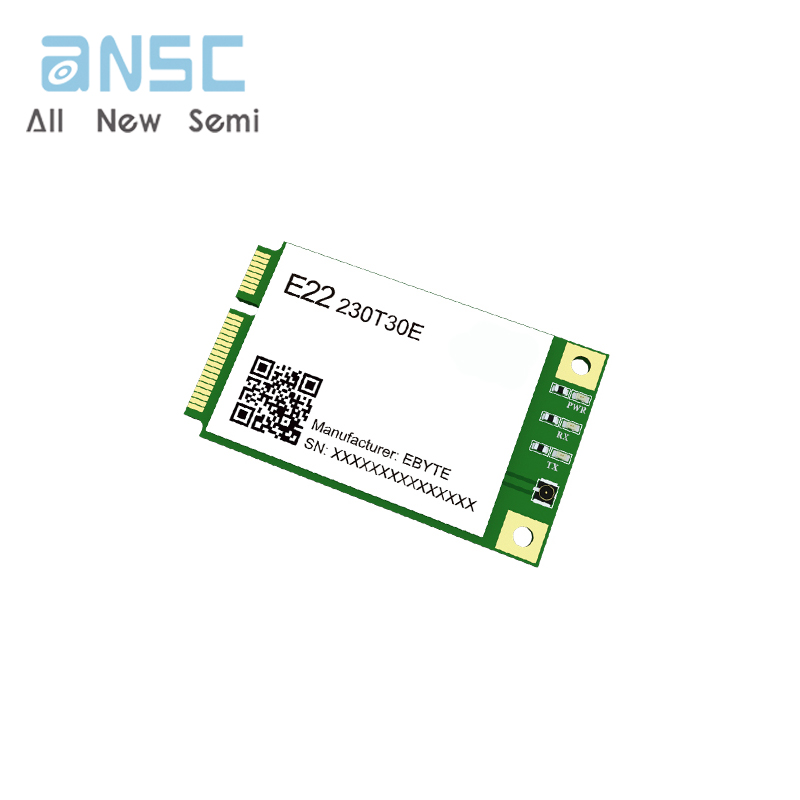

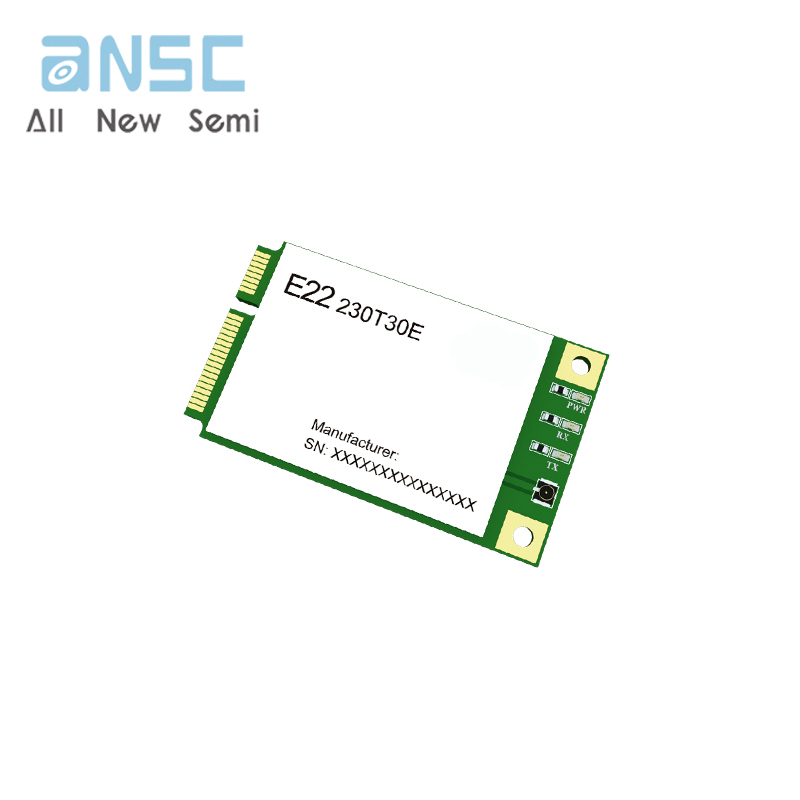

Actual product photos

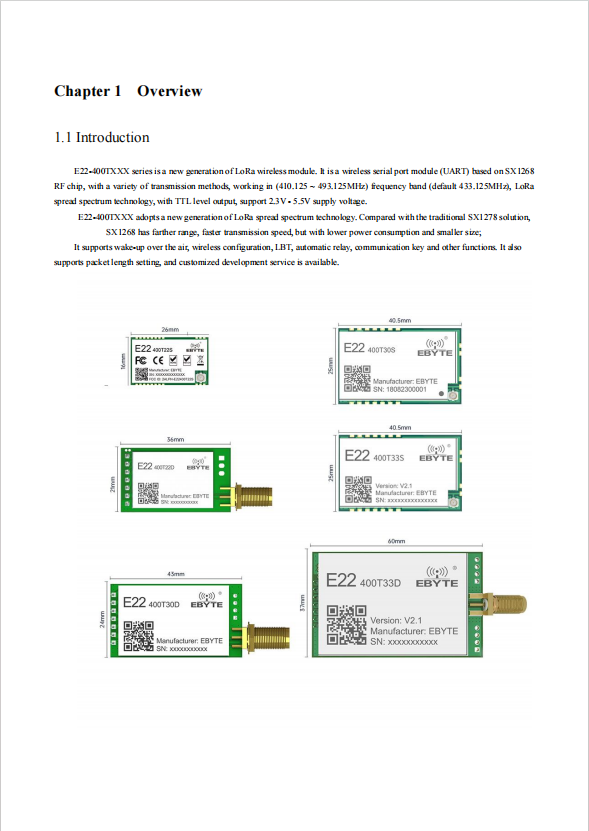

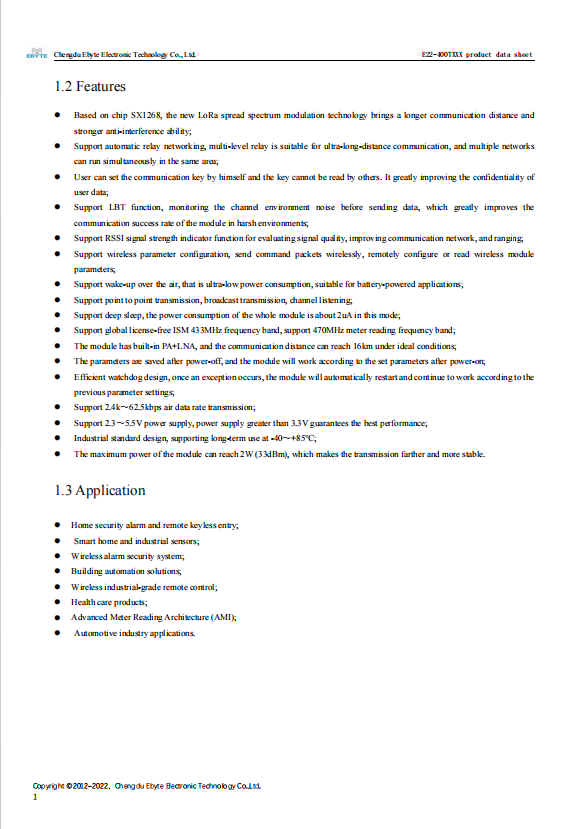

Product Data Book：

For more product information, please download the PDF
