Product Descriptions

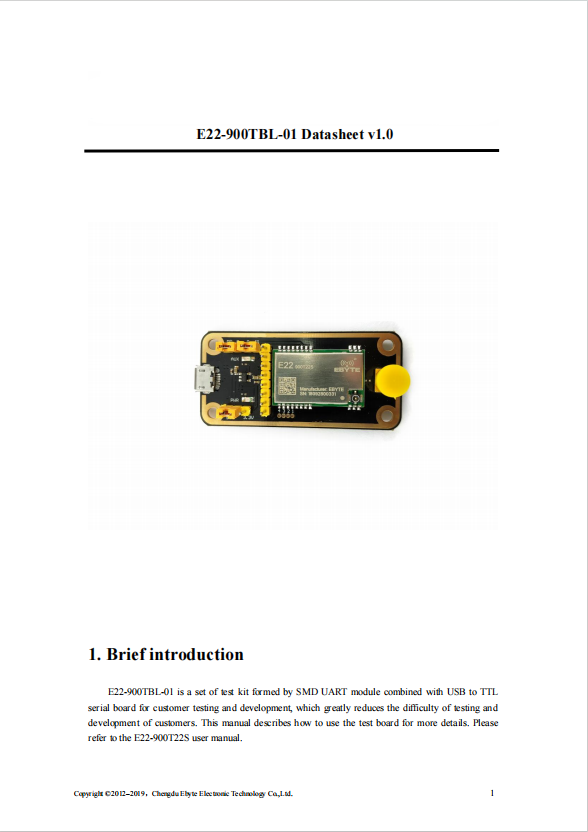

E22-900TBL-01 is a set of test kit formed by SMD UART module combined with USB to TTlserial board for customer testing and development,
which greatly reduces the dificulty of testing anddevelopment of customers. This manual describes how to use the test board for more details.
Pleaserefer to the E22-900T22S user manual.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-E22-900TBL-01 |
| Interface | USB |
| Size | 58*28mm |
| Manufacturer | EBYTE |

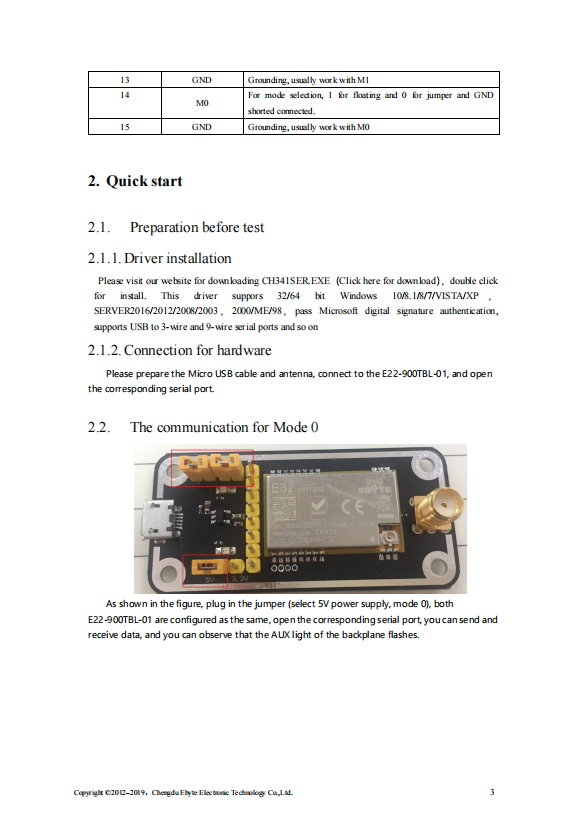

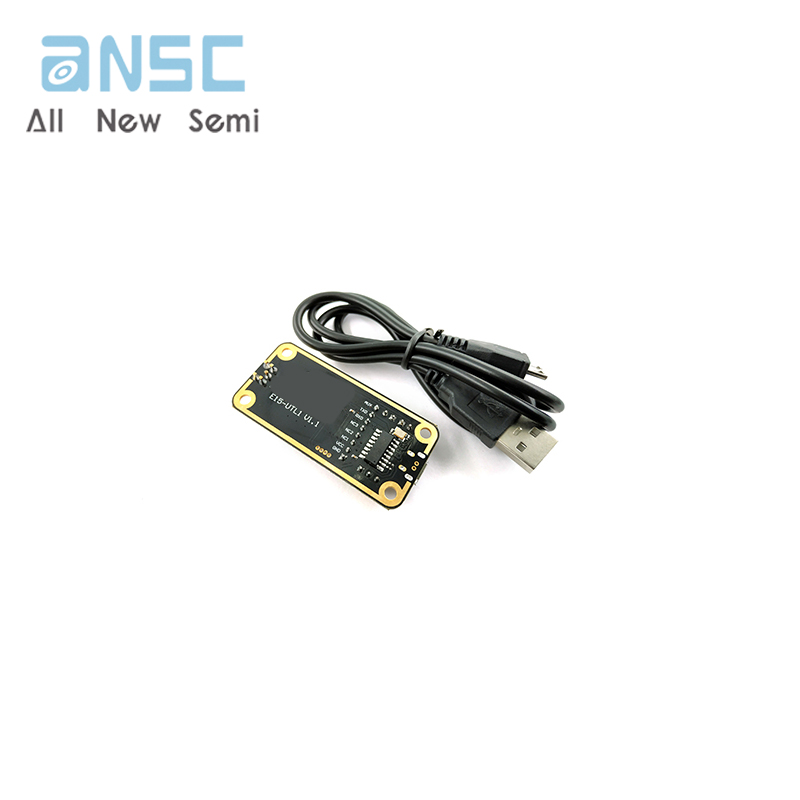

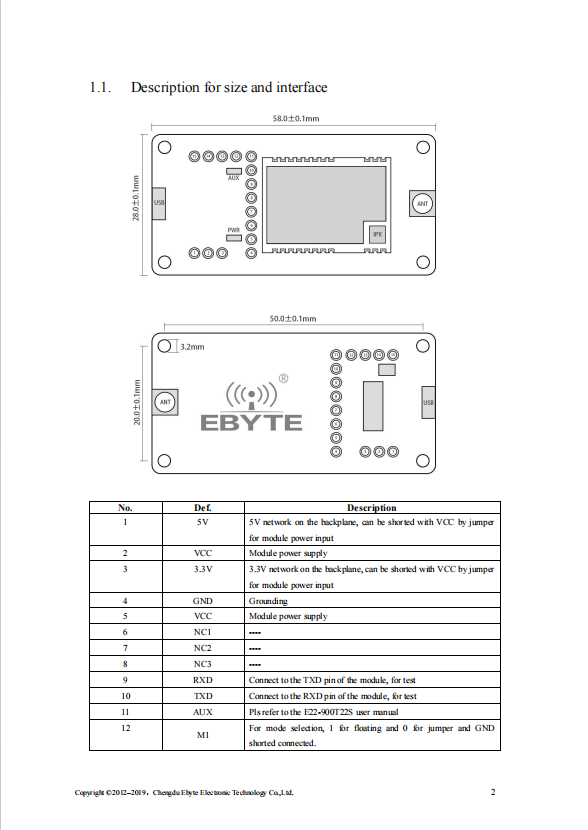

Actual product photos
Product Data Book：
For more product information, please download the PDF
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
