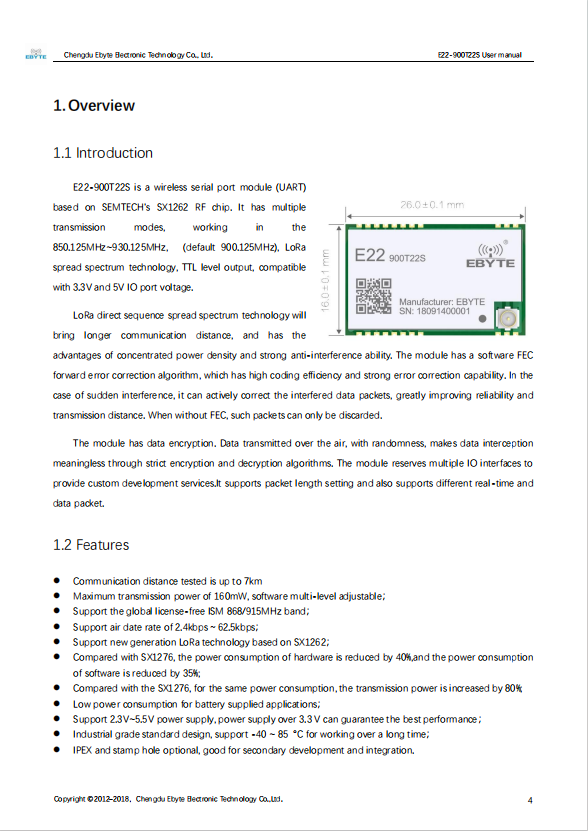

Product Descriptions

E22-900T22S is a wireless serial port module (UART) based on SEMTECH's SX1262 RF chip. It has multiple transmission modes, working in the 850.125MHz~930.125MHz, (default 900.125MHz), LoRa spread spectrum technology, TTL level output,

compatiblewith 3.3V and 5V IO port voltage.

LoRa direct sequence spread spectrum technology will bring longer communication distance, and has the advantages of concentrated power density and strong anti-interference ability. The module has a

software FEC forward error correction algorithm, which has high coding efficiency and strong error correction capability. In the case of sudden interference, it can actively correct the interfered data packets, greatly improving reliability and transmission

distance. When without FEC, such packets can only be discarded.

The module has data encryption. Data transmitted over the air, with randomness, makes data interception meaningless through strict encryption and decryption algorithms. The module reserves multiple IO interfaces to provide custom development services.It supports packet length setting and also supports different real-time and data packet.

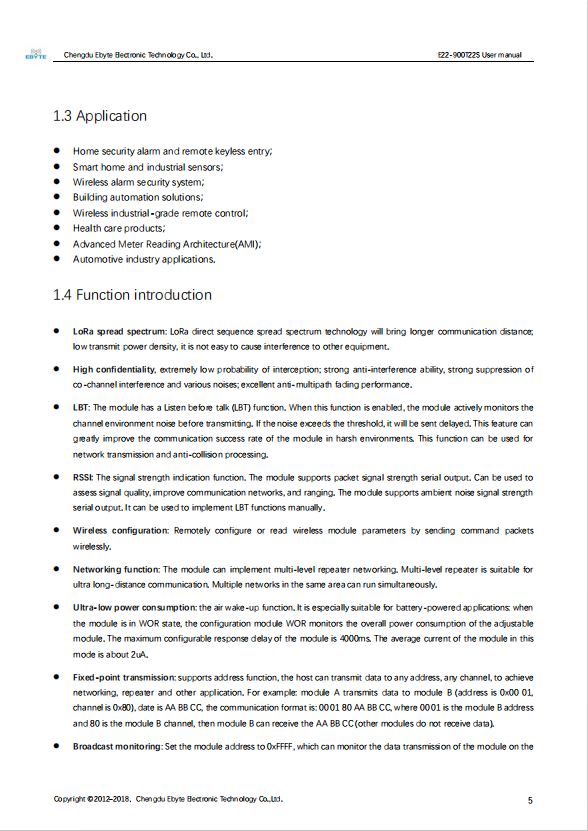

Product Applications

? Home security alarm and remote keyless entry；

? Smart home and industrial sensors；

? Wireless alarm security system；

? Building automation solutions；

? Wireless industrial-grade remote control；

? Health care products；

? Advanced Meter Reading Architecture(AMI)；

? Automotive industry applications.

Product Features

? Communication distance tested is up to 7km

? Maximum transmission power of 160mW, software multi-level adjustable；

? Support the global license-free ISM 868/915MHz band；

? Support air date rate of 2.4kbps～62.5kbps；

? Support new generation LoRa technology based on SX1262；

? Compared with SX1276, the power consumption of hardware is reduced by 40 percent,and the power consumption of software is reduced by 35 percent;

? Compared with the SX1276, for the same power consumption, the transmission power is increased by 80 percent;

? Low power consumption for battery supplied applications；

? Support 2.3V~5.5V power supply, power supply over 3.3 V can guarantee the best performance；

? Industrial grade standard design, support -40 ~ 85 °C for working over a long time；

? IPEX and stamp hole optional, good for secondary development and integration.

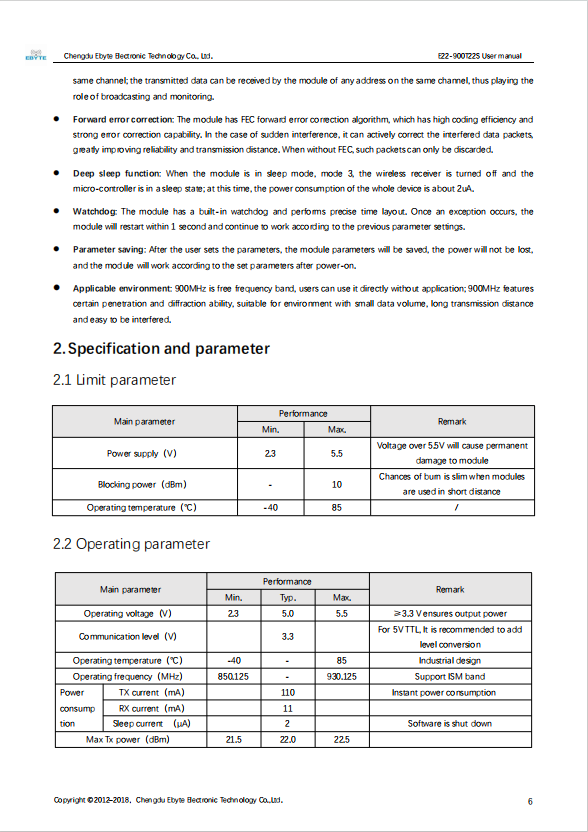

Specifications

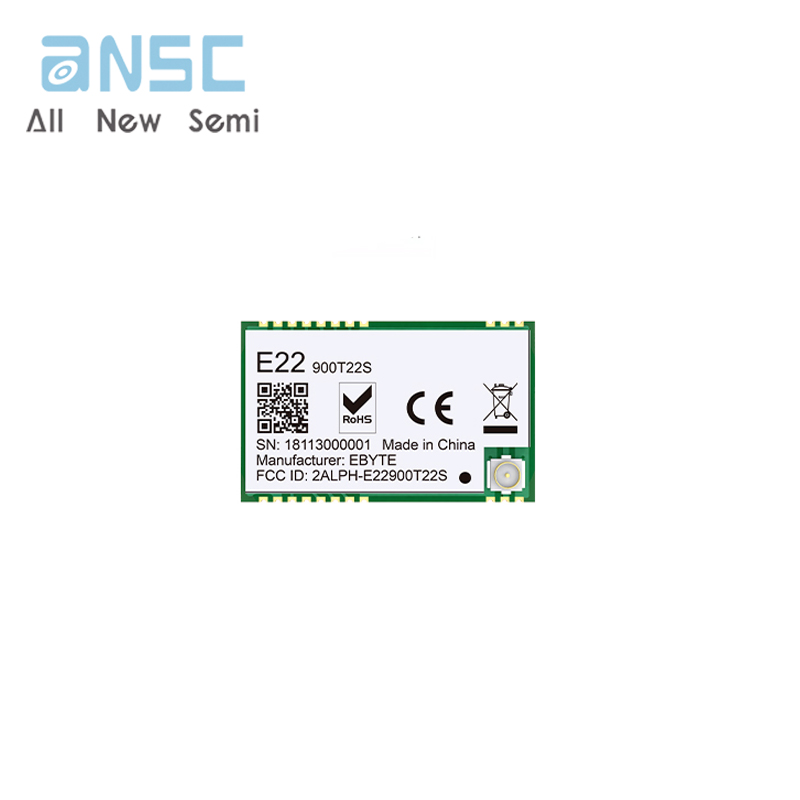

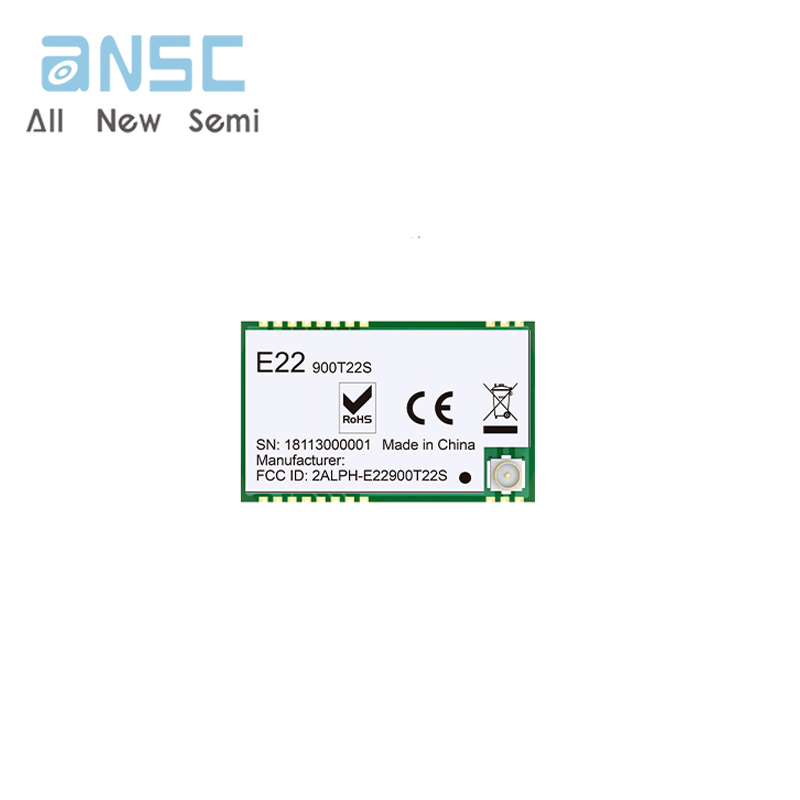

Actual product photos

Product Data Book：

For more product information, please download the PDF
