Product Descriptions

E22-230TXXS is a wireless serial port module (UART) based on SEMTECH's SX1262 RF chip. It has multiple transmission modes, working in the

220.125MHz~236.125MHz, (default 230.125MHz), LoRa spread spectrum technology, TTL level output, compatible with 3.3V and 5V IO port

voltage.

Compared with SX1276 module, the SX1262 has a longer transmission distance, faster speed, lower power consumption and smaller volume; It

supports air wake-up, wireless configuration, carrier monitoring, automatic relay, communication key and other functions, as well as packet

length setting, and can provide customized development services.

Product Applications

? Home security alarm and remote keyless entry；

? Smart home and industrial sensors；

? Wireless alarm security system；

? Building automation solutions；

? Wireless industrial-grade remote control；

? Health care products；

? Advanced Meter Reading Architecture(AMI)；

? Automotive industry applications.

Product Features

? The new LoRa technology is developed based on SX1262, which brings a longer communication distance and stronger anti-interference capability;

? Automatic relay networking, multi-level relay is applicable to ultra long distance communication, and multiple networks run in the same area at the same time;

? Users can set their own communication keys, which can not be read, greatly improving the confidentiality of user data;

? LBT function to monitor the channel environmental noise before transmission, which can greatly improve the communication success rate of the module in harsh environments;

? RSSI signal strength indication available, which is used to evaluate signal quality, improve communication network and range measurement;

? Wireless parameter configuration to send command data packets via wireless, and remotely configure or read wireless module parameters;

? Supports air wake-up, that is, ultra-low power consumption function, suitable for battery powered applications;

? Supports fixed point transmission, broadcast transmission and channel monitoring;

? In deep sleep mode，power consumption for the module is about 2uA；

? 230MHz frequency band，penetration ability better than 433MHz；

? With PA+ LNA, communication distance tested is up to 12km;

? The parameters are auto-saved once power off, the module will work according to the previously set parameters;

? Air date rate: 0.3kbps～15.6kbps;

? 3.3V~5.5V power supply, power supply over 5V can guarantee the best performance;

? Industrial grade standard design, support -40 ~ 85 °C for working over a long time;

? IPEX and stamp hole optional, good for secondary development and integration;

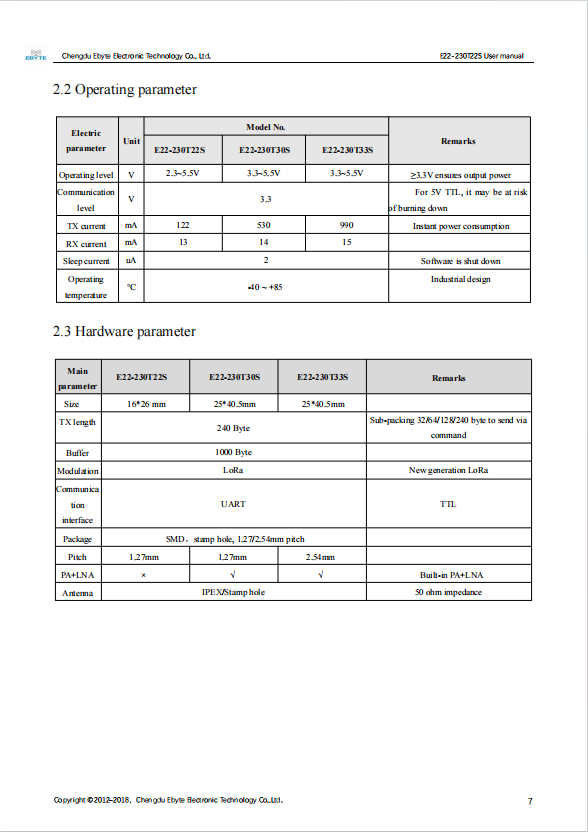

Specifications

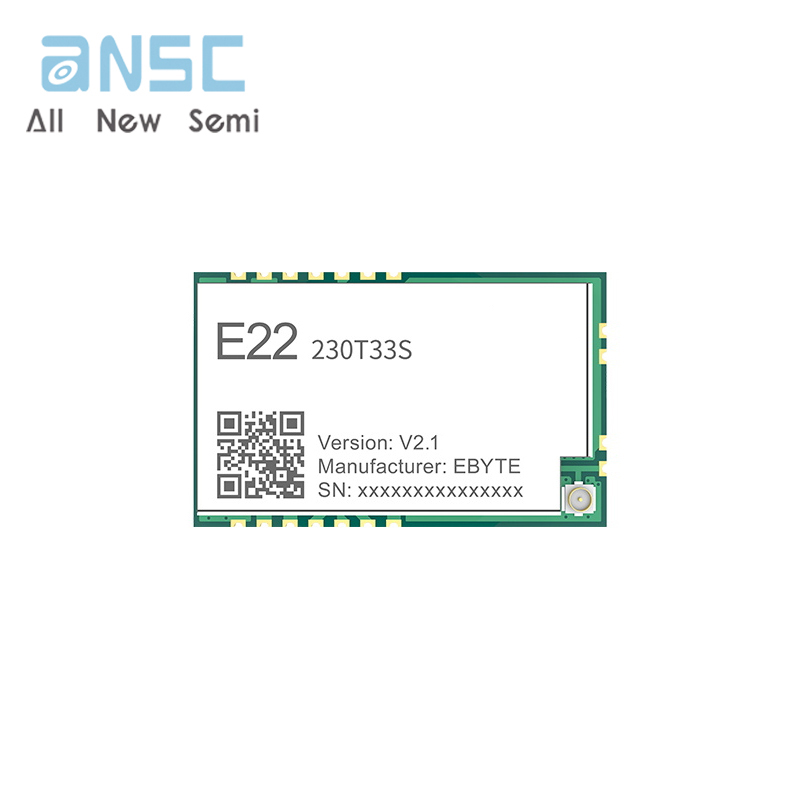

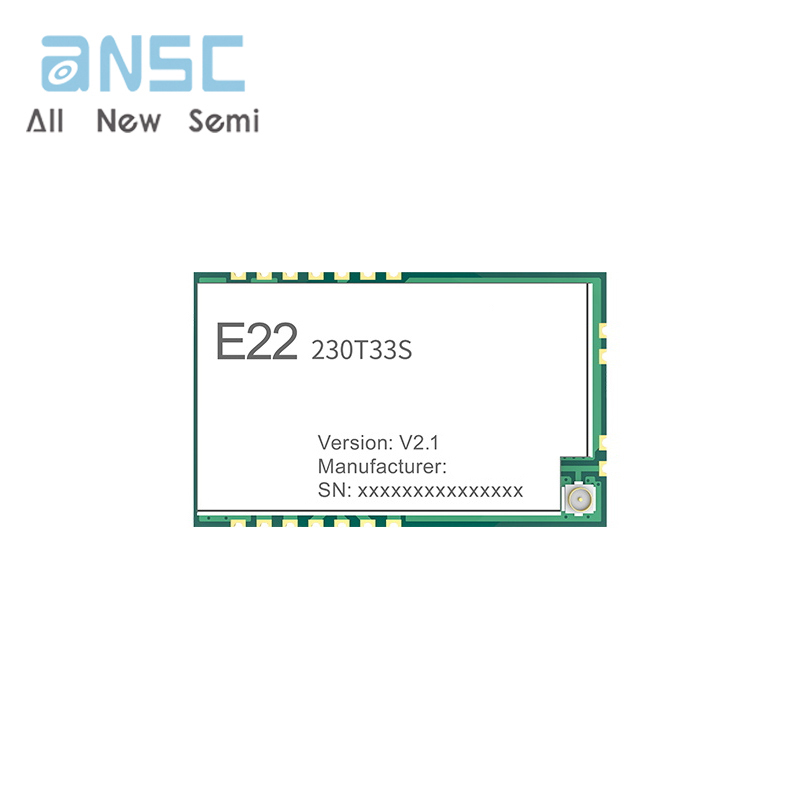

Actual product photos

Product Data Book：

For more product information, please download the PDF
