Product Descriptions

E32-900T20S is a wireless serial port module (UART) based on SEMTECH's SX1276 RF chip. It has multiple transmission modes, working in the 862MHz~931MHz, LoRa spread spectrum technology, TTL output.

SX1276 features LoRa?,which will bring longer communication distance, and has the advantages of concentrated power density, meanwhile it has a very strong confidentiality. the modules of 20dBm transmitting power adopt industrial grade crystal oscillators to ensure the stability and consistency. E32-900T20S are widely applied in utility meters, IoT renovation, smart home, etc. The modules feature data encryption and compression. The data transmitted in air features randomness.air Data Rate(Default 2.4kps).

E32-900T20S strictly follows design standards of FCC, CE, CCC and meets various RF certification requirements for exporting.

Product Applications

? Home security alarm and remote keyless entry；

? Smart home and industrial sensors；

? Wireless alarm security system；

? Building automation solutions；

? Wireless industrial-grade remote control；

? Health care products；

? Advanced Meter Reading Architecture(AMI)；

? Automotive industry applications.

Product Features

? Advanced LoRa modulation, with the advantage of long-distance anti-interference;

? Under ideal conditions, the communication distance can reach 5.5km, and the transmission distance is better than traditional GFSK;

? Fixed-point transmission, broadcast transmission, channel monitoring;

? FEC forward error correction to improve communication stability;

? Air wake-up (ultra-low power consumption), suitable for battery applications;

? Adopt industrial-grade active temperature-compensated crystal oscillator to ensure its stability and consistency;

? The maximum transmit power is 20dBm, and the software is multi-level adjustable；

? Support 868/915MHz EU general frequency band;

? The data transmission rate of 0.3k～19.2kbps;

? 2.3~5.5V power supply, power supply greater than 3.3V can guarantee the best performance;

? Industrial-grade standard design, supporting long-term use at -40～+85℃;

? IPEX/stamp hole interface for easy connection of coaxial cable or external antenna.

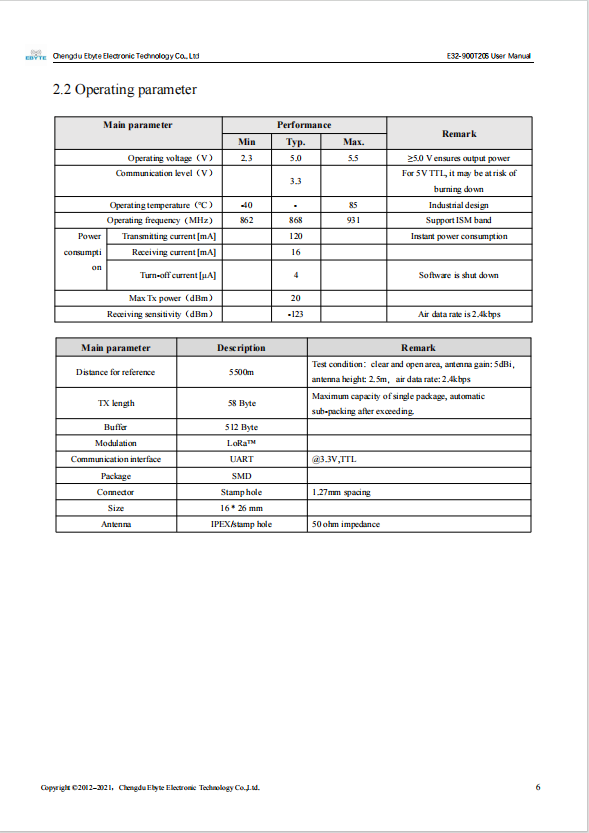

Specifications

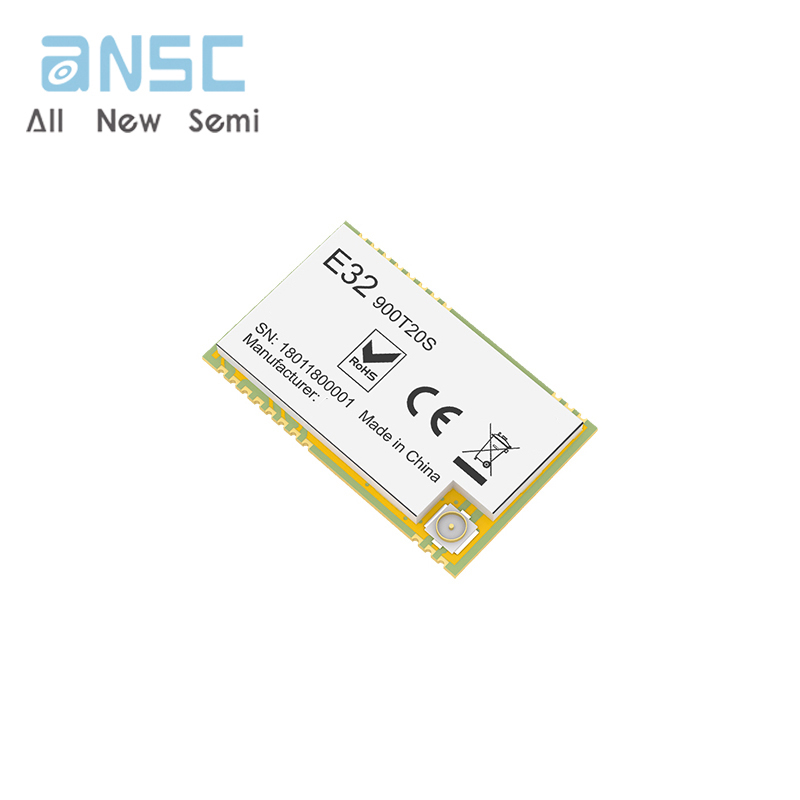

Actual product photos

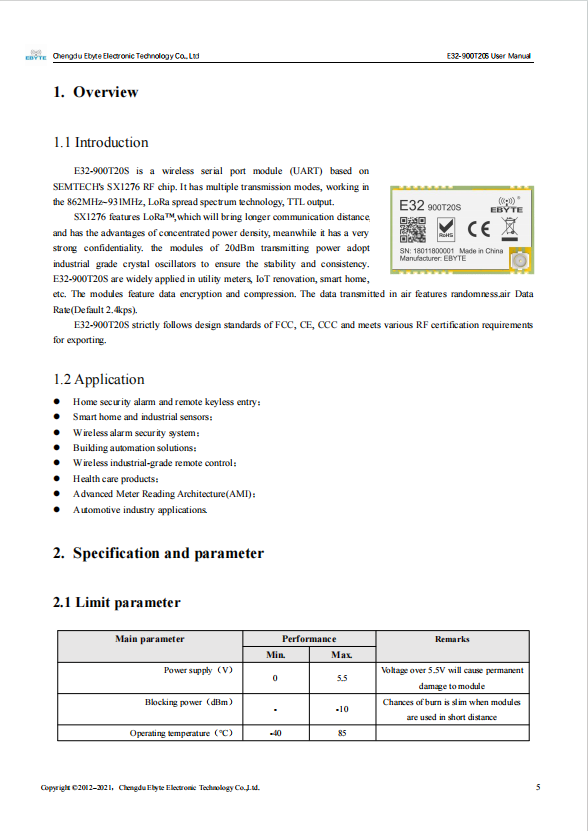

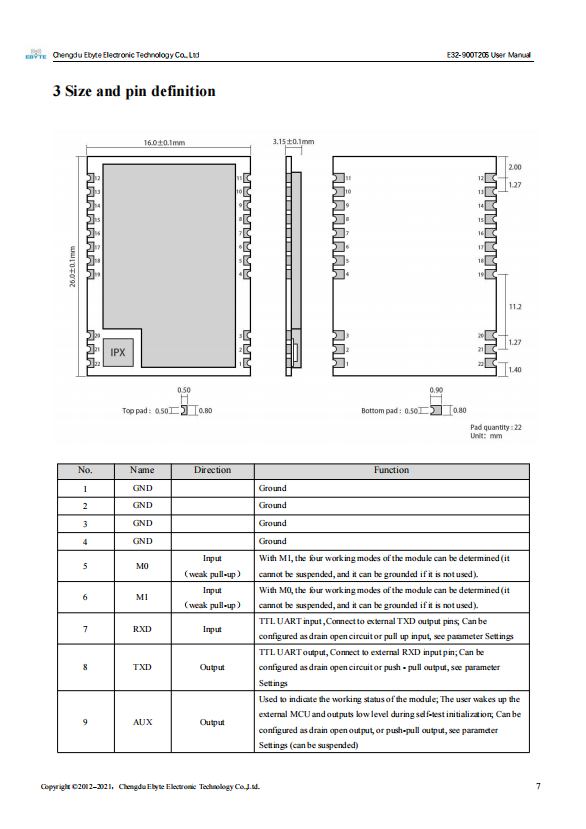

Product Data Book：

For more product information, please download the PDF

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
