ARMP950ma-AQ01 5v 900ma RX module qi wireless MINI receiver module wireless charging
Product Specification:
| Description | Description |
|---|---|
| ANSM-Product Name: | ANSM-ARMP950ma-AQ01 |
| Input: | >5W |
| Output: | DC5v 900-1A max:1A |
| Charging efficiency: | >70% |
| Working distance: | 2-6MM |

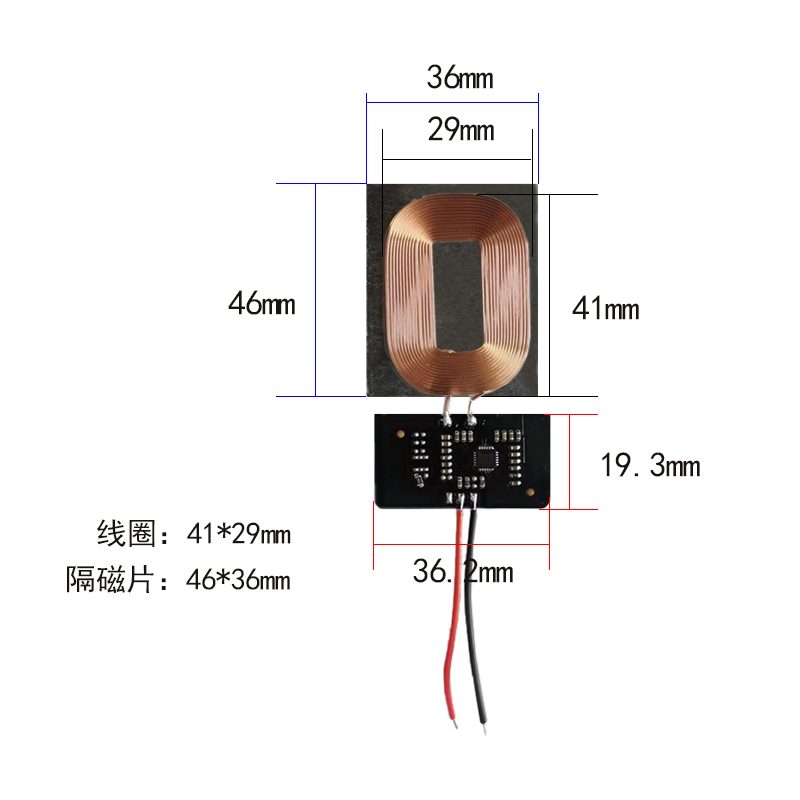

| Size: | Coil:41x29mm PCB:36.2*19.3mm |
| Customized: | Accept:current,Plug, Shel1,.etc |
| Standard: | QI standard CE/FCC/ROSH |
| development and design | "Wireless charging TX RX module,High-power wireless charging module, notebook / IPAD / drone / electric toothbrush / speaker / car / children's toys / positioning shoes / mug / hand bag / power outlet / flashlight / webcam" |
| Use: | Mainly used for: Android high-quality wireless charging solution, mobile phone wireless charging card and other electronic products |
Product Feature:
1.Wireless charging test stand Built-in 10W independent property wireless receiving chip 5W/7.5/10W gear position and FOD detection function gear position and full power function test
2.Comply with QI1.2 standard, support Qualcomm QC2.0, 3.0, MTK, Spreadtrum Fast Charge Protocol
