Product Details
UCC3895DW Overview
This ac to dc converter is included in the package 20-SOIC (0.295, 7.50mm Width) .The AC/DC power converter Tube is available for this product.A AC/DC converter of this type is mounted in the way of Surface Mount .Ideally, the ac dc converter should be operated at a temperature of -55°C~150°C TJ degrees Celsius.A SWITCHING CONTROLLER analog integrated circuit is used in this AC DC converter.This AC/DC converter is designed for use within the range of 10V~16.5V supply voltage (Vcc/Vdd).Total terminations are 20 .On this ac/dc converter, there are 20 pins.In this ac-dc converter, there are 20 pins.Suitable mounting is provided by Surface Mount .It is possible to search for similar acdc converters by using the UCC3895 family.It has been set to 100mA for the output current.In this AC to DC transformer, the output voltage is 250mV .The power AC DC is capable of high efficiency when operated at a frequency of 1MHz .Here is the standard for REACH SVHC : No SVHC .It is also possible to detect ALSO OPERATES IN CURRENT MODE when utilizing this ACDC converter.Ensure that this AC to DC converter is always set to 12V .We currently have 4 channels available.It is configured to output Voltage .
UCC3895DW Features
Packaged with 20-SOIC (0.295, 7.50mm Width)
With 20 pins
Output Current at 100mA
With 4 channels on it
Output Type : Voltage
UCC3895DW Applications
There are a lot of Texas Instruments
UCC3895DW AC DC Converters applications.
Set-top boxes
DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
Adapters
Networking
Product Description
ansc Part # | ANSC- UCC3895DW |
Part# | UCC3895DW |
Type： | Integrated Circuits (ICs) |
Manufactor | Texas Instruments |
DC | new |
Package / Case | 20-SOIC |
Supplier Device Package | Tube |
Description | Integrated Circuits (ICs)Power Management (PMIC)DC DC Switching ControllersTexas Instruments20-SOICTube |
Actual image of the product
Specifications
| TYPE | DESCRIPTION |
|---|---|
| Category | Integrated Circuits (ICs)Power Management (PMIC)DC DC Switching Controllers |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Last Time Buy |
| Output Type | PWM |
| Function | - |
| Output Configuration | Positive |
| Topology | Phase-Shifted Full-Bridge |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 16.5V |
| Frequency - Switching | 1MHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | - |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Frequency Control, Soft Start, Sync |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | UCC3895 |

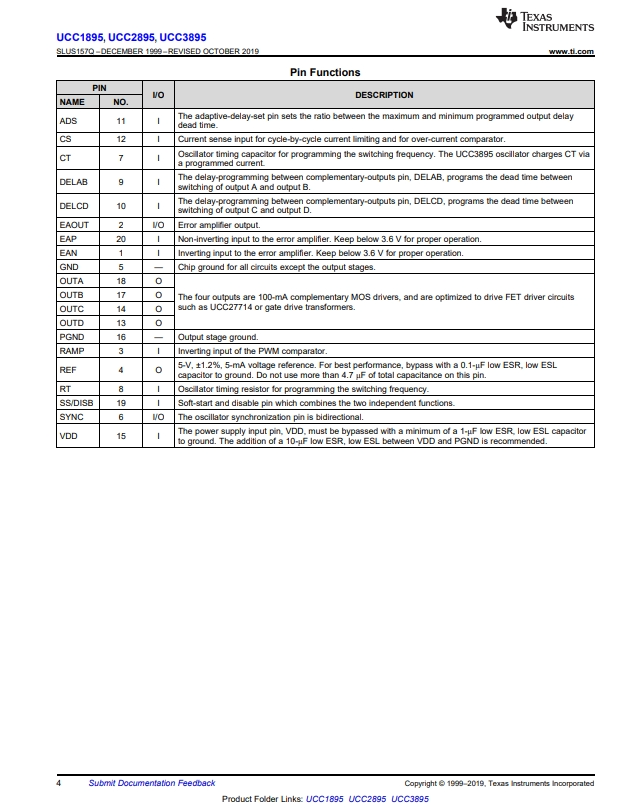

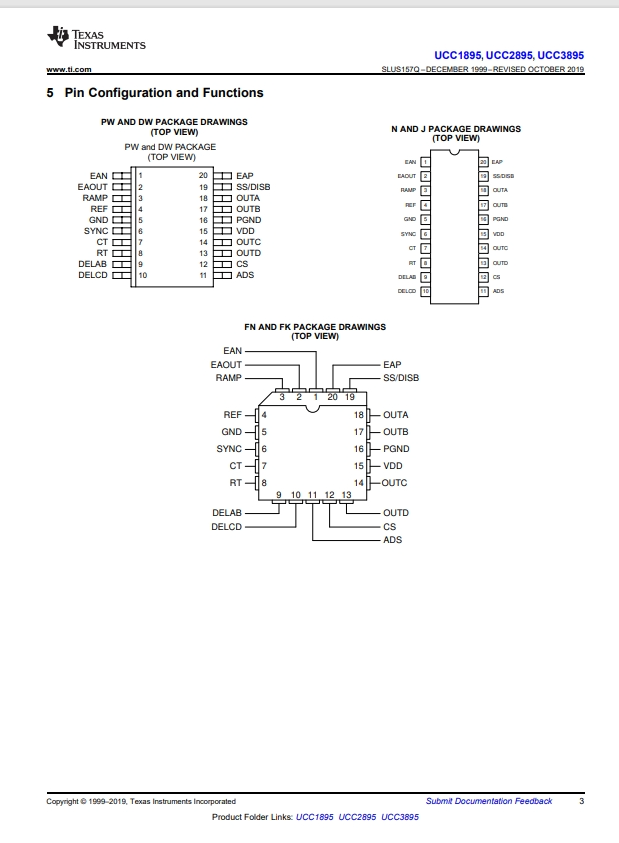

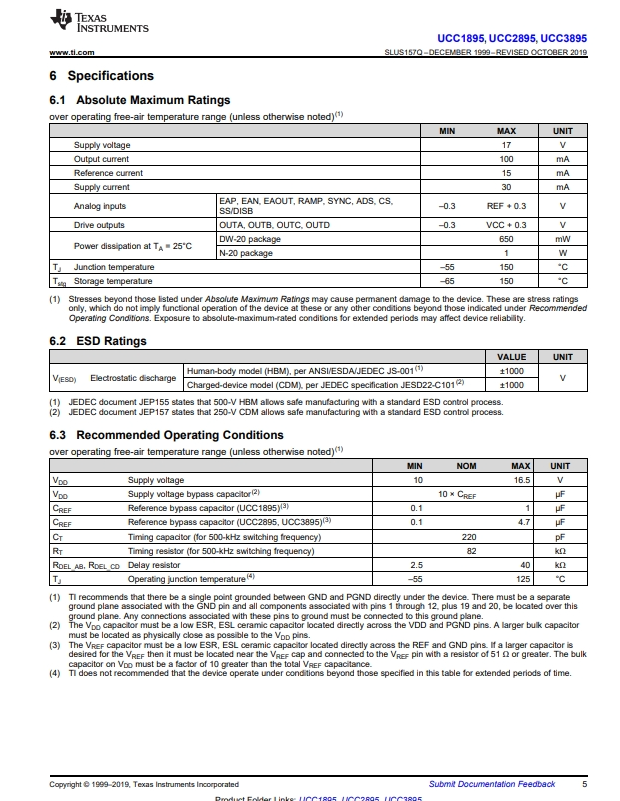

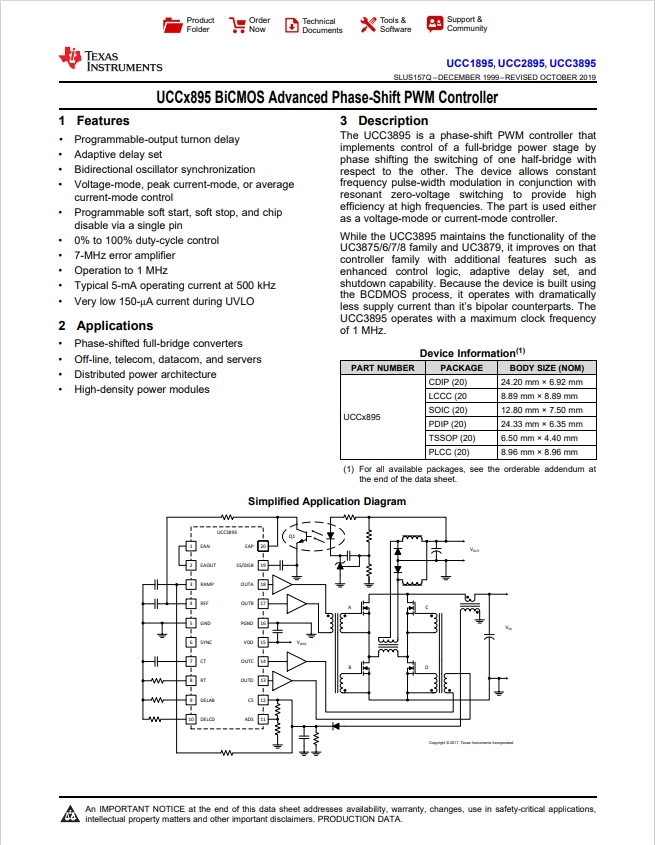

Product Data Book
For more datasheets, please download
