Product Details
|
82V2058DAG Overview TQFP package is used to save board space.Telecom switching is mounted in the way of Surface Mount.There are 144 terminations can be found in telecom switching configuration.The supply voltage it operates with is 3.3V.This telecom interface contains 144 pins.It adopts PCM TRANSCEIVER as its telecom IC type.The temperature is set at the minimum value of -40°C to ensure normal operation.The temperature is set at the maximum value of 85°C to ensure normal operation.Telecommunications device is configured wit h 1 functions when designing.144 telecom product pins are designed for its configuration.
Available in the TQFP package PCM TRANSCEIVER as telecom IC type 82V2058DAG Applications There are a lot of Integrated Device Technology (IDT) 82V2058DAG Telecom applications. High-Density T1/E1/J1 interfaces for Multiplexers Switches LAN Routers Digital Modems SONET/SDH terminal Add/Drop multiplexers (ADMs) T1/E1/J1 add/drop multiplexers (MUX) Channel Service Units (CSUs): T1/E1/J1 Fractional T1/E1/J1 BITS Timing |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 82V2058DAG |
| Manufacturer | IDT |
| Part Package Code | TQFP |
| Package Description | LFQFP, QFP144,.87SQ,20 |
| Pin Count | 144 |
| Manufacturer Package Code | DAG144 |
| Length | 20 mm |
| Moisture Sensitivity Level | 3 |
| Number of Functions | 1 |
| Number of Terminals | 144 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min |
-40 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LFQFP |
| Package Equivalence Code | QFP144,.87SQ,20 |
| Package Shape | SQUARE |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.6 mm |
| Supply Voltage-Nom | 3.3 V |
| Surface Mount | YES |
| Telecom IC Type | PCM TRANSCEIVER |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.5 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Width | 20 mm |

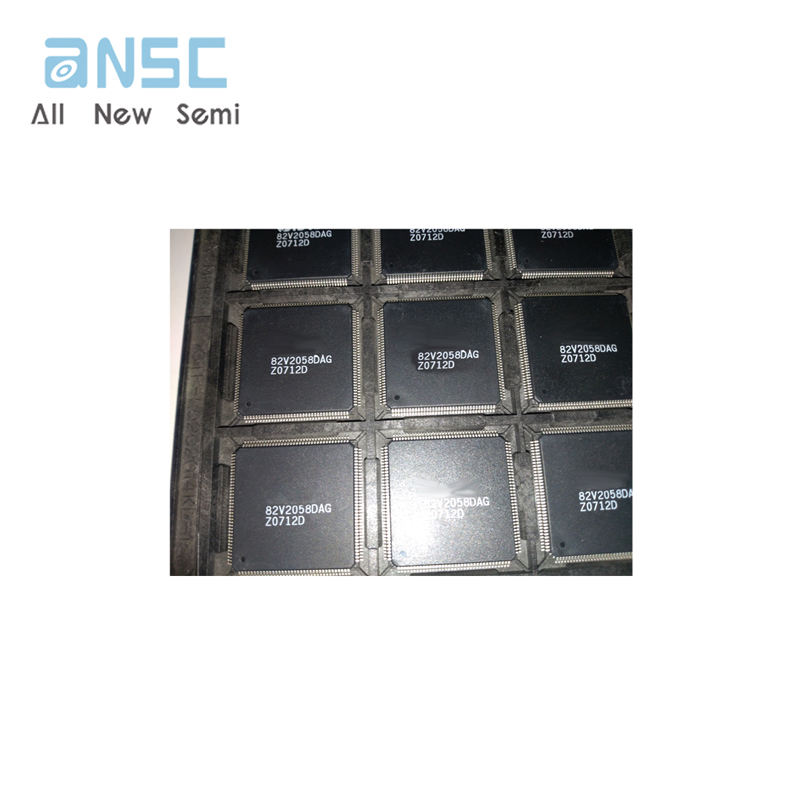

Product Photos

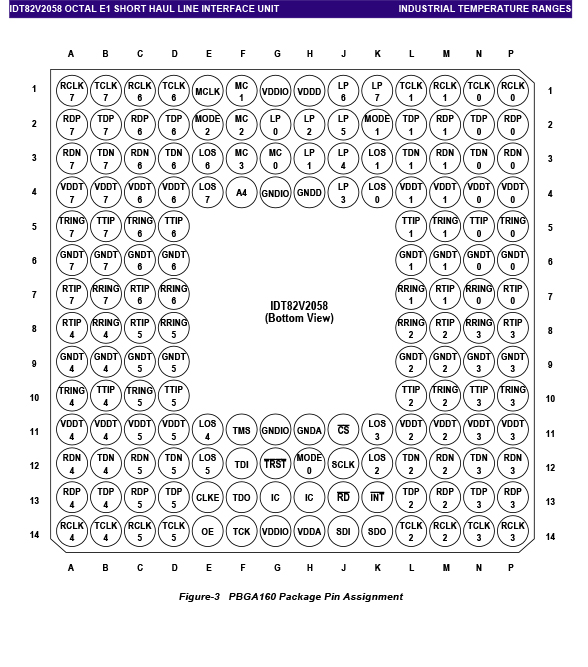

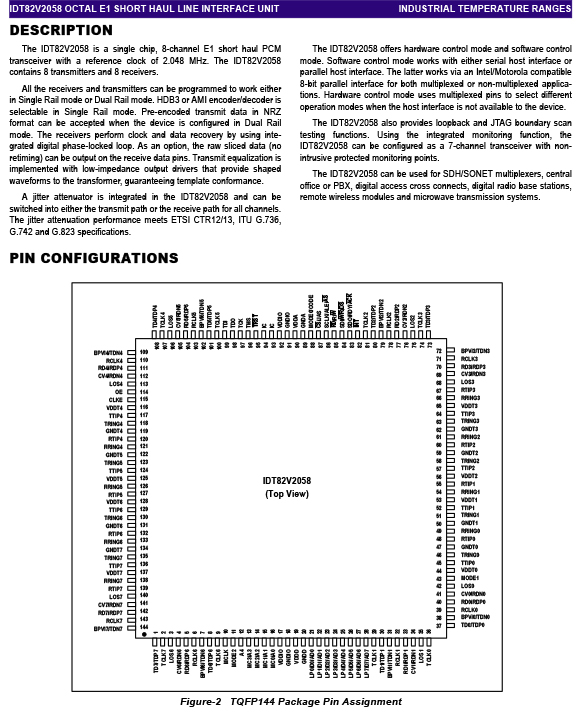

Product datasheet
For more information, please download
