Product Details
|
DESCRIPTION The 10-bit LTC?1852 and 12-bit LTC1853 are complete 8-channel data acquisition systems. They include a flexible 8-channel multiplexer, a 400ksps successive approximation analog-to-digital converter, an internal reference and a parallel output interface. The multiplexer can be configured for single-ended or differential inputs, two gain ranges and unipolar or bipolar operation. The ADCs have a scan mode that will repeatedly cycle through all 8 multiplexer channels and can also be programmed to sequence through up to 16 addresses and configurations. The sequence can also be read back from internal memory. FEATURES ■ Flexible 8-Channel Multiplexer Single-Ended or Differential Inputs Two Gain Ranges Unipolar or Bipolar Operation ■ Scan Mode and Programmable Sequencer Eliminate Confi guration Software Overhead ■ Low Power: 3mW at 250ksps ■ 2.7V to 5.5V Supply Range ■ Internal or External Reference Operation ■ Parallel Output Includes MUX Address ■ Nap and Sleep Shutdown Modes ■ Pin Compatible up-grade 1.25Msps 10-Bit LTC1850 and 12-Bit LTC1851 APPLICATIONS ■ High Speed Data Acquisition ■ Test and Measurement ■ Imaging Systems ■ Telecommunications ■ Industrial Process Control ■ Spectrum Analysis |
Product Description
| Type | Description |
| ANSC PART# | ANSC- LTC1853IFW#PBF |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 400k |
| Number of Inputs | 8 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | PGA, Selectable Address |
| Operating Temperature |
-40°C ~ 85°C |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | LTC1853 |

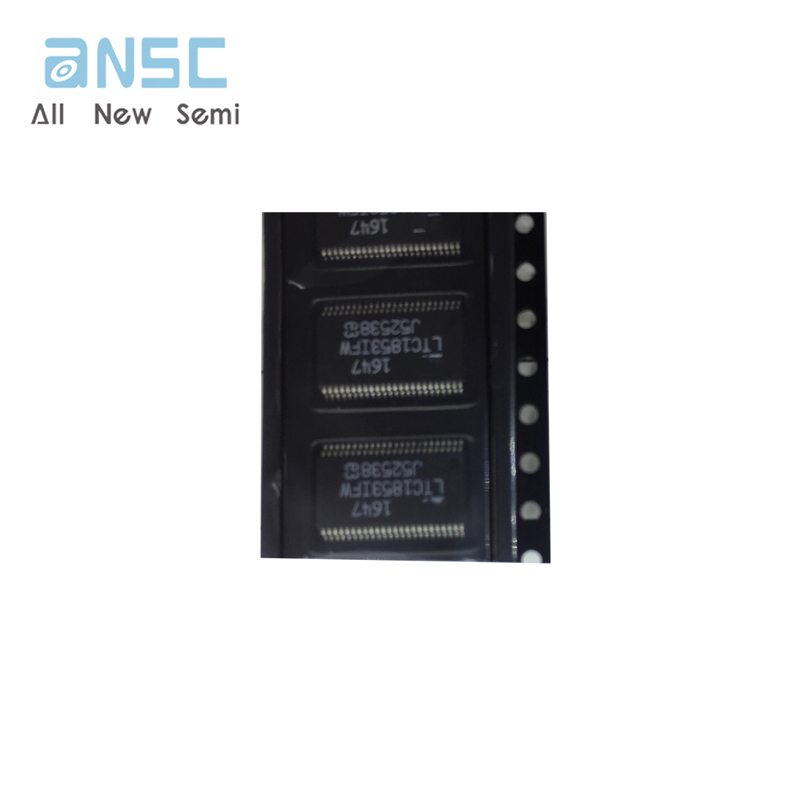

Product Photos

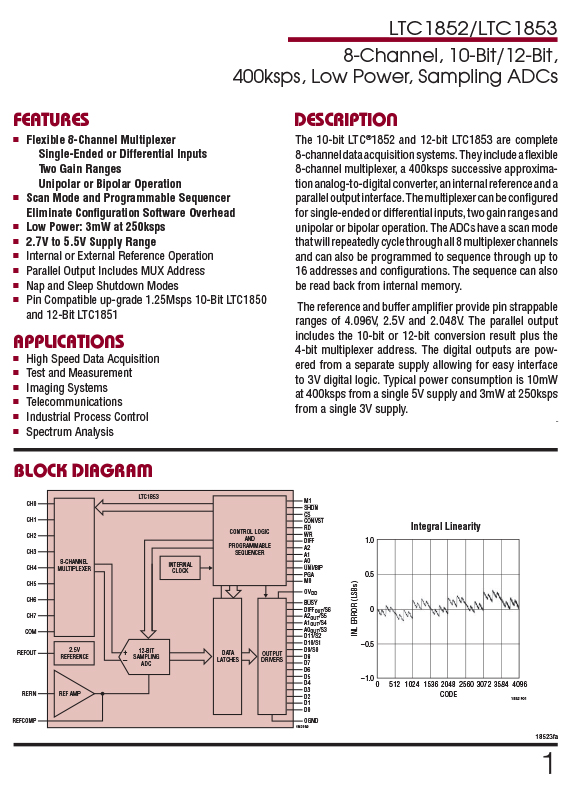

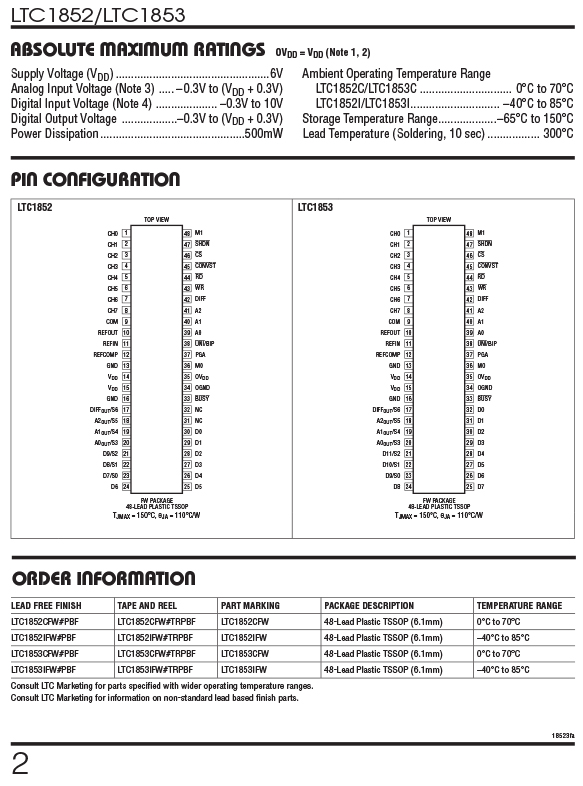

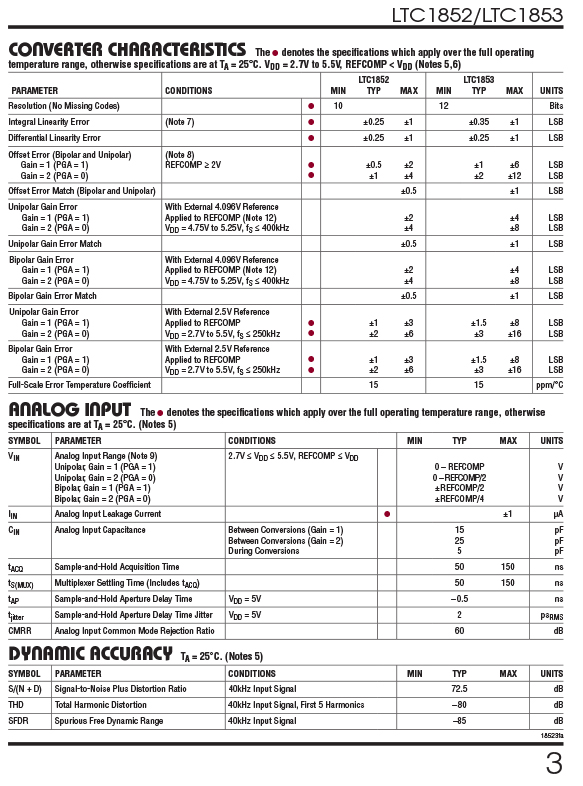

Product datasheet
For more information, please download
