Product Details
LMV931SN3T1G Overview
In order to protect the op amps, a SOT-23-5 Thin, TSOT-23-5 case is used. There are two types of operational amplifiers in this circuit. In the case of Tape & Reel (TR) cases, linear amplifier will be delivered. In recent months, the number of terminations has approached 5. It consists of a total of 5 pins in total. It would be helpful if you could remember that this op amp ic should be powered by an 2.7V battery. It has 5 pins that make up the linear amplifier. In terms of input offset voltage, operational amplifier rates 6mV. This electronic component is recommended to be mounted using the mounting type Surface Mount. It is recommended that this op amp ic be operated at a temperature no higher than -40°C~125°C for optimal performance. In order for this instrumentation amplifier to operate, the supply current needs to be between 116μA and 10 . Maintain 113dB as the voltage gain. As one of the many benefits of this buffer amplifier, it puts out Rail-to-Rail signals, which is one of the many benefits it offers. As a whole, there are 1 elements that make up this buffer amplifier.
LMV931SN3T1G Features
5 Pins
supply voltage of 2.7V
113dB voltage gain
Output Type: Rail-to-Rail
LMV931SN3T1G Applications
There are a lot of ON Semiconductor
LMV931SN3T1G Instrumentational OP Amps applications.
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Product Description

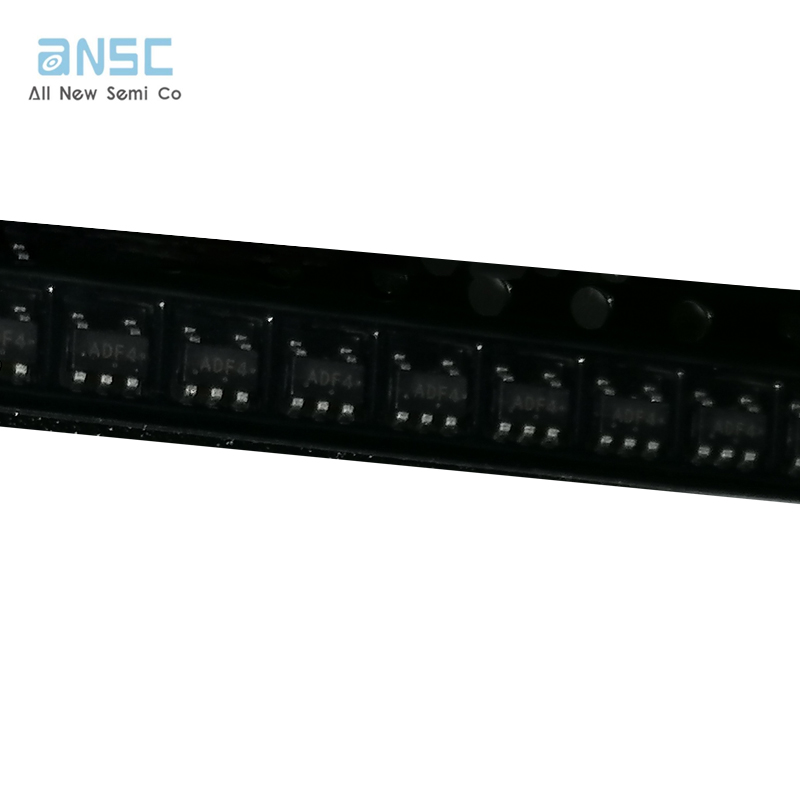

ON Semiconductor LMV931SN3T1G
100mA per Channel 1nA 50 dB Instrumentational OP Amps 1.8V~5.5V LMV931 5 Pins SOT-23-5 Thin, TSOT-23-5
ANSC PART# | ANSC-LMV931SN3T1G |
Part# | LMV931SN3T1G |
Type： | Integrated Circuits(ICs) |
Manufactor | ON Semiconductor |
DC | new |
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Linear Amplifiers Instrumentation, OP Amps, Buffer Amps |
Mfr | onsemi |
Series | - |
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel? |
Product Status | Active |
Amplifier Type | General Purpose |
Number of Circuits | 1 |
Output Type | Rail-to-Rail |
Slew Rate | 0.48V/μs |
Gain Bandwidth Product | 1.5 MHz |
Current - Input Bias | 1 nA |
Voltage - Input Offset | 1 mV |
Current - Supply | 116μA |
Current - Output / Channel | 100 mA |
Voltage - Supply Span (Min) | 1.8 V |
Voltage - Supply Span (Max) | 5.5 V |
Operating Temperature | -40°C ~ 125°C |
Mounting Type | Surface Mount |
Package / Case | SOT-23-5 Thin, TSOT-23-5 |
Supplier Device Package | 5-TSOP |
Base Product Number | LMV931 |

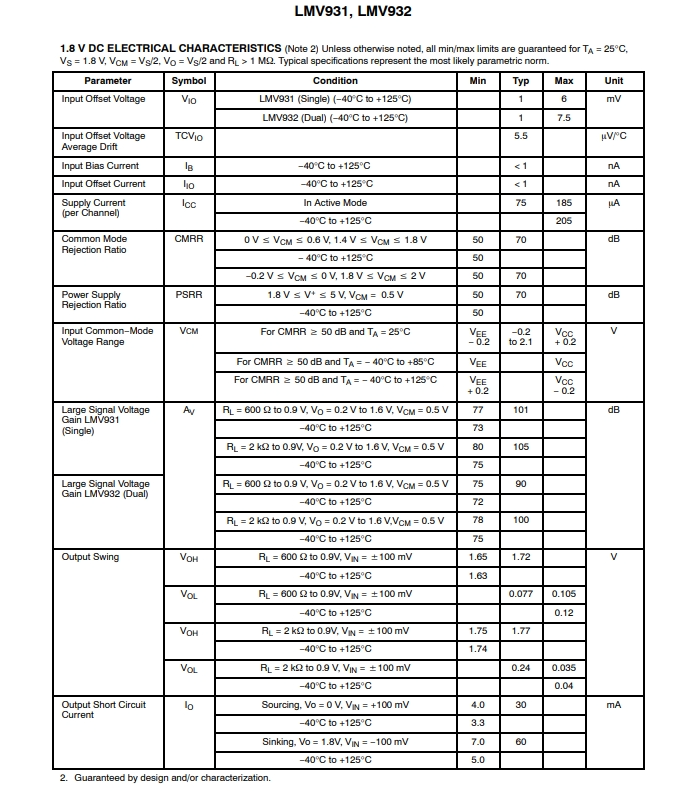

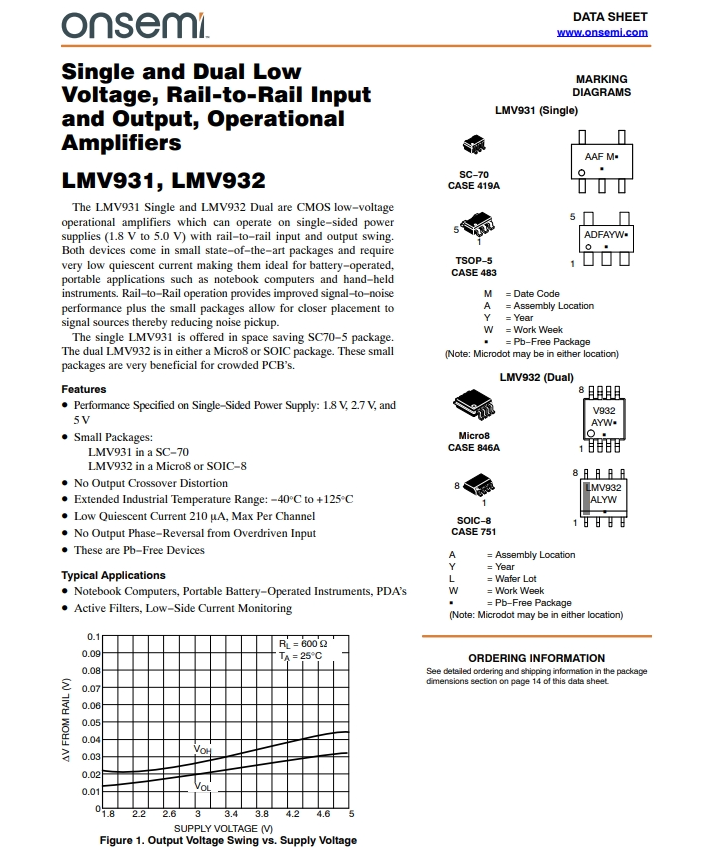

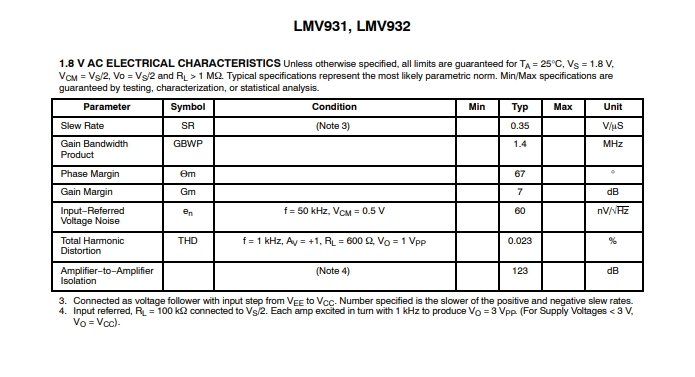

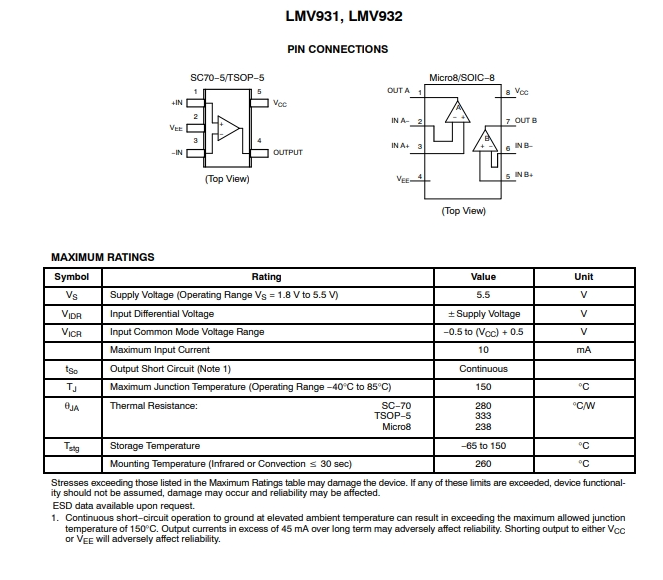

Product Data Book
For more information, please download
