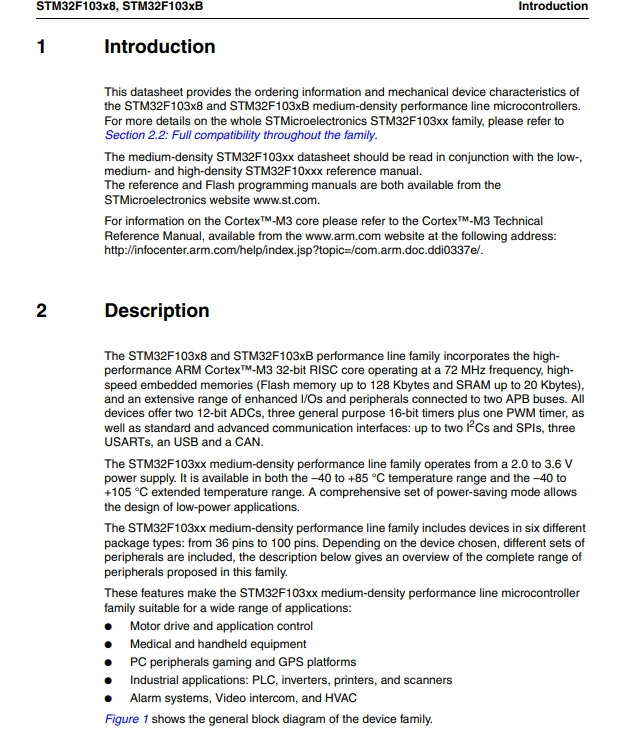

STM32F103RBT6 Description
:
The STM32F103RBT6 medium density performance microcontroller features an ARM CortexTM-M3 32 bit RISC CPU running at 72MHz, high-speed embedded storage (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and a wide range of upgraded I/Os and peripherals connected to two APB buses. Two 12-bit ADCs, three general-purpose 16-bit clocks, and one PWM timer are included, as well as common and sophisticated communication interfaces such as up to two I2Cs and SPIs, three USARTs, a USB, and a CAN.

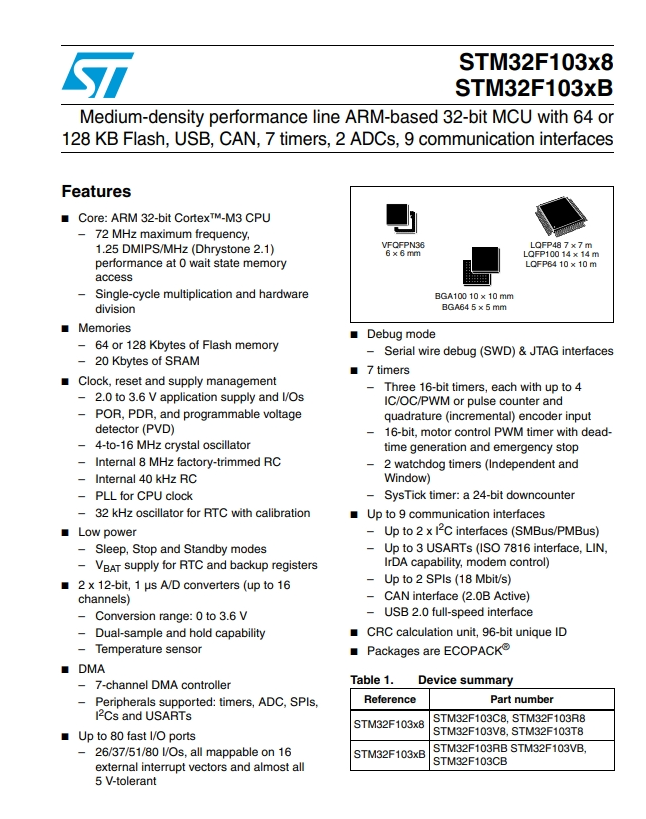

STM32F103RBT6 Features
:
■ Core: ARM 32-Bit Cortex?-M3 CPU
– 72 MHz Maximum Frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) Performance At 0 Wait State Memory Access
– Single-Cycle Multiplication And Hardware Division
■ Memories
– 64 Or 128 Kbytes Of Flash Memory
– 20 Kbytes Of SRAM
■ Clock, Reset And Supply Management
– 2.0 To 3.6 V Application Supply And I/Os
– POR, PDR, And Programmable Voltage Detector (PVD)
– 4-To-16 MHz Crystal Os cillator
– Internal 8 MHz Factory-Trimmed RC
– Internal 40 kHz RC
– PLL For CPU Clock
– 32 kHz Oscillator For RTC With Calibration
■ Low Power
– Sleep, Stop And Standby Modes
– VBAT Supply For RTC And Backup Registers
■ 2 x 12-Bit, 1 μs A/D Converters (Up To 16 Channels)
– Conversion Range: 0 To 3.6 V
– Dual-Sample And Hold Capability
– Temperature Sensor
■ DMA
– 7-Channel DMA Controller
– Peripherals Supported: Timers, ADC , SPIs, I2Cs And USARTs
■ Up To 80 Fast I/O Ports
– 26/37/51/80 I/Os, All Mappable On 16 External Interrupt Vectors And Almost All 5 V-Tolerant
■ Debug Mode
– Serial Wire Debug (SWD) & JTAG Interfaces
■ 7 Timers
– Three 16-Bit Timers, Each With Up To 4 IC/OC/PWM Or Pulse Counter And Quadrature (Incremental) Encoder Input
– 16-Bit, Motor Control PWM Timer With Dead Time Generation And Emergency Stop
– 2 Watchdog Timers (Independent And Window)
– SysTick timer: A 24-Bit Downcounter
■ Up To 9 Communication Interfaces
– Up To 2 x I2C Interfaces (SMBus/PMBus)
– Up To 3 USARTs (ISO 7816 Interface, LIN, IrDA Capability, Modem Control )
– Up To 2 SPIs (18 Mbit/s)
– CAN Interface (2.0B Active)
– USB 2.0 Full-speed Interface
■ CRC Calculation Unit, 96-bit Unique ID
■ Packages Are ECOPACK?

STM32F103RBT6 Applications
:
● PC
● Motor Drives
● Application Control
● Medical
● Handheld Equipment

Product Description

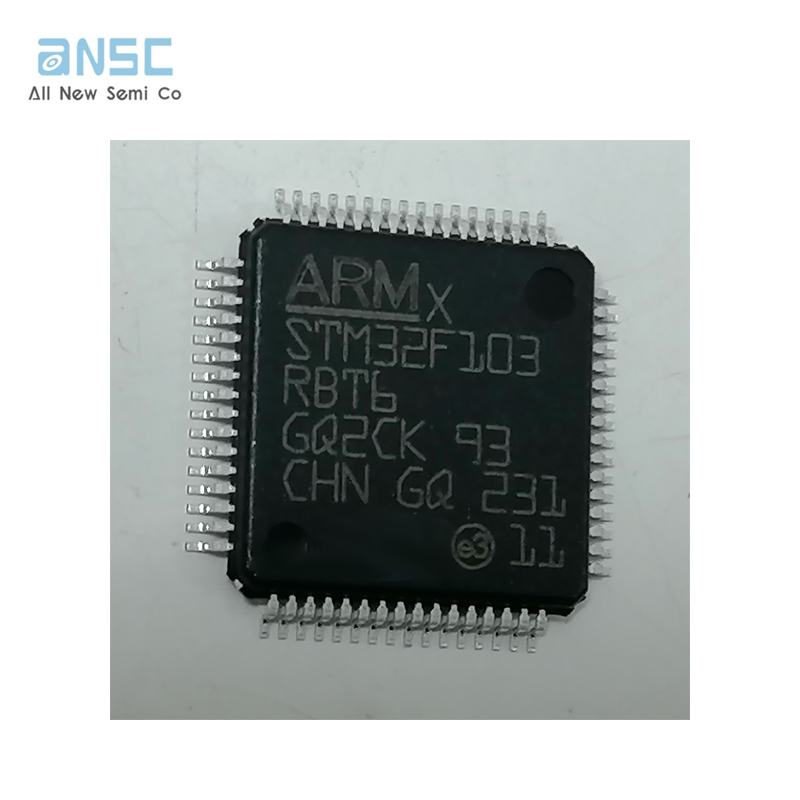

STMicroelectronics STM32F103RBT6

128KB 128K x 8 FLASH ARM? Cortex?-M3 32-Bit Microcontroller STM32F1 Series STM32F103 64 Pin 72MHz 3.3V 64-LQFP

ANSC PART#	ANSC- STM32F103RBT6
Part#	STM32F103RBT6
Type：	Integrated Circuits
Manufactor	STMicroelectronics
DC	new

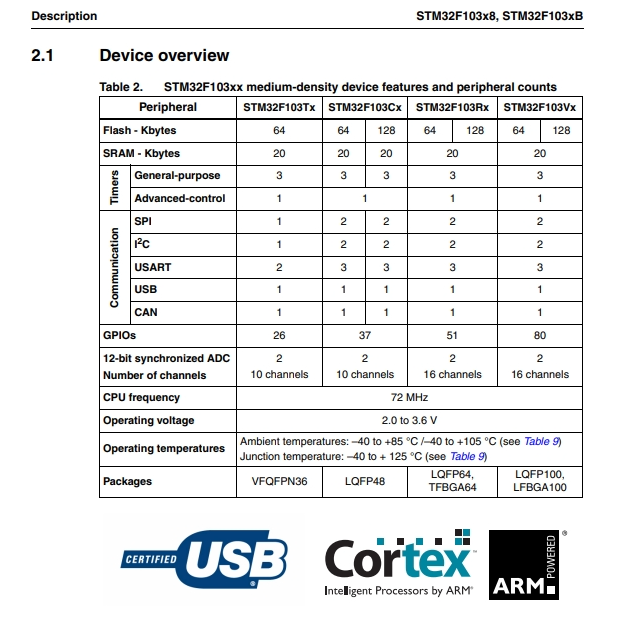

Specifications

Product Data Book

Please download more specifications for the product

STM32F103RBT6

Payment&Transportation

Official Certificate&Certificate

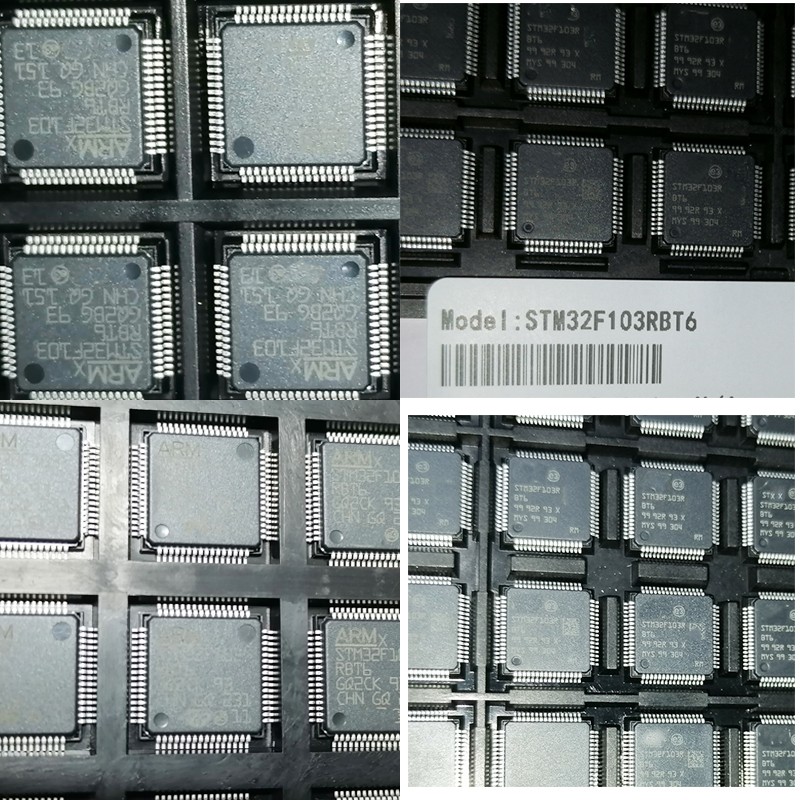

Standard packaging
