Product Details
| ■ GENERAL DESCRIPTION The XC6222 series is a highly accurate, low noise, high ripple rejection, low dropout, and low power consumption high speed CMOS voltage regulator. The series consists of a voltage reference, an error amplifier, a driver transistor, a current limiter, a thermal protection circuit, a reverse current protection circuit and a phase compensation circuit. The CE function enables the entire circuit to be placed in a stand-by state by inputting a low level signal to the CE pin. In this stand-by mode, the electric charge at the output capacitor (CL) will be discharged by the internal auto-discharge switch, and as a result the VOUT pin will quickly return to the VSS level. Dropout Voltage : 120mV @IOUT=300mA(VOUT=3.0V) Operating Voltage Range : 1.7V ~ 6.0V Output Voltages : 0.8V~5.0V (0.05V increments) Accuracy : +1% (VOUT＞2.0V) +0.02V (VOUT≦ 2.0V) Low Power Consumption : 100μ A (VOUT=3.0V) Stand-by Current : Less than 0.1μ A High Ripple Rejection : 65dB @ 1kHz Operating Temperature : -40℃ ~+85℃ Low ESR Capacitor : Ceramic capacitor Packages : USP-6C, SOT-25, SOT-89-5 Environmentally Friendly : EU RoHS Compliant, Pb Free ● USB Products ● CD/DVD/HDD drives ● Mobile phones ● Portable game consoles ● Camera modules ● Electronic dictionaries |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- XC6228D332VR-G |
| Part# | XC6228D332VR-G |
| Type： | Integrated Circuits |
| Manufactor | Original |
| DC | new |
| Part Status | Active |
| Product packaging | SOT23-5 |

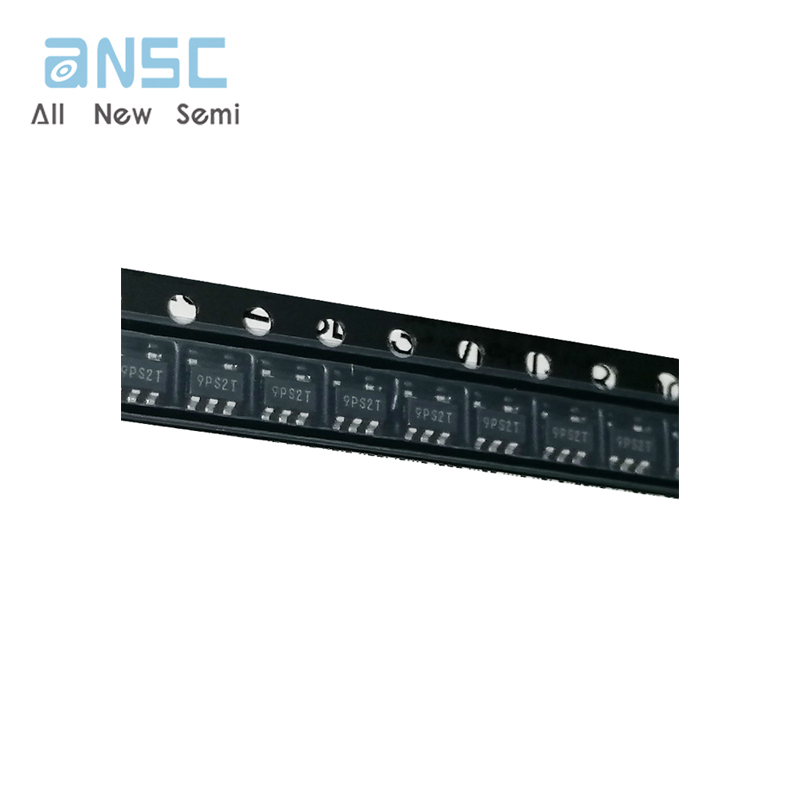

Product Photos

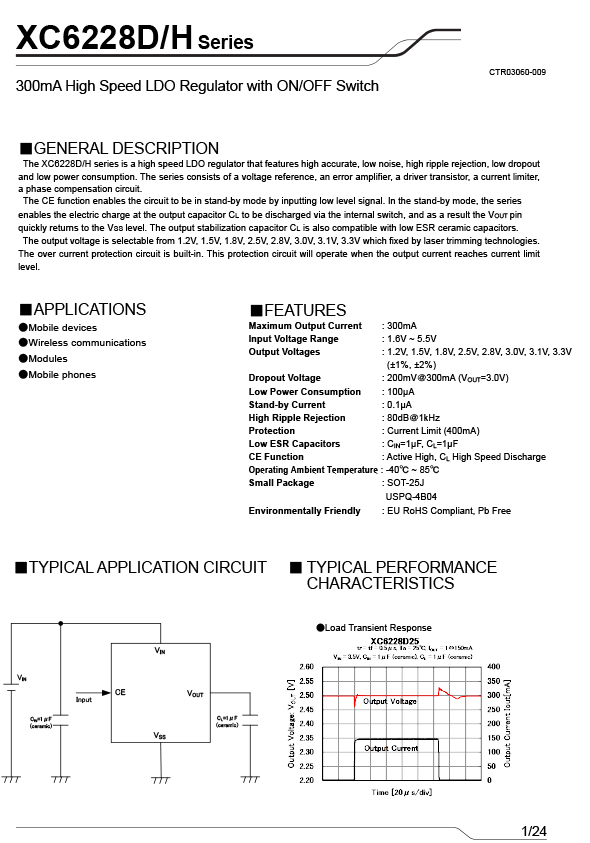

Product datasheet
For more information, please download
