Product Details
STM32F103R8T6 Description
The Cortex-M3 processor of STM32F103R8T6 microcontrollers has a maximum CPU speed of 72 MHz. The portfolio includes Flash memory with motor control peripherals, a USB full-speed interface, and CAN.
STM32F103R8T6 Features
On-board USB B socket
On-board 20-pin JTAG
UEXT connector allows connection to MOD-IO (73-0241), MOD-TC (73-0244), etc
On-board DB9 serial interface
On-board CAN screw terminal connector
–40 to +85°C temperature range
Dimensions 61 x 34mm (2.4 x 1.3in)
STM32F103R8T6 Applications
Sensing & Instrumentation
Consumer Electronics
Medical
Data Acquisition
Low-cost Sensor integration
Low power Embedded devices.
Small data retention related purposes
Product Description
STMicroelectronics STM32F103R8T6
Mainstream Performance line, Arm ARM? Cortex?-M3 STM32F1
Microcontroller IC 32-Bit Single-Core 72MHz 64KB (64K x 8) FLASH
64KB 64K x 8 FLASH ARM? Cortex?-M3 32-Bit Microcontroller STM32F1 Series STM32F103 64 Pin 72MHz 3.3V 64-LQFP
| ansc Part # | ANSC- STM32F103R8T6 |
| Part# | STM32F103R8T6 |
| Type： | Integrated Circuits (ICs)EmbeddedMicrocontrollers |
| Manufactor | STMicroelectronics |
| DC | new |
| Package / Case | 64-LQFP |
| Supplier Device Package | Tray |
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | STMicroelectronics |
| Series | STM32F1 |
| Package | Tray |
| Product Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | ARM廬 Cortex廬-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 72MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 51 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 20K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40擄C ~ 85擄C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Base Product Number | STM32F103 |

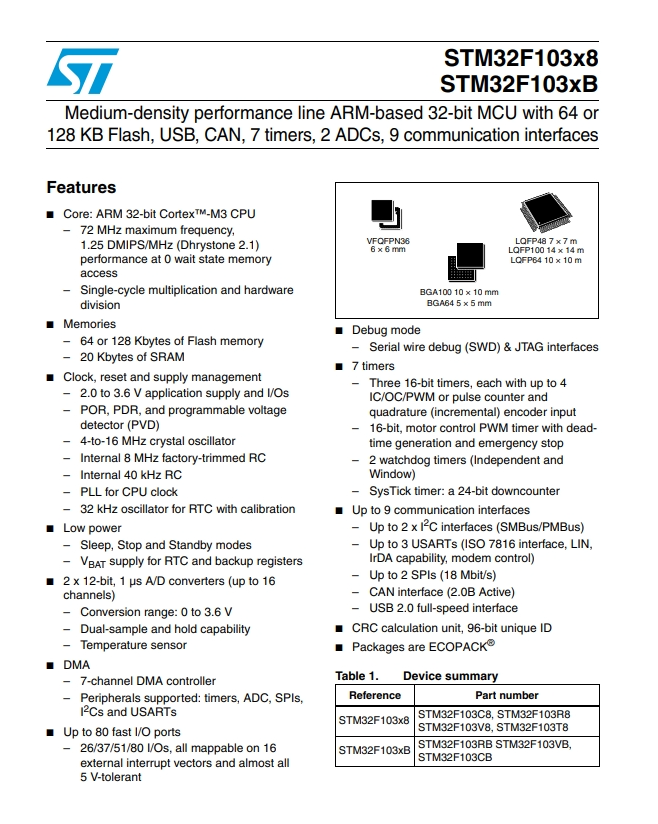

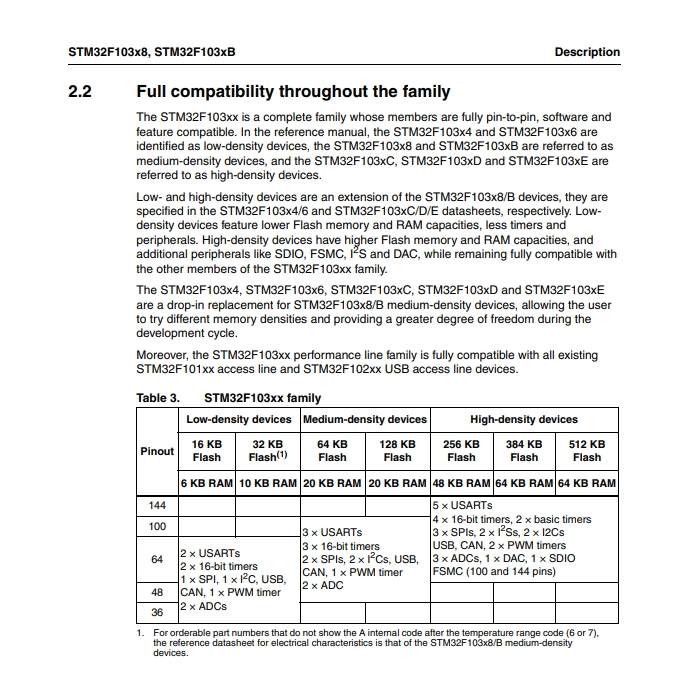

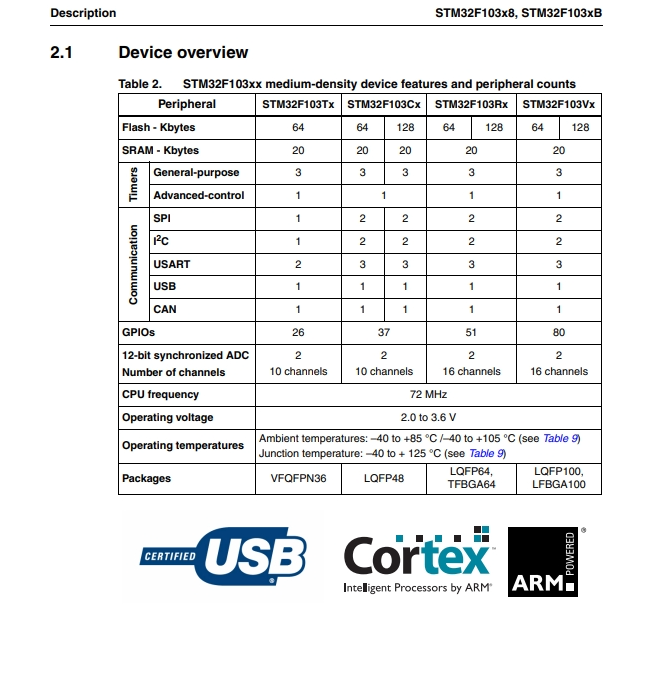

Product Data Book
Please download the more product specifications
