Product Details
EPM3064ATC100-10 Overview
There are 64 macro cells. A macro cell is a cell in a mobile phone network that provides radio coverage through the use of a high-power cell site (tower, antenna or mast).It is contained in package [0].The device is programmed with 66 I/Os.This electrical part has a terminal position of QUAD, which serves as an important point of access for passengers and freight.There is a part included in Programmable Logic Devices.Tray is the packaging method.To ensure reliability, the device operates at a temperature of 0°C ~ 70°C (TA).It is recommended that the chip be mounted by Surface Mount.As part of the MAX? 3000A series, it is a type of FPGA.This device is also capable of displaying YES.In accordance with the EPM3064, its related parts are listed.As a building block for digital circuits, there are 1250 gates.A total of 4 logic elements/blocks are present.There is 2.5/3.3,3.3 V power supply available for it.A programmable logic type is categorized as EE PLD.
EPM3064ATC100-10 Features
100-TQFP package
66 I/Os
The operating temperature of 0°C ~ 70°C (TA)
2.5/3.3,3.3 V power supplies
EPM3064ATC100-10 Applications
There are a lot of ALTERA
EPM3064ATC100-10 CPLDs applications.
Timing control
Interface bridging
I/O expansion
Discrete logic functions
Bootloaders for FPGAs
Address decoders
Custom state machines
Digital systems
Portable digital devices
Handheld digital devices
Product Description
Type | Description |
|---|---|
| ANSC PART# | ANSC - EPM3064ATC100-10 |
Category | Integrated Circuits (ICs) Embedded CPLDs (Complex Programmable Logic Devices) |
Manufacturer | Altera |
Series | MAX? 3000A |
Packaging | Tray |
Part Status | Active |
DigiKey Programmable | Not Verified |
Programmable Type | In System Programmable |
Delay Time tpd(1) Max | 10 ns |
Voltage Supply - Internal | 3V ~ 3.6V |
Number of Logic Elements/Blocks | 4 |
Number of Macrocells | 64 |
Number of Gates | 1250 |
Number of I/O | 66 |
Operating Temperature | 0°C ~ 70°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 100-TQFP |
Supplier Device Package | 100-TQFP (14x14) |
Actual image of the product

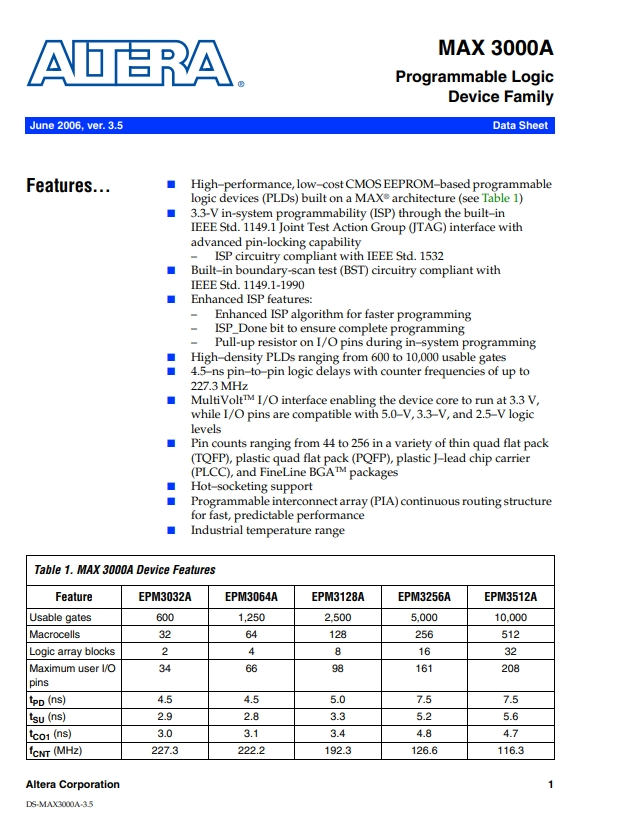

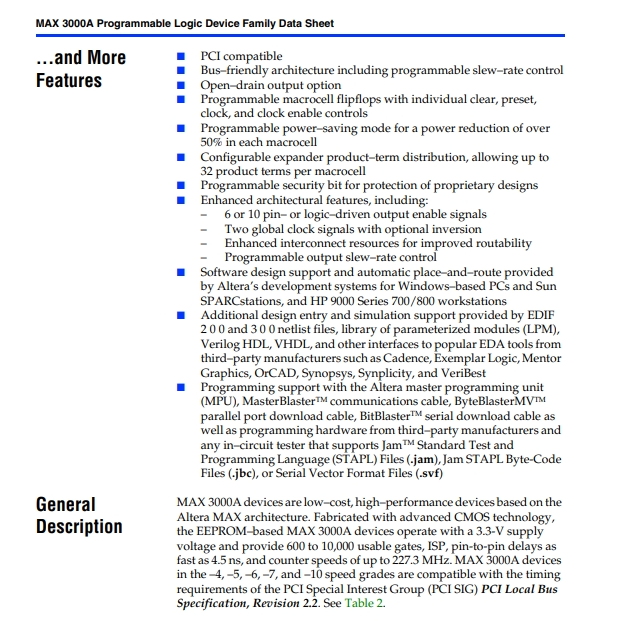

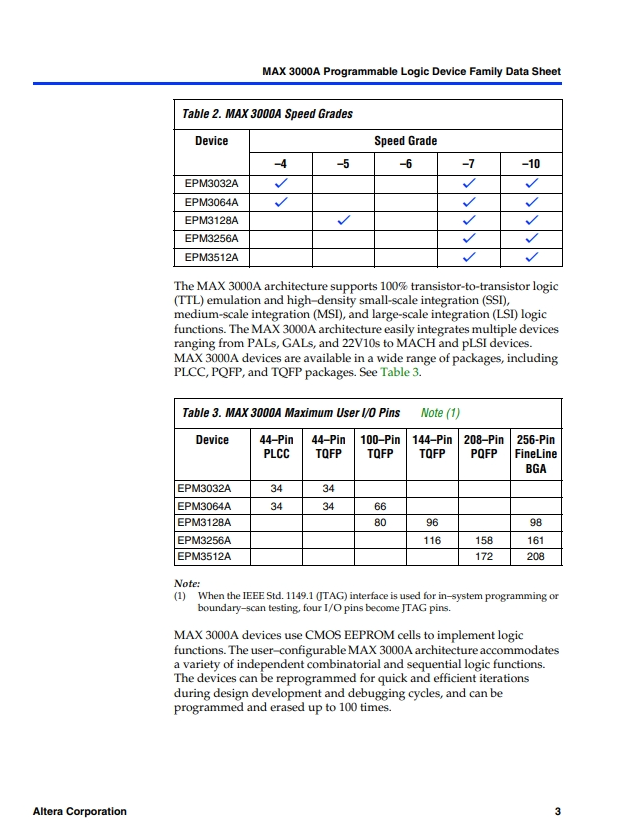

Product datasheet
For more information, please download
EPM3064ATC100-10
