MIC49150YMM-TR Overview
An Tape & Reel (TR) case is included with the delivery. There is a 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) case with the integrated voltage regulator. In terms of output type, Adjustable is what the Regulator IC produces. The electronic component implements 1 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Surface Mount in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at -40°C~125°C degrees. In this case, the output function that is configured for this regulator IC is Positive. There is an 1.5Amp current output on this voltage regulator IC. It has a total of 8 pins on IC voltage regulator. In order to ensure prompt, adequate, and prompt performance, this regulator has 1 outputs in total. In terms of its dropout voltage, it is 10 volts. There are 8 pins on the chip. It is MIC49150 for this regulator, just for your information. In this instance, we are dealing with a typical PMIC - Power Management ICs-shaped component. It is worth mentioning that the regulator type for this regulator IC is ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR. In order to meet the operating requirements of the regulator, its maximal output current reaches 1.5A. This regulator IC is a part of the -- Series. Utilize the regulator IC when the temperature is below 125°C. It is recommended that the chip be operated at a temperature no lower than -40°C operating temperature.
MIC49150YMM-TR Features
280mV dropout voltage
PMIC - Power Management ICs subtageroy
The maximum operating temperature of -40°C
MIC49150YMM-TR Applications
There are a lot of Microchip Technology
MIC49150YMM-TR Linear Voltage Regulators applications.
Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
Digital TV
Smartcard
Industrial equipment
DVD and CD-ROM drive
Product Description
ANSC PART# | ANSC- MIC49150YMM-TR |
Part# | MIC49150YMM-TR |
Type: | Integrated Circuits |
Manufactor | Original |
DC | new |
Part Status | Active |

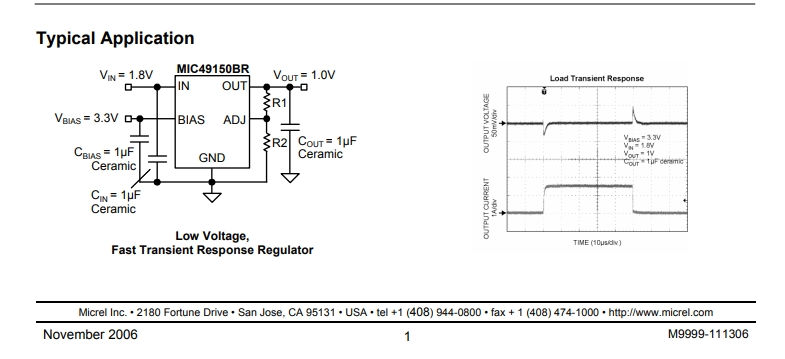

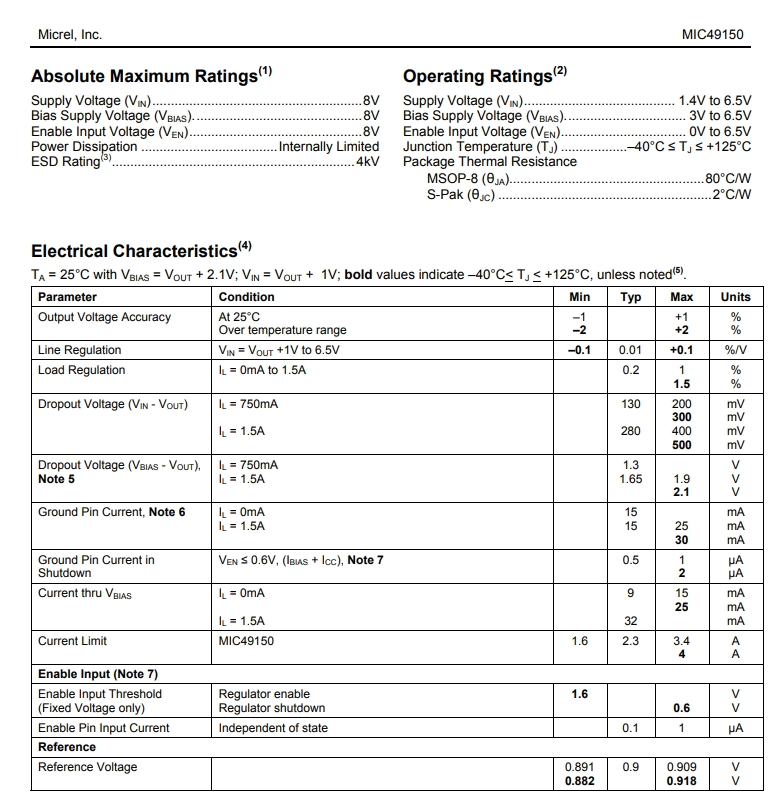

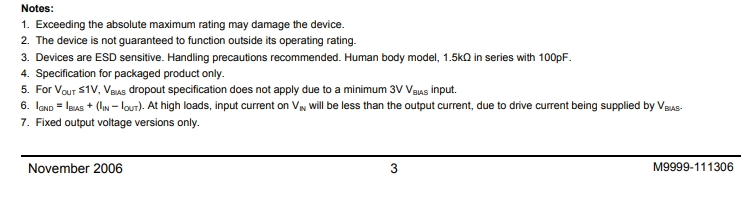

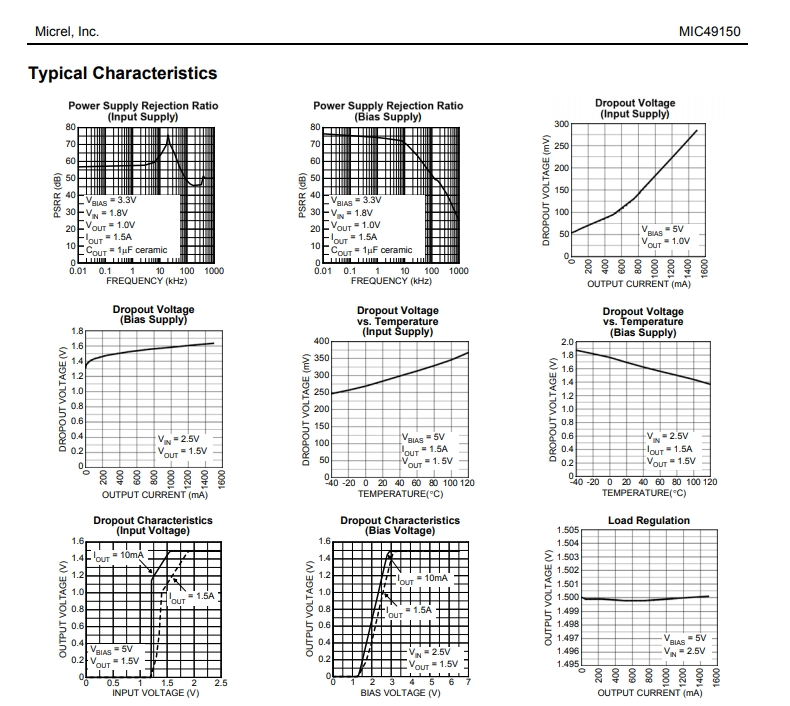

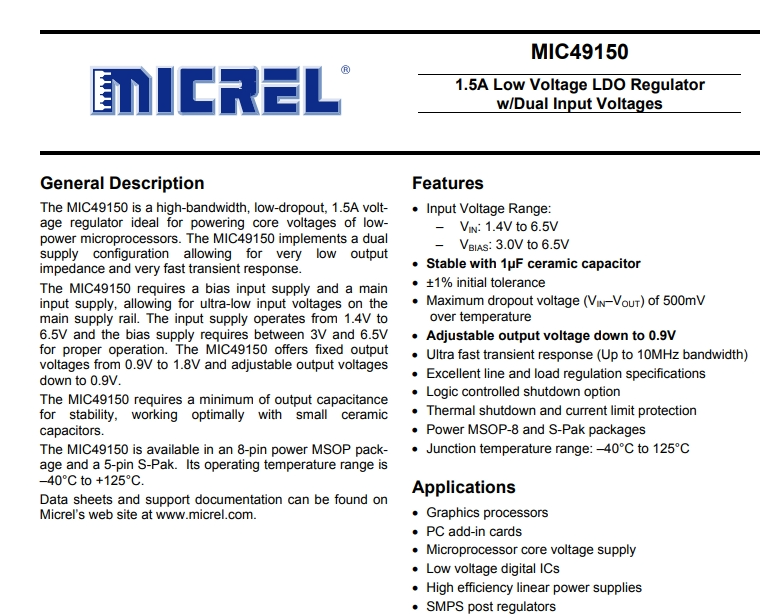

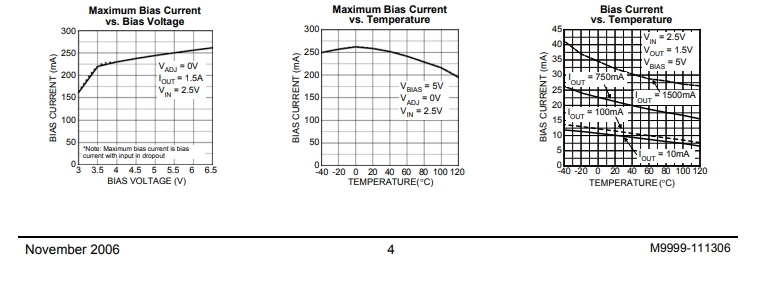

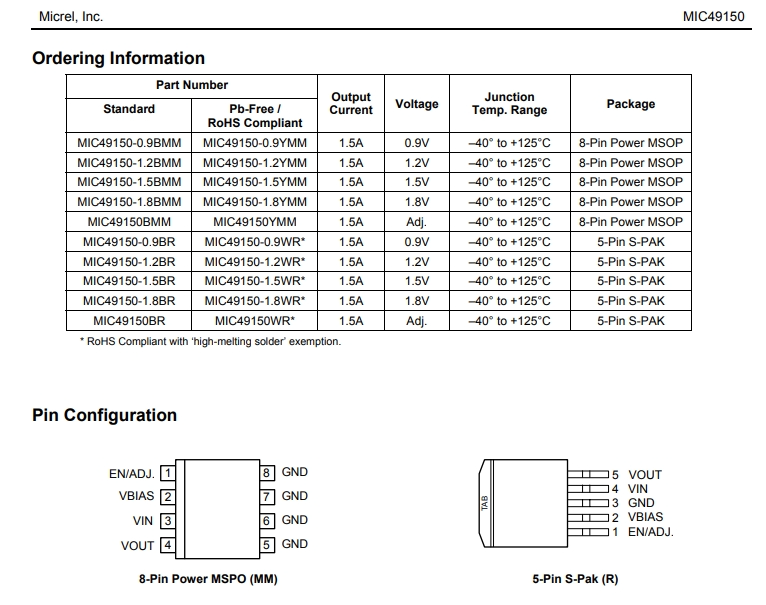

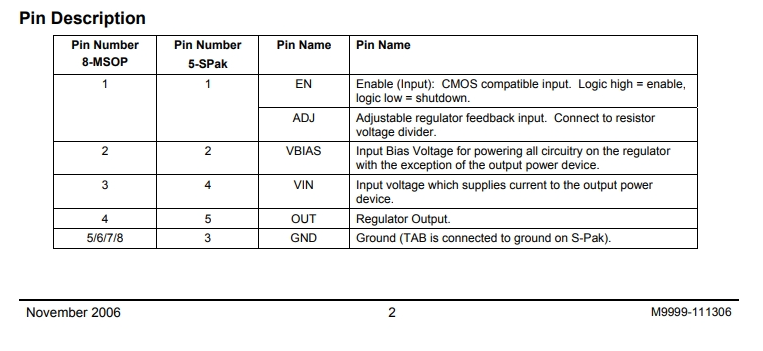

Actual image of the product
Product Attributes
Type | Description |
|---|---|
Category | Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators |
Mfr | - |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Output Configuration | Positive |
Output Type | Adjustable |
Number of Regulators | 1 |
Voltage - Input (Max) | 6.5V |
Voltage - Output (Min/Fixed) | 0.9V |
Voltage - Output (Max) | 5V |
Voltage Dropout (Max) | 0.5V @ 1.5A |
Current - Output | 1.5A |
PSRR | - |
Control Features | Enable |
Protection Features | Over Current, Over Temperature |
Operating Temperature | -40°C ~ 125°C |
Mounting Type | Surface Mount |
Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
Supplier Device Package | 8-MSOP |
Base Product Number | MIC49150 |
Product Data Book
Please download the more product specifications
