Product Descriptions

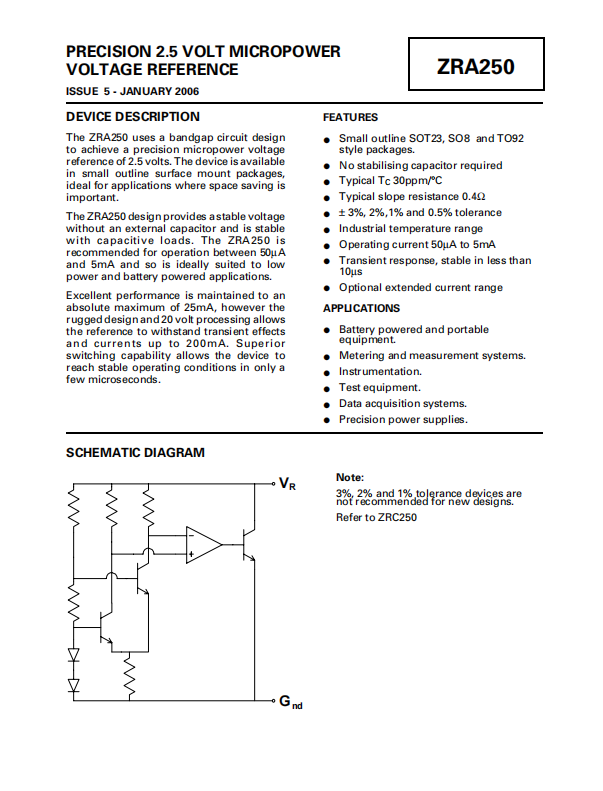

The ZRA250 uses a bandgap circuit design to achieve a precision micropower voltage reference of 2.5 volts. The device is available in small outline surface mount packages, ideal for applications where space saving is important.

The ZRA250 design provides a stable voltage without an external capacitor and is stable with capacitive loads. The ZRA250 is recommended for operation between 50μA and 5mA and so is ideally suited to low power and battery powered applications.

Excellent performance is maintained to an absolute maximum of 25mA, however the rugged design and 20 volt processing allows the reference to withstand transient effects and currents up to 200mA. Superior switching capability allows the device to

reach stable operating conditions in only a few microseconds.

Product FEATURES

? Small outline SOT23, SO8 and TO92 style packages.

? No stabilising capacitor required

? Typical TC 30ppm/°C

? Typical slope resistance 0.4?

? ± 3 percent, 2 percent,1percent and 0.5percent tolerance

? Industrial temperature range

? Operating current 50μA to 5mA

? Transient response, stable in less than 10μs

? Optional extended current range

Product APPLICATIONS

? Battery powered and portable equipment.

? Metering and measurement systems.

? Instrumentation.

? Test equipment.

? Data acquisition systems.

? Precision power supplies.

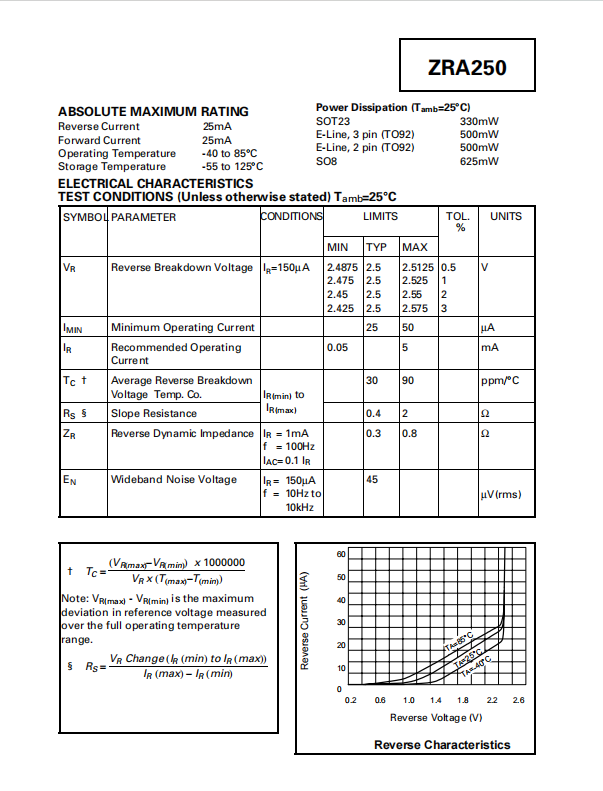

Specifications

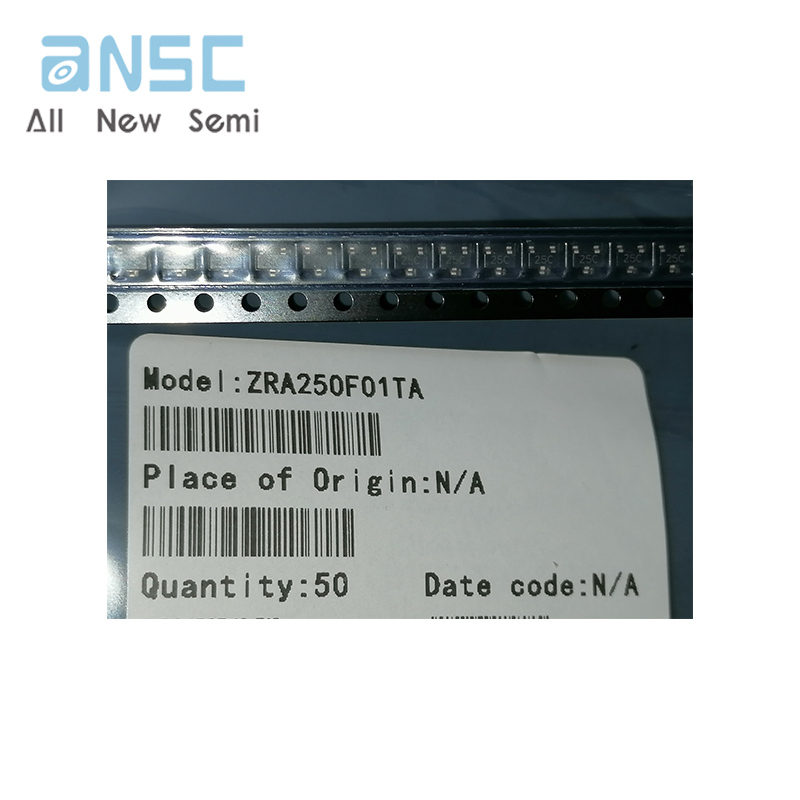

Actual product photos

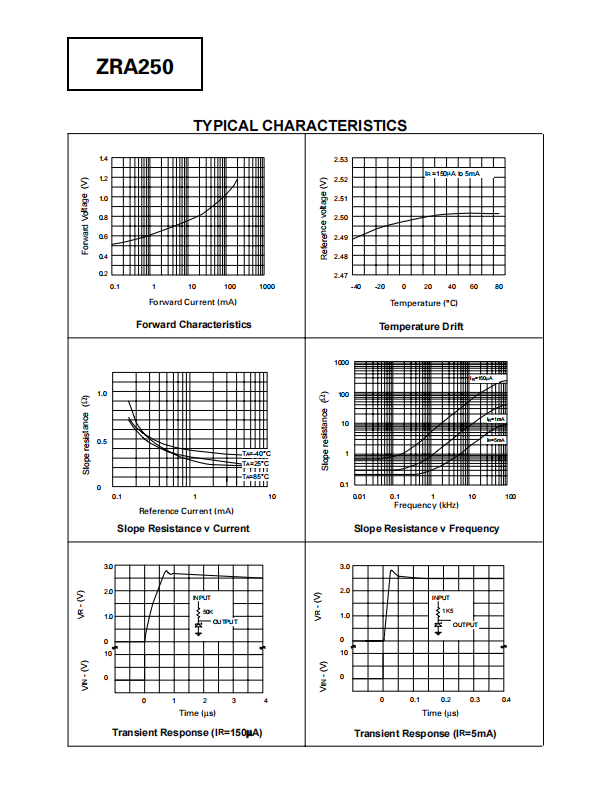

Product Data Book：

For more product information, please download the PDF
